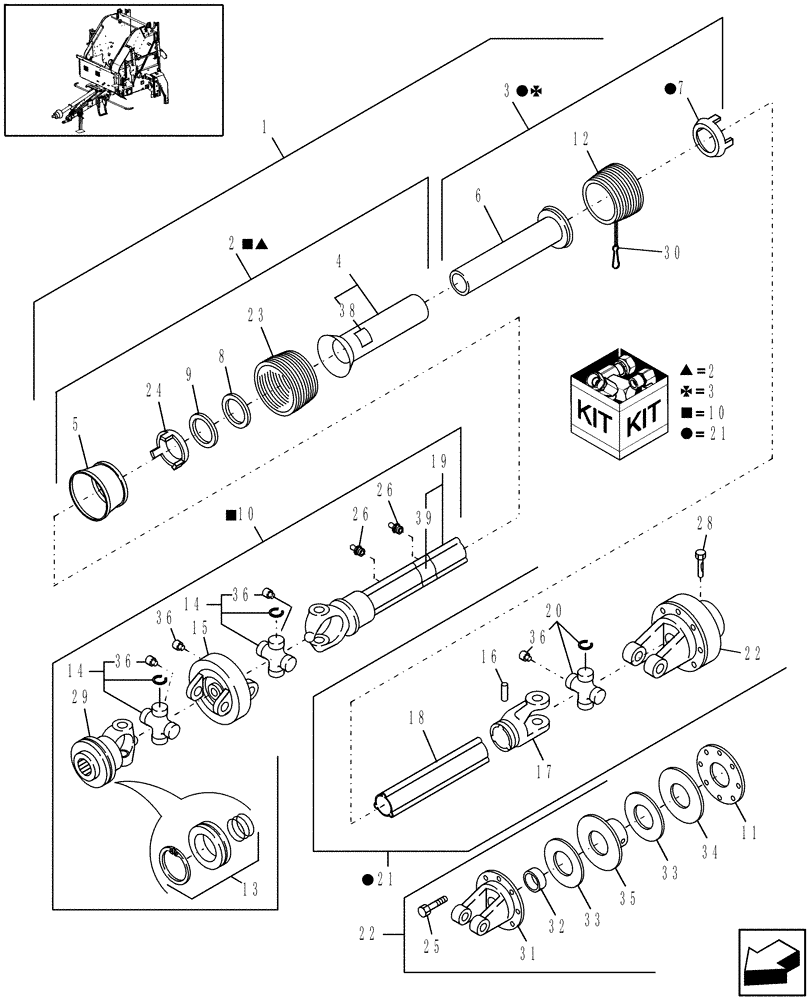

Запчасти Case IH RBX562 (01.10) - POWER TAKE OFF, 540 RPM, SLIP CLUTCH, NORTH AMERICA (01) - POWER TAKE OFF

1

86604848

PTO

540 RPM

1шт.

2

86979217

KIT

Shield, Front

1шт.

3

86979218

KIT

Shield, Rear

1шт.

4

NSS

NOT SOLD SEPARAT

Cone, Outer

1шт.

5

NSS

NOT SOLD SEPARAT

Shield

1шт.

6

NSS

NOT SOLD SEPARAT

Cone, Inner

1шт.

7

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

8

86979199

BEARING,95.5 mm ID x 115.5 mm OD x 33 mm

1шт.

9

NSS

NOT SOLD SEPARAT

Cone

1шт.

10

86979215

PTO SHAFT

Front, 1-3/8", 6 Tooth Spline, 540 RPM Standard

1шт.

10

87027319

PTO

Front, 1-3/8", 21 Spline, 1000 RPM Optional

1шт.

Required to convert 540 RPM Units to 1000 RPM Units for 1-3/8" Drive Shaft

1шт.

10

87027320

PTO

Front, 1-3/4", 20 Spline, 1000 RPM Optional

1шт.

Required to convert 540 RPM Units to 1000 RPM Units for 1-3/4" Drive Shaft

1шт.

11

86979205

BELLEVILLE SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

13

87018800

KIT

Ball Collar

1шт.

14

86979188

SPIDER,30.2mm Cap Dia, 92mm L, Grease-able

Cross

2шт.

15

86979189

BODY

1шт.

16

86979202

PIN

Spring

1шт.

17

86979192

YOKE

1шт.

18

86979190

TUBE,1070 mm L

Drive

1шт.

19

86979191

YOKE,1110.50 mm L

1шт.

20

86979193

SPIDER

1шт.

21

86979216

PTO SHAFT

Rear

1шт.

22

86979194

CLUTCH

Slip

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

86979197

SHIELD

1шт.

25

87012736

BOLT AND NUT

Includes: Nut

8шт.

26

87012758

LUBE NIPPLE

LUBRICATOR

2шт.

27

PL

PROCURE LOCALLY

Screw

17шт.

Not Illustrated

1шт.

28

86625865

KIT

Tapered

1шт.

29

86979187

YOKE

Universal Joint, 1-3/8", 6 Tooth Spline, Standard, 540 RPM

1шт.

29

86705060

YOKE

Universal Joint, 1-3/8", 21 Spline, Optional, 1000 RPM

1шт.

29

86705059

YOKE

Universal Joint, 1-3/4", 20 Spline, Optional, 1000 RPM

1шт.

30

86979198

CHAIN,229mm L

1шт.

31

86979201

YOKE

1шт.

32

86984909

BUSHING

1шт.

33

86625862

DISC

2шт.

34

86625863

THRUST PLATE

1шт.

35

86625864

HUB

1шт.

36

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

38

849471

DANGER DECAL

English

1шт.

38

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

39

849472

DANGER DECAL

English

1шт.

39

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.
