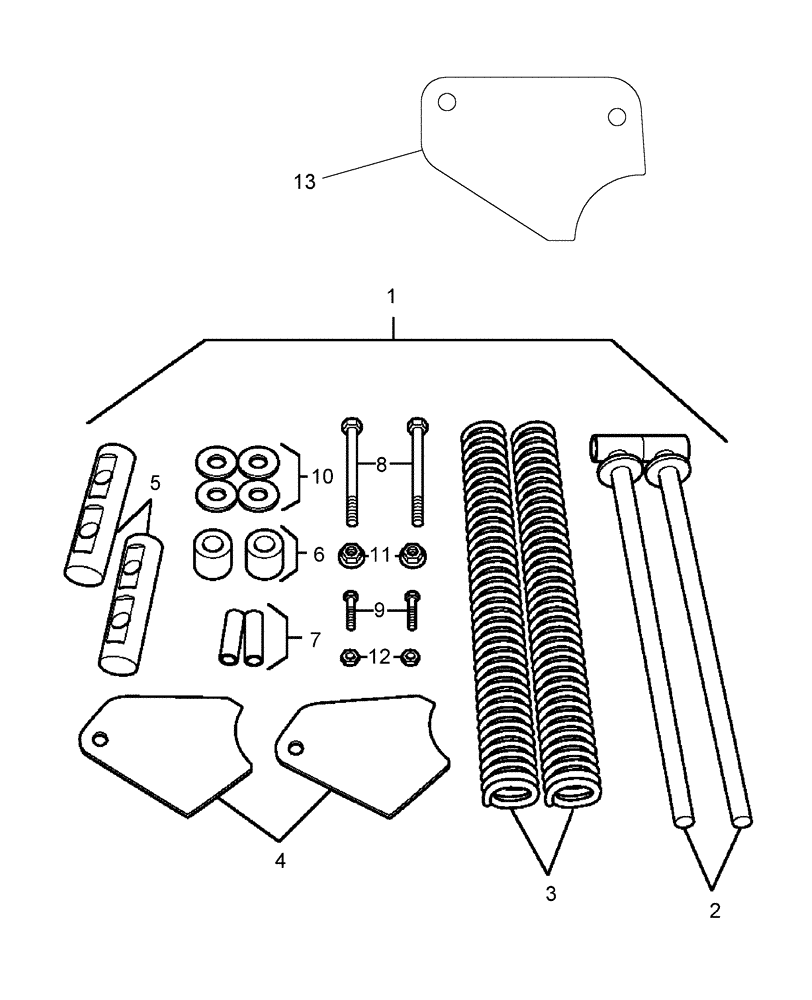

Запчасти Case IH RBX562 (18.96) - DOUBLE SPRING KIT (18) - ACCESSORIES

1

87040143

DIA KIT, HARVESTER

Double Spring, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87028071

ROD ASSY.

2шт.

3

87029355

SPRING,Compression, 2.14" OD x 19.9" L

2шт.

4

87037451

SUPPORT

2шт.

Welding Required

1шт.

5

87037447

PIN

2шт.

6

86562970

BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L

4шт.

7

87022950

SPACER,12.83mm ID x 19.05mm OD x 58.75mm L

2шт.

8

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

2шт.

9

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

4шт.

10

141781

WASHER

8шт.

11

232-4148

NUT,1/2"-13, GC

2шт.

12

232-4145

LOCK NUT,5/16"-18, GC

4шт.

13

87381148

PLATE

4шт.

Welding Required

1шт.

Used to Convert Units with a Narrow Bale Ramp to A Wide Bale Ramp. Refer to ASSIST for Installation Instructions.

1шт.
