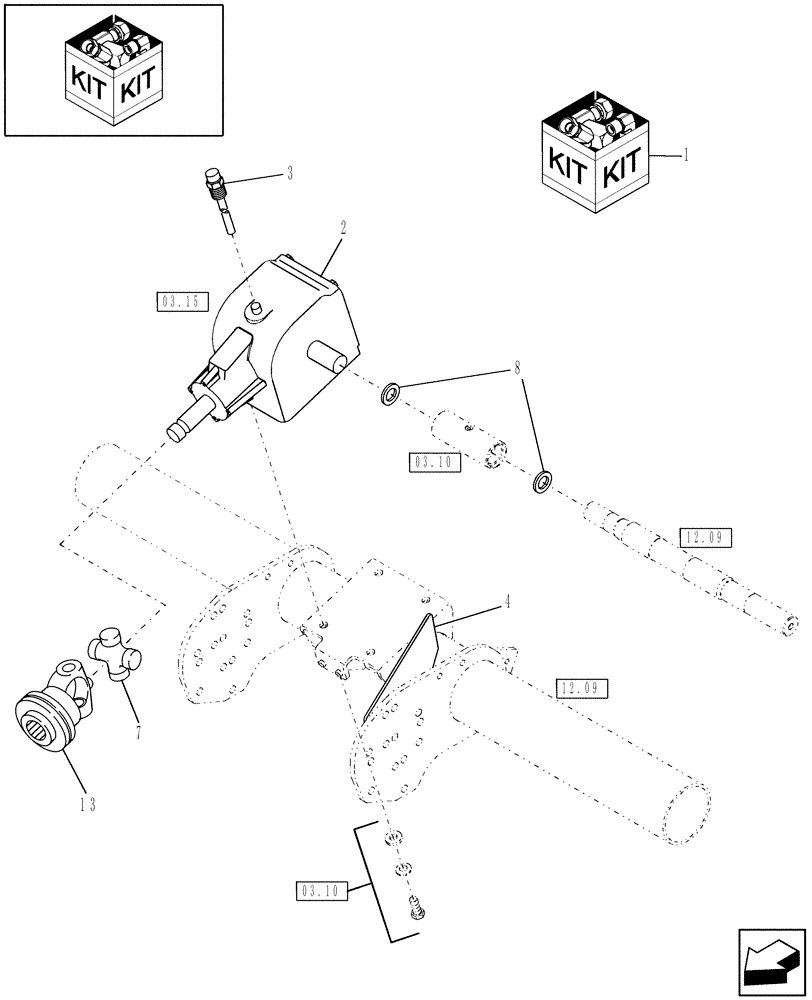

Запчасти Case IH RBX562 (18.91) - GEARBOX CONVERSION KIT, 1000 TO 540 RPM (18) - ACCESSORIES

1

86643864

DIA KIT, HARVESTER

Gearbox Conversion, 1000 RPM to 540 RPM, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87025454

GEARBOX

540 RPM

1шт.

Manufacturer's I.D. 321.003.00 Stamped in Top of Gearbox Housing

1шт.

2

87391830

GEARBOX

540 RPM

1шт.

Manufacturer's I.D. #9.321.803.10 Stamped in Top of Gearbox Housing

1шт.

87391830R

REMAN-GEARBOX

RBX562,

1шт.

87391830C

CORE-GEARBOX

Return Number

1шт.

3

86626270

DIPSTICK,129mm L

1шт.

4

86637820

PLATE

Fixture

1шт.

7

86625850

U-JOINT SPIDER

1шт.

8

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

1шт.

12

87041061

WARNING DECAL

540 RPM, English

1шт.

Not Illustrated

1шт.

12

87042013

DECAL

WARNING, 540 RPM, French

1шт.

Not in Kit

1шт.

13

86625841

YOKE

1-3/8" - 6 Splines

1шт.
