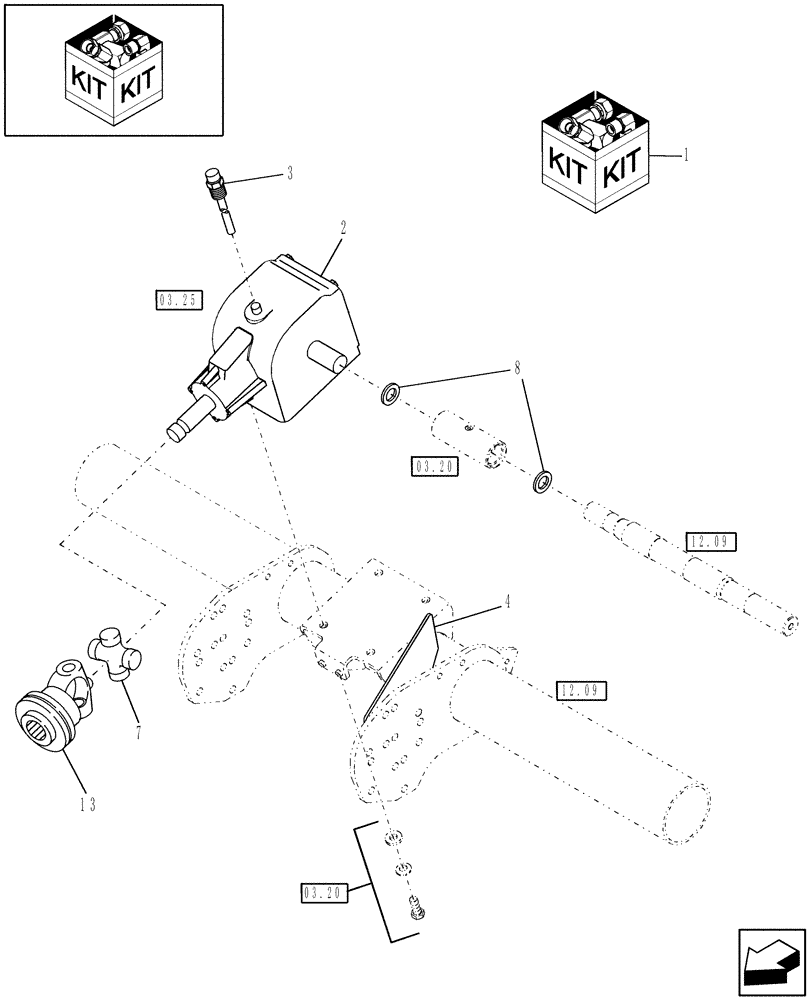

Запчасти Case IH RBX562 (18.90) - GEARBOX CONVERSION KIT, 540 TO 1000 RPM (18) - ACCESSORIES

1

86643867

DIA KIT, HARVESTER

Gearbox Conversion, 540 RPM to 1000 RPM, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87025453

GEARBOX

1000 RPM

1шт.

Manufacturer's I.D. 322.001.00 Stamped in Top of Gearbox Housing

1шт.

2

87344585

GEARBOX

1000 RPM

1шт.

Manufacturer's I.D. 322.002.00 Stamped in Top of Gearbox Housing

1шт.

87344585R

REMAN-PTO GEARBOX A.

RBX562,

1шт.

87344585C

CORE-PTO GEARBOX A.

Return Number

1шт.

3

86626271

DIPSTICK

1шт.

4

86637820

PLATE

Fixture

1шт.

7

86979188

SPIDER,30.2mm Cap Dia, 92mm L, Grease-able

1шт.

8

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

1шт.

12

87049205

WARNING DECAL

1000 RPM, English

1шт.

Not Illustrated

1шт.

12

87053157

DECAL

WARNING, 1000 RPM, French

1шт.

Not in Kit

1шт.

13

86705060

YOKE

1000 RPM, 1-3/8" - 21 Splines

1шт.
