(18.48) - SCRAPER KIT, SERPENTINE ROLL

Запчасти Case IH RBX562 (18.48) - SCRAPER KIT, SERPENTINE ROLL (18) - ACCESSORIES

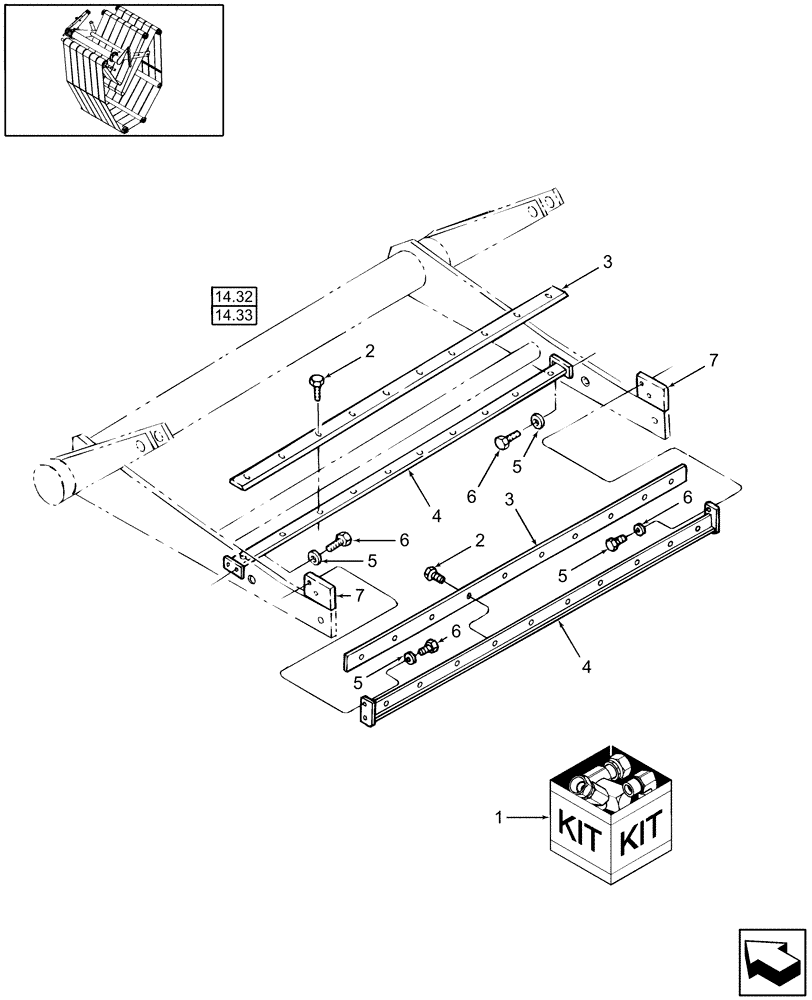

Схема запчастей Case IH RBX562 - (18.48) - SCRAPER KIT, SERPENTINE ROLL (18) - ACCESSORIES
2
6
6
7
5
5
14.32
4
5
6
3
7
6
14.33
3
4
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86643773

DIA KIT, HARVESTER

Serpentine Scraper, Includes: Ref. 2 - 7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

905-8020

BOLT,Hex Flg, M8 x 20mm

20шт.

3

86637004

SCRAPER BLADE

2шт.

4

87010761

ANGLE

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

7

86637019

SUPPORT

2шт.
