(18.27) - LEAF SPRING TWINE ARM CONVERSION KIT

Запчасти Case IH RBX562 (18.27) - LEAF SPRING TWINE ARM CONVERSION KIT (18) - ACCESSORIES

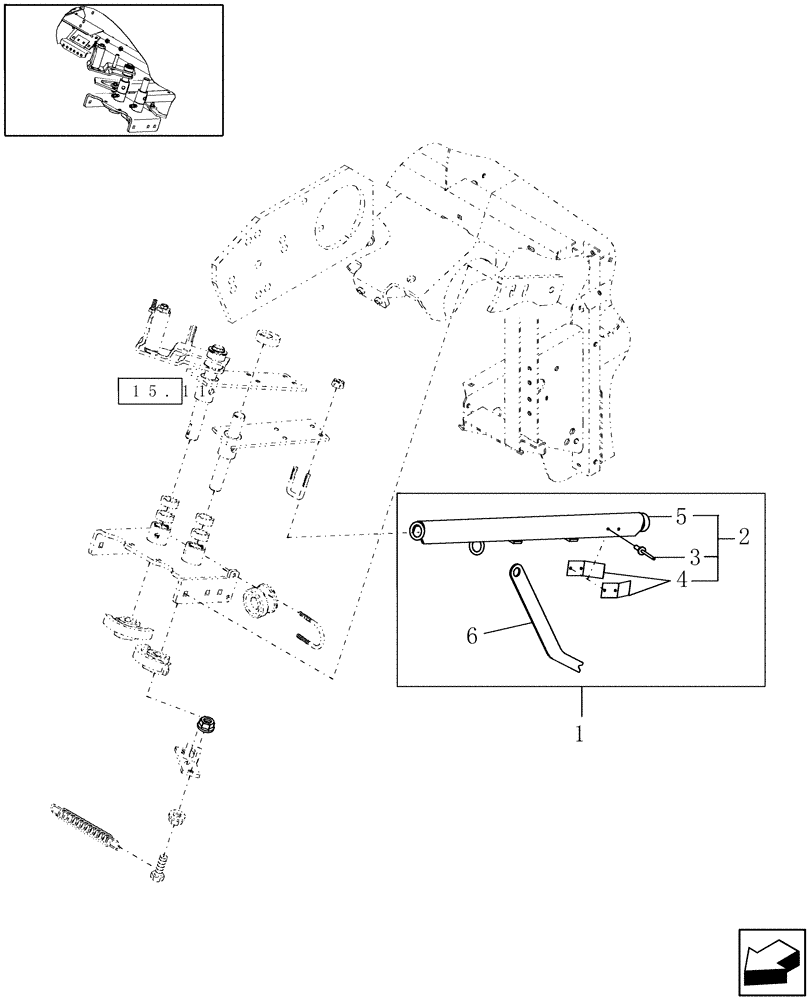

Схема запчастей Case IH RBX562 - (18.27) - LEAF SPRING TWINE ARM CONVERSION KIT (18) - ACCESSORIES
1
6
5
15.11
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87052309

DIA KIT, HARVESTER

Leaf Spring Twine Arm Conversion, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87049558

TUBE

2шт.

3

86637656

RIVET,Pop, 1/8" x .337"

8шт.

4

87050864

LEAF SPRING

4шт.

5

87049604

TOOL

Twine Threading

1шт.

6

NSS

NOT SOLD SEPARAT

Twine Tube

2шт.

Выбрано товаров: 7
