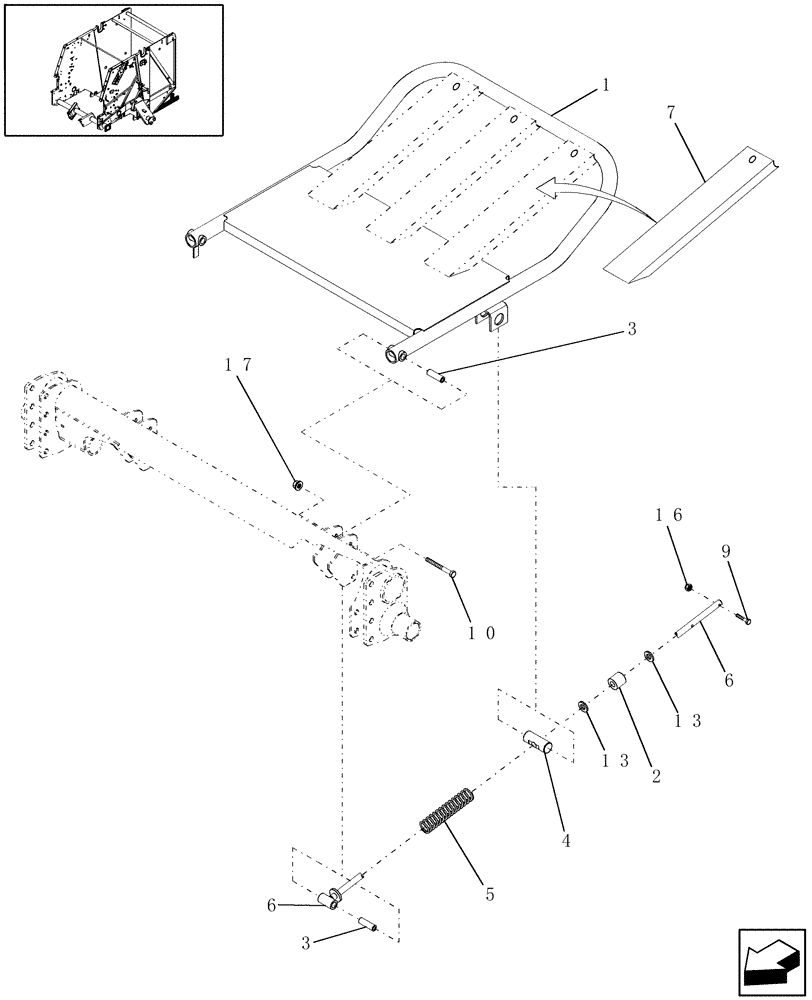

Запчасти Case IH RBX562 (16.20[1]) - BALE EJECTOR, PRIOR TO P.I.N. HBJ0007711 (16) - BALE EJECTOR

1

87027506

EJECTOR

Bale, Ref. 7 is Not Included.

1шт.

2

86562970

BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L

Rubber

2шт.

3

647765

SPACER

4шт.

4

86637296

PIN

2шт.

5

87029355

SPRING,Compression, 2.14" OD x 19.9" L

Heavy Duty, 2-1/8" OD

2шт.

5

87022949

SPRING,Compression, 41.27mm OD x 505mm L

Compression, Light Duty, 1-5/8" OD

2шт.

6

86637308

ROD

2шт.

7

87034715

CHANNEL

Optional

3шт.

Welding Required

1шт.

9

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

10

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

13

141781

WASHER

3/4"

4шт.

16

231-4145

NUT,5/16"-18, GB

2шт.

17

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.
