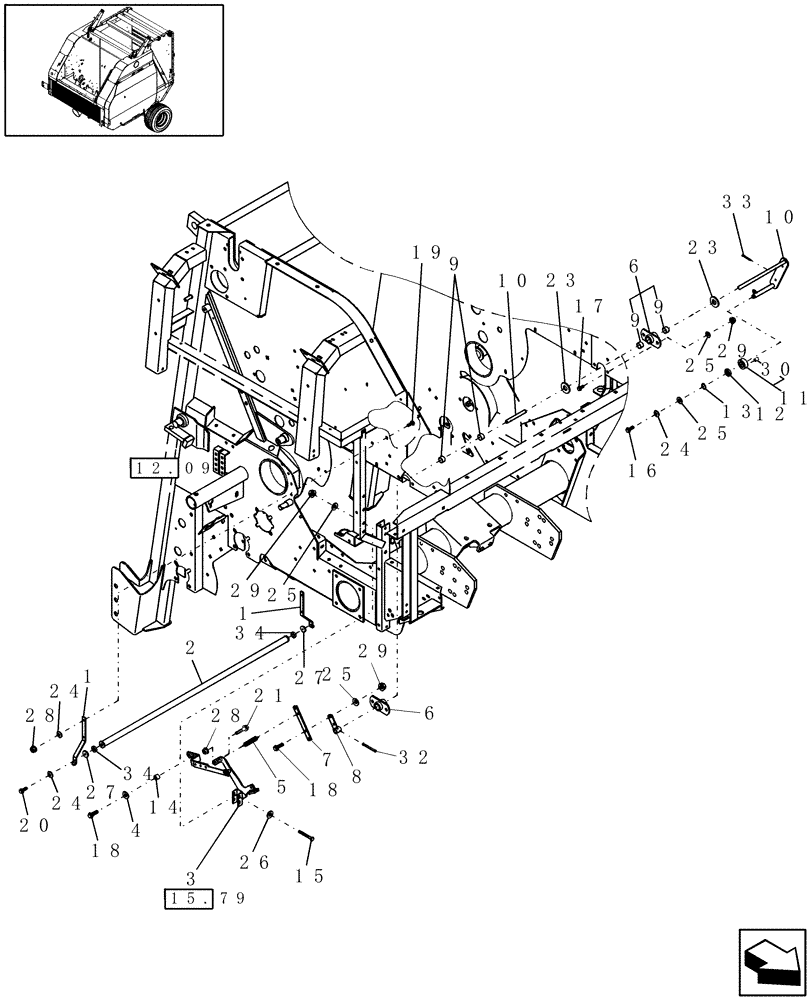

Запчасти Case IH RBX562 (15.67) - NET WRAP, COUNTER ROLL, STATIONARY ROLL & BRAKE TENSION (15) - KNOTTER /WRAPPER

1

86627446

BRACKET

2шт.

2

86627401

ROLLER SHAFT

1шт.

3

0C

ORDER COMPONENTS

Net Brake

1шт.

4

678235

WASHER

Hardened, 1-1/4" OD

1шт.

5

86640785

SPRING,Extension, 31.75mm OD x 120.65mm L

1шт.

6

87025919

HUB

2шт.

7

86627686

PLATE

1шт.

8

86627393

ARM

1шт.

9

84024585

BUSHING,20mm ID x 23mm OD x 15mm Thk

4шт.

10

86635473

GUARD

1шт.

11

86609716

HUB

Aluminum, Includes: Ref. 30. Also Required is Ref. 12 & 13.

1шт.

11

87050433

HUB

Plastic, Ref. 12 & 30 is Included & NSS. Ref. 13 is Not Required.

1шт.

12

214122

BALL BEARING,19.04mm ID x 41.27mm OD x 12.7mm W

1шт.

13

100-21162

SNAP RING,1.625", Int, #162

1шт.

14

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

15

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

17

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

18

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

19

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

23

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

26

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

27

86582989

SUPPORT

2шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

29

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

30

9615611

MAGNET

1шт.

32

333960

LOCK PIN,6mm OD x 50mm L, Slotted

1шт.

33

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

34

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.
