(15.06) - ELECTRIC TWINE WRAP, SHIELDS

Запчасти Case IH RBX562 (15.06) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER

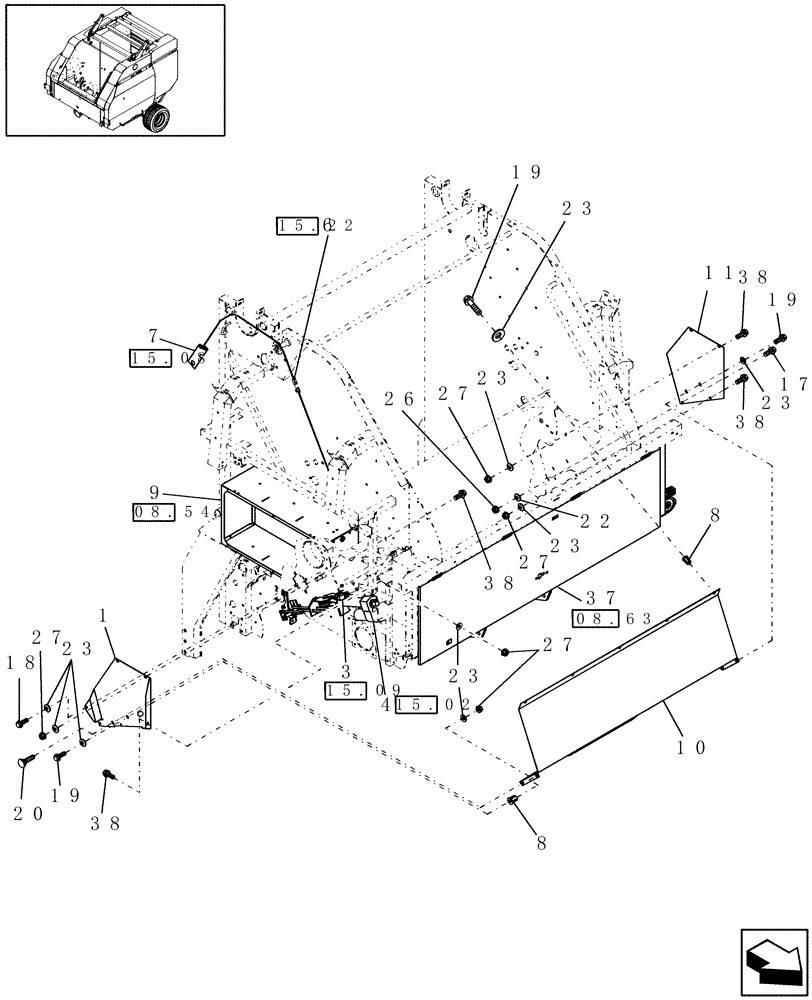

Схема запчастей Case IH RBX562 - (15.06) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER
23
38
19
23
7
15.02
19
17
4
08.63
15.22
15.08
22
37
19
11
20
10
6
23
38
27
9
23
8
18
15.09
26
08.54
23
1
23
27
38
27
8
38
3
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86637364

SHEET

RH

1шт.

3

0C

ORDER COMPONENTS

Twine Counter

1шт.

4

0C

ORDER COMPONENTS

Electric Wrap, Twine

1шт.

6

0C

ORDER COMPONENTS

Indicator

1шт.

7

NSS

NOT SOLD SEPARAT

Electric Wrap Trip

1шт.

8

86610200

THREADED INSERT,M8 x 1.25

M8

8шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

86900410

SHIELD

1шт.

11

86637363

SHEET

LH

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

9шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

37

87014359

DOOR ASSY.

Twine, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
