Запчасти Case IH RBX562 (15.02) - ELECTRIC TWINE WRAP (15) - KNOTTER /WRAPPER

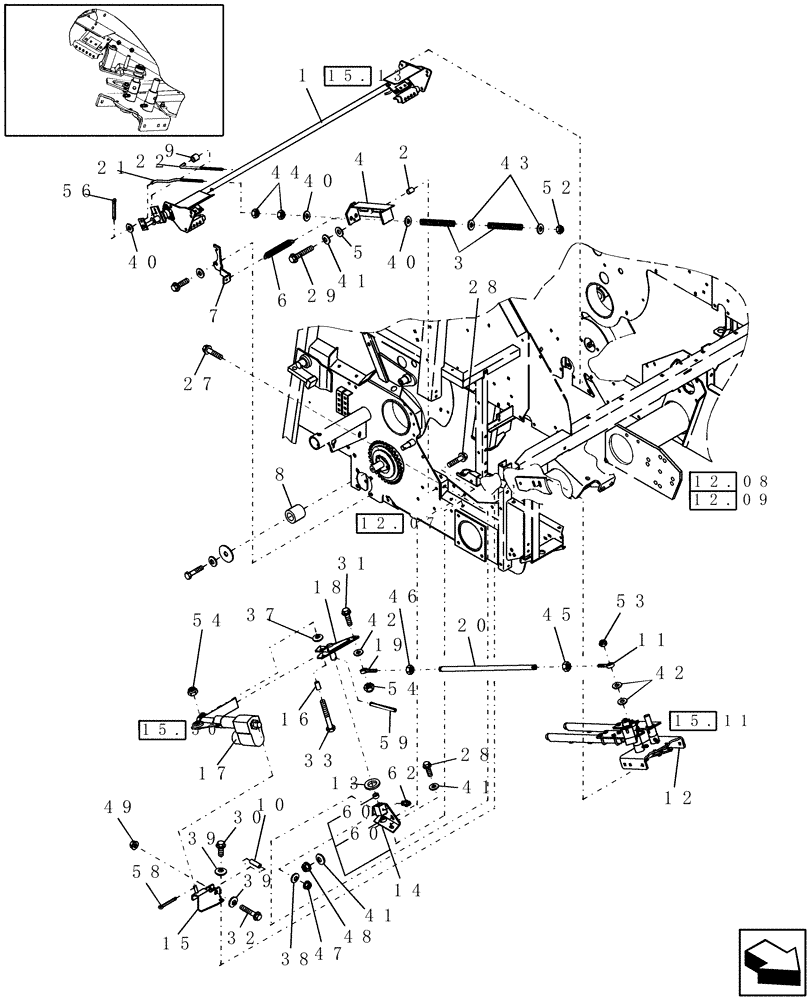

Схема запчастей Case IH RBX562 - (15.02) - ELECTRIC TWINE WRAP (15) - KNOTTER /WRAPPER
52
20
12.07
41
53
38
12.08
30
15
48
60
12
12.09
4
49
7
56
16
31
45
42
29
40
14
11
41
8
18
33
62
17
39
13
54
60
22
47
15.11
5
10
41
15.13
1
32
44
21
40
59
15.50
46
39
58
6
43
9
3
28
28
2
19
40
37
42
27
54

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Wrapper, Twine Knife

1шт.

2

9848747

SPACER

2шт.

3

42622

SPRING

1-1/2" Lg.

4шт.

4

86636790

PLATE

1шт.

5

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

2шт.

6

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

7

87023416

BRACKET

1шт.

8

86979126

SPACER,30.2mm ID x 41.53mm OD x 74mm L

Twine Wrap Only

1шт.

9

249825

SPACER

1шт.

10

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

11

618883

BALL JOINT HEAD,1/2" - 20

End, Spherical Bearing, LH-Thread

1шт.

12

0C

ORDER COMPONENTS

Wrapper, Twine Arm

1шт.

13

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

14

86619548

PIVOT

Use with Ref. 60

1шт.

15

87023415

SUPPORT

1шт.

16

86553579

GUIDE

Follower, Cam

1шт.

17

0C

ORDER COMPONENTS

Wrapper, Actuator

1шт.

18

87021801

PIVOT

Use with Ref. 14

1шт.

19

614445

SPHERICAL BEARING,12.764 mm ID x 33.34 mm OD x 15.88 mm

End, Spherical Bearing, RH-Thread

1шт.

20

86900022

TUBE,21.30 mm OD x 640.80 mm L

1шт.

21

86636646

ROD

1шт.

22

86729078

ROD

1шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

28

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

29

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

30

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

31

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

32

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

33

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

1шт.

37

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

39

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

40

495-21044

WASHER,3/8"

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

42

495-11053

WASHER,1/2", SAE

3шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

44

425-106

NUT,3/8"-16, Cl 5

4шт.

45

88058

NUT

G2, LH Thread, 1/2"-20

1шт.

46

425-118

NUT,1/2"-20, G5

1шт.

47

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

48

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

49

825-1412

NUT,M12, Cl 8

1шт.

52

231-4146

NUT,3/8"-16, GB

2шт.

53

231-4148

NUT,1/2"-13, GB

1шт.

54

832-46412

NUT,M12 x 1.75, Cl 8

3шт.

58

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

58

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

59

86977792

SLOTTED PIN,5mm OD x 40mm L, Slotted

1шт.

60

382975

BUSHING,25mm ID x 28mm OD x 15mm L

1.102" OD x .984" ID x .591" Wide

2шт.

Выбрано товаров: 49
