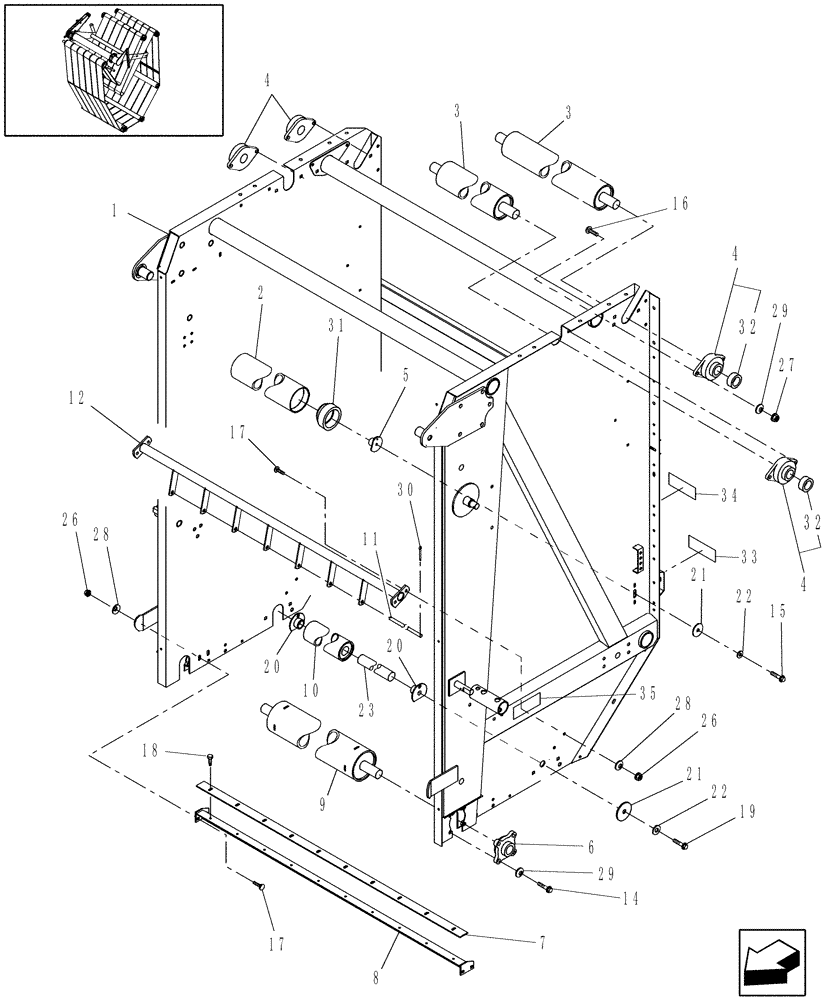

Запчасти Case IH RBX562 (14.46[2]) - TAILGATE & ROLLS, P.I.N. HBJ0007712 & AFTER (14) - BALE CHAMBER

1

87019775

TAILGATE

1шт.

2

86502853

ROLLER

Tailgate, Middle

1шт.

3

86599036

ROLL

Tailgate, Top

2шт.

4

86590751

BEARING ASSY,40mm ID

Includes: Ref. 31

4шт.

5

86501067

SUPPORT

2шт.

6

86590753

BEARING ASSY

2шт.

7

86636769

SCRAPER BLADE

1шт.

8

86626134

SUPPORT

1шт.

9

86599035

ROLL

Tailgate, Nose

1шт.

10

9842173

ROLLER

Tailgate, Bottom, Includes: Ref. 36

1шт.

11

9621329

ROD

1шт.

12

86626133

GUIDE

Belt, Rear

1шт.

13

87028764

SCRAPER

Blade

1шт.

14

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

15

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

16

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

8шт.

17

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

18

391510

SELF-TAP SCREW,Hex Wshr Hd, M8 x 1.25 x 20mm

Self-Tapping, M8 x 1.25 x 20

10шт.

19

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

20

86521602

SUPPORT

2шт.

21

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

4шт.

22

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

23

9608117

SHAFT

1шт.

26

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

27

825-1412

NUT,M12, Cl 8

12шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

30

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

31

563733

COLLAR

Lock

4шт.

33

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

34

86631516

WARNING DECAL

English

1шт.

34

86632799

DANGER DECAL

WARNING, French

1шт.

35

86631519

DANGER DECAL

English

3шт.

35

86632802

DECAL

DANGER, French

3шт.

36

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

, Serial Range: -36

2шт.

Not Illustrated

1шт.
