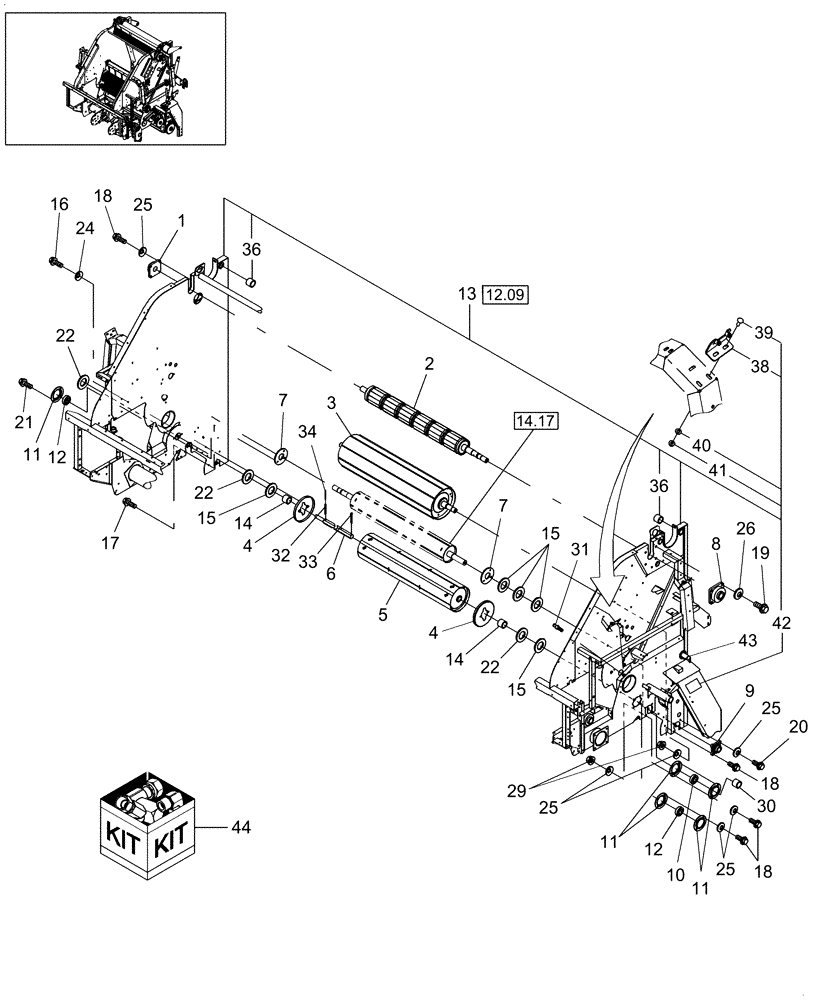

Запчасти Case IH RBX562 (14.10[2]) - MAIN FRAME & ROLLS, P.I.N. HBJ0007712 & AFTER (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1шт.

2

87027871

ROLL

Drive

1шт.

3

86600450

ROLLER

Floor, Includes: Round Rods

1шт.

4

86628106

SHIELD

2шт.

5

87374668

FEED ROLLER

Fixed Dimple, Includes: Square Rods

1шт.

6

87056503

SHAFT

1шт.

7

86636760

RING

2шт.

8

86590752

BEARING ASSY

1шт.

9

86590753

BEARING ASSY

2шт.

10

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

11

86837676

FLANGED BEARING

8шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

13

87016736

FRAME ASSY

Main, Includes: Decals

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

17

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

4шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

18шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

29

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.

30

86976003

SPACER

1шт.

31

219-417

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

34

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 34 Inside Ref. 32

1шт.

36

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

37

87039466

STRIPPER

2шт.

P.I.N. HBJ0005706 & After

1шт.

Welding Required

1шт.

38

87037410

HINGE

Lower, Square-Shaped

4шт.

P.I.N. HBJ039360 & After

1шт.

39

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

P.I.N. HBJ039360 & After

1шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

P.I.N. HBJ039360 & After

1шт.

41

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

P.I.N. HBJ039360 & After

1шт.

42

86631518

DANGER DECAL

English

2шт.

P.I.N. HBJ039360 & After

1шт.

42

86632801

DECAL

DANGER, French

2шт.

P.I.N. HBJ039360 & After

1шт.

43

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

44

9840158

KIT

Floor Traction, 3" x 44"

1шт.

Optional Kit used with Ref. 3, when Core Staring Problems Occur.

1шт.
