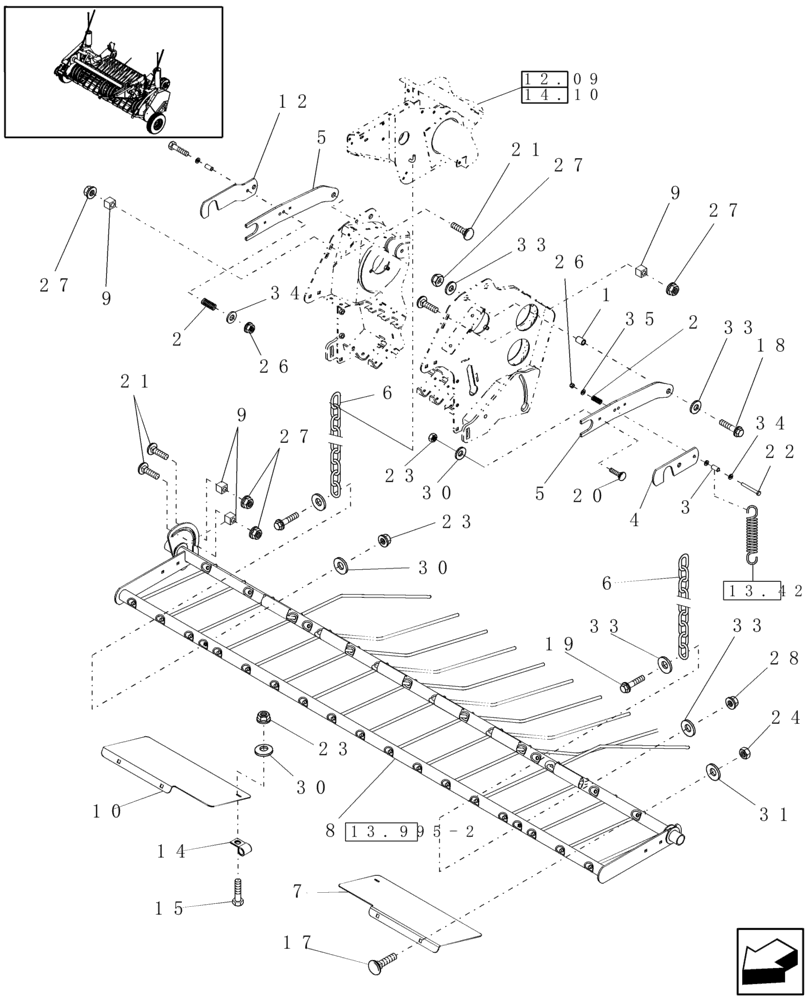

Запчасти Case IH RBX562 (13.980[2]) - 2M WIDE PICKUP, WINDGUARD, P.I.N. HBJ039347 & AFTER (13) - FEEDER

1

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

2

86635755

SPRING,15.88mm OD x 28.58mm L

2шт.

3

856964

BUSHING

2шт.

4

87043776

RETAINER

1шт.

5

87039915

ARM

2шт.

6

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

7

87046828

PLATE

LH

1шт.

8

0C

ORDER COMPONENTS

Windguard

1шт.

9

86603107

NUT

Square

4шт.

10

87049395

PLATE

RH

1шт.

11

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

12

87038214

RETAINER

RH

1шт.

13

86619595

DECAL

Stripe, White & Black

2шт.

14

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

17

811-10050

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.

18

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

19

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

20

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

21

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

4шт.

22

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

2шт.

23

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

26

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

27

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

28

231-4146

NUT,3/8"-16, GB

2шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

33

495-21044

WASHER,3/8"

8шт.

34

495-11034

WASHER,5/16", SAE

4шт.

35

495-11034

WASHER,5/16", SAE

2шт.
