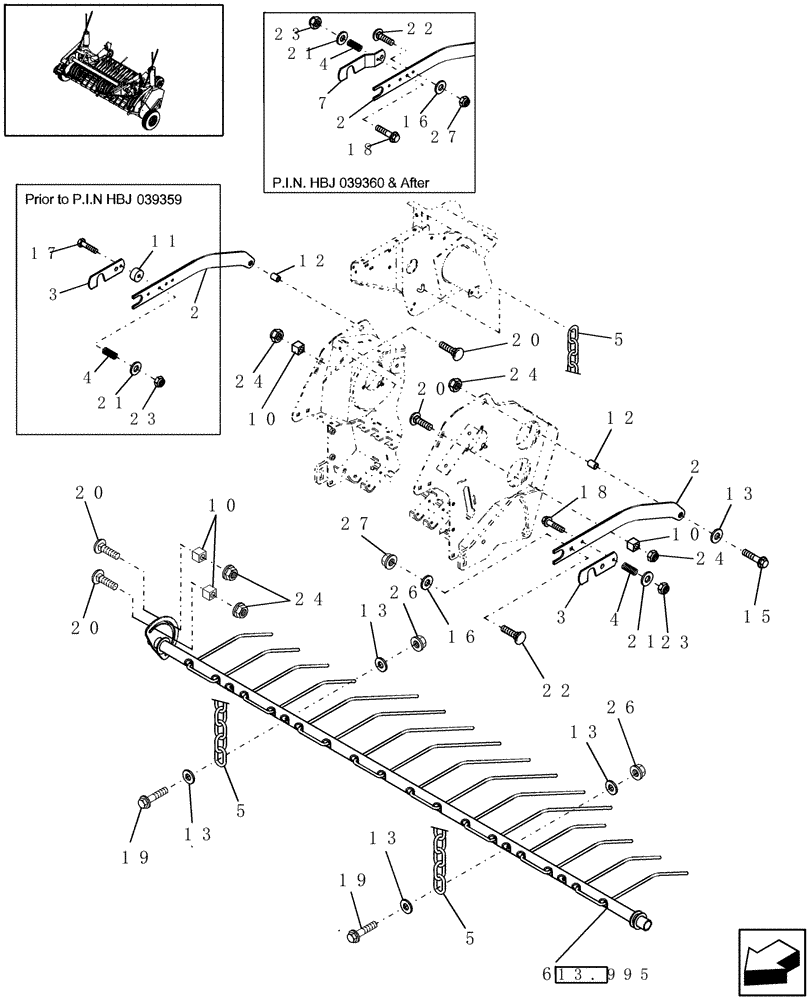

Запчасти Case IH RBX562 (13.980[1]) - 2M WIDE PICKUP, WINDGUARD, PRIOR TO P.I.N. HBJ039346 (13) - FEEDER

2

87043779

ARM

2шт.

Prior to P.I.N. HBJ039359

1шт.

2

86624816

ARM

Side

2шт.

P.I.N. HBJ039360 & After

1шт.

3

86621461

RETAINER

2шт.

Prior to P.I.N. HBJ039359

1шт.

3

87043776

RETAINER

1шт.

P.I.N. HBJ039360 & After

1шт.

4

86635755

SPRING,15.88mm OD x 28.58mm L

Compression

2шт.

5

86631509

CHAIN

26-3/4"

2шт.

6

0C

ORDER COMPONENTS

Windguard, Curved

1шт.

7

87038214

RETAINER

1шт.

P.I.N. HBJ039360 & After

1шт.

10

86603107

NUT

Square

2шт.

11

86626991

SPACER

1шт.

Prior to P.I.N. HBJ039359

1шт.

12

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

13

495-21044

WASHER,3/8"

8шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

P.I.N. HBJ039360 & After

1шт.

17

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

Prior to P.I.N. HBJ039359

1шт.

18

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

20

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

4шт.

21

495-11034

WASHER,5/16", SAE

2шт.

22

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

P.I.N. HBJ039360 & After

1шт.

23

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

24

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

26

231-4146

NUT,3/8"-16, GB

2шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

P.I.N. HBJ039360 & After

1шт.
