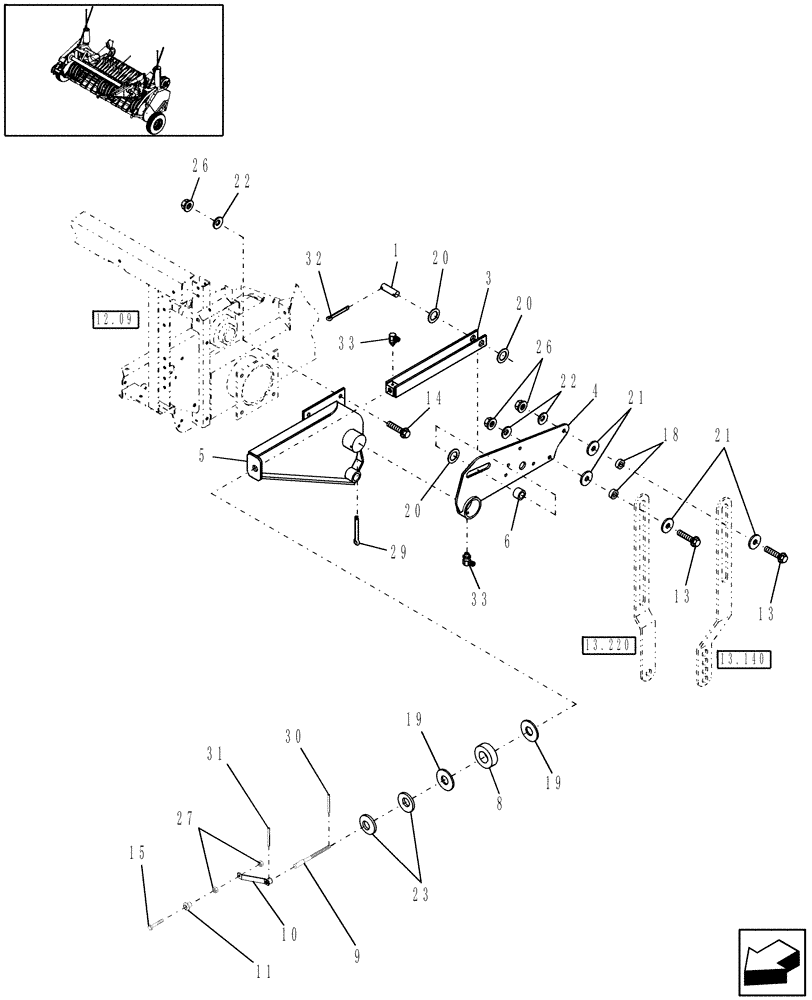

Запчасти Case IH RBX562 (13.800[1]) - STANDARD PICKUP, MECHANICAL PICKUP LIFT WITH TWO PIECE HANDLE (13) - FEEDER

1

86634564

PIN

1шт.

3

86620166

LINK

1шт.

4

86620277

ARM

1шт.

5

86631158

ARM

1шт.

6

86636631

HUB

1шт.

8

133062

THRUST BEARING

1шт.

9

86543355

THREADED ROD

1шт.

10

86636653

CRANKED HANDLE

1шт.

11

33781

KNOB

1шт.

13

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

14

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

5шт.

15

9849646

BOLT,Hex, Tap, 3/8" - 16 x 3.50", Gr 5

1шт.

17

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

1шт.

18

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

1шт.

19

56867

WASHER

Special, Hardened

2шт.

20

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

Special

1шт.

21

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

23

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

26

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

5шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

29

9790710

COTTER PIN,3/16" x 3 1/2"

1шт.

30

280315

GROOVED PIN,4.76mm OD x 25.4mm L

1шт.

31

435-5624

GROOVED PIN,3/16" x 1 1/2", Type E

1шт.

32

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

33

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.
