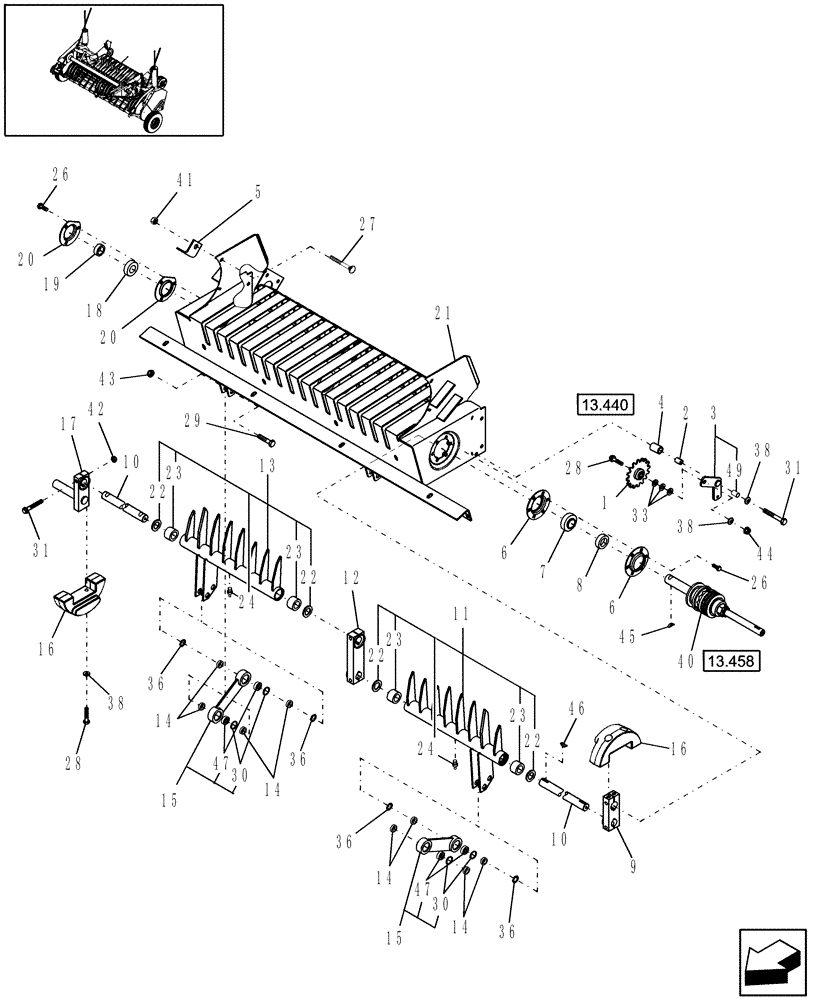

Запчасти Case IH RBX562 (13.530) - STUFFER FEEDER (13) - FEEDER

1

165271

DRIVEN SPROCKET

Idler

1шт.

2

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

3

86636654

ARM

1шт.

4

86705271

SPACER,13.5mm ID x 25.4mm OD x 34mm L

1шт.

5

66463

BRACKET

Spring Mount

4шт.

6

86635012

FLANGE

Bearing

2шт.

7

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

8

517645R11

COLLAR

Locking, Includes: Set Screw

1шт.

9

86625655

ARM

1шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

9

87038896

CRANK

LH

1шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

10

87021230

SHAFT

1.18" Dia.

2шт.

Prior to P.I.N. HBJ039062

1шт.

10

87038882

SHAFT

1.50" Dia.

2шт.

P.I.N. HBJ039062 & After

1шт.

11

86607438

TUBE,708.10 mm L

LH

1шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

11

87038885

TUBE,47.66 mm ID x 54 mm OD x 708.1 mm L

LH

1шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

12

86607442

ARM

1шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

12

87038893

CRANK

1шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

13

86607439

TUBE,708.10 mm L

RH

1шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

13

87038884

TUBE,47.66 mm ID x 54 mm OD x 708.1 mm L

RH

1шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

14

718013

SPACER

8шт.

15

86634527

ARM

2шт.

16

86627115

WEIGHT

2шт.

17

86620870

BLOCK

1шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

17

87038899

CRANK

RH

1шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

18

557995R11

COLLAR

Locking, Includes: Set Screw

1шт.

19

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

Ball

1шт.

20

87758679

FLANGED BEARING

2шт.

21

86622601

FRAME

Stuffer Feeder

1шт.

22

86606367

SEAL,30mm ID x 42mm OD x 7mm Thk

4шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

22

9609085

SEAL

4шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

23

86606298

BUSHING,30.12mm ID x 42.11mm OD x 42mm L

4шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

23

87038966

BUSHING,220mm ID x 270mm OD x 93mm L

4шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

26

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

9шт.

27

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

28

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

5шт.

29

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

30

100-21175

SNAP RING,1.75", Int, #175

4шт.

31

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

6шт.

33

495-11053

WASHER,1/2", SAE

1шт.

36

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

3/4"ID x 1-1/8"OD

8шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

40

0C

ORDER COMPONENTS

Clutch

1шт.

41

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

42

412672

NUT,Hex, M12 x 1.75, Cl 10

5шт.

43

231-41412

NUT,3/4"-10, GB

4шт.

44

825-1412

NUT,M12, Cl 8

1шт.

45

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

46

87038548

WOODRUFF KEY

8mm x 11mm

4шт.

Use with 1.18" (30mm) OD, Shaft, Ref. 10

1шт.

Prior to P.I.N. HBJ039062

1шт.

46

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

4шт.

Use with 1.50" (38.1mm) OD, Shaft, Ref. 10

1шт.

P.I.N. HBJ039062 & After

1шт.

47

9807906

BALL BEARING,0.7504" ID x 1.7805" OD x 0.61"

4шт.

48

87040383

KIT

Stuffer Fork

1шт.

This kit contains all parts required to upgrade the stuffer fork & related parts on units built prior to P.I.N. HBJ039062 with 1.18" stuffer shaft to the improved version with 1.50" stuffer shaft & related parts.

1шт.

49

87040968

BUSHING

.752" ID x .875" OD x .750" Lg.

1шт.
