(035) - SHIELDING, TAILGATE

Запчасти Case IH RBX561 (035) - SHIELDING, TAILGATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

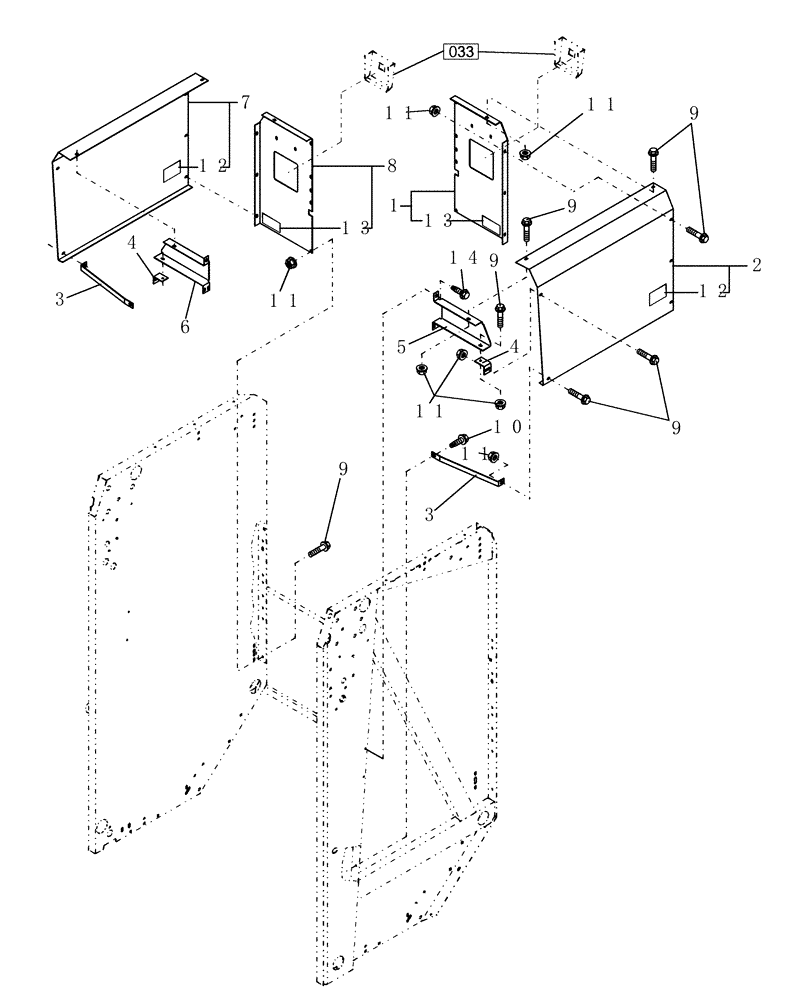

Схема запчастей Case IH RBX561 - (035) - SHIELDING, TAILGATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
4
8
9
12
5
2
11
6
9
12
9
13
3
13
9
1
10
11
4
11
11
9
11
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86627281

SHIELD

Rear, LH, Includes: Ref.13

1шт.

2

86630119

SHIELD

LH, Includes: Ref.12

1шт.

3

86621152

SUPPORT ASSY.

2шт.

4

86629916

PLATE

2шт.

5

86620250

SUPPORT ASSY.

LH

1шт.

6

86620251

SUPPORT ASSY.

RH

1шт.

7

86630120

SHIELD

RH, Includes: Ref.12

1шт.

8

86627282

SHIELD

Rear, RH, Includes: Ref.13

1шт.

9

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

20шт.

10

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

6шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

20шт.

12

86631519

DANGER DECAL

English

2шт.

12

86632802

DECAL

DANGER, French

2шт.

13

86547781

REFLECTOR,RED

Red Retroreflective

2шт.
