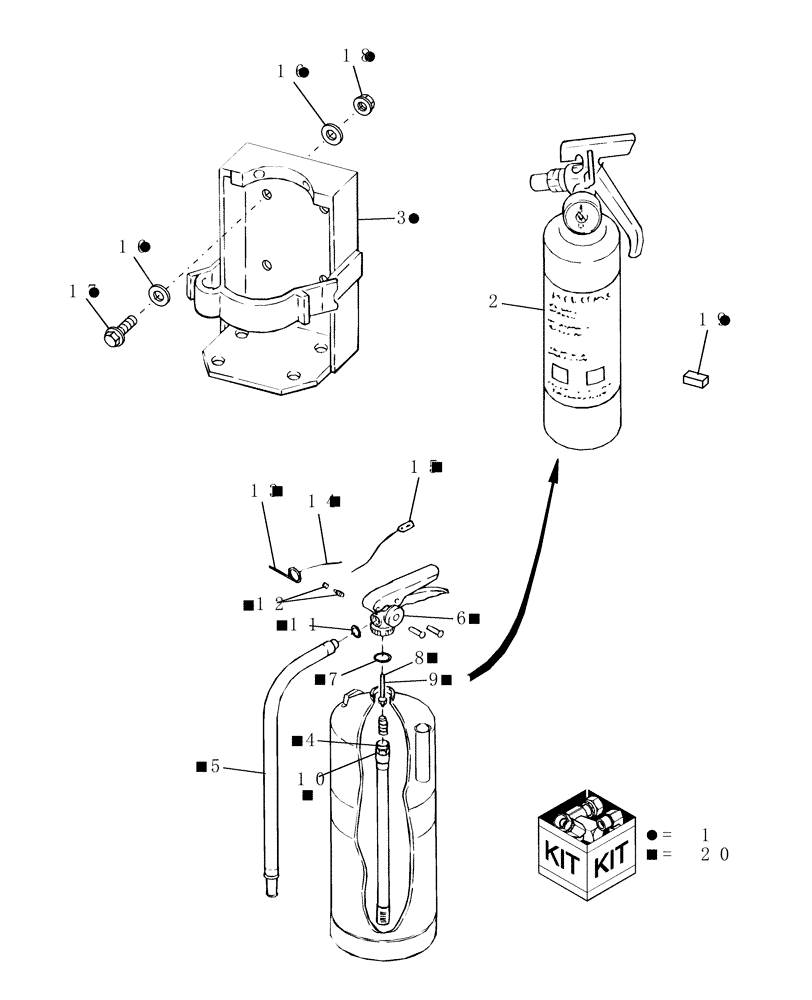

Запчасти Case IH RBX561 (040) - FIRE EXTINGUISHER (88) - ACCESSORIES

1

86705052

DIA KIT, HARVESTER

Fire Extinguisher

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9827423

FIRE EXTINGUISHER,Classification A

1шт.

3

9827422

BRACKET

1шт.

4

9843201

TUBE

1шт.

5

9843202

FLEXIBLE HOSE

1шт.

6

9843203

GAUGE

100 PSI

1шт.

7

NSS

NOT SOLD SEPARAT

Collar, O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Valve Stem, O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Valve Stem, O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Downtube, O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Pressure Valve & Cap

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Chain, Nylon

1шт.

15

NSS

NOT SOLD SEPARAT

Seal, Lock Wire

1шт.

16

495-21038

WASHER,5/16"

8шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

19

93444

SEALING STRIP

1шт.

Mounts on Twine Box Lid. Cut to Length

1шт.

20

9843204

REPAIR KIT

1шт.
