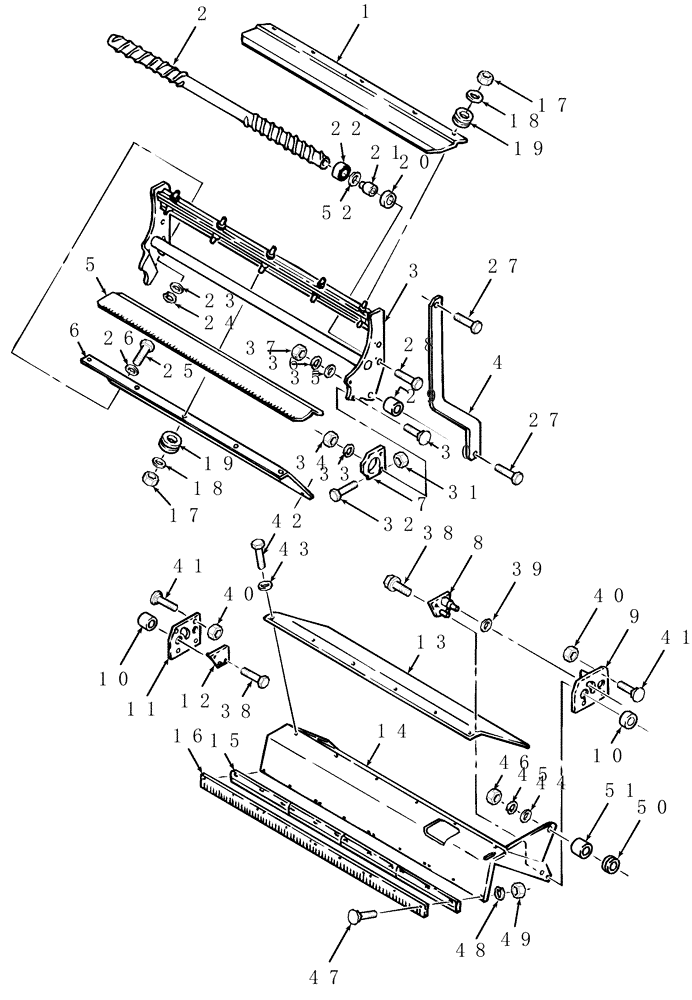

Запчасти Case IH RBX561 (038) - NET WRAP, DUCKBILL & KNIFE ARM (68) - TYING/WRAPPING

1

86636759

GUIDE

Upper

1шт.

2

86637230

ROLLER

Spreader

1шт.

3

86637200

ARM

1шт.

4

86628668

ARM

1шт.

5

86637199

BAFFLE

Lower

1шт.

6

9841760

SHIELD

1шт.

7

86636988

HUB

Pivot

2шт.

8

86636773

PLATE

RH

1шт.

9

86636999

PLATE

RH

1шт.

10

86504967

DRIVE BUSHING,19.16mm ID x 25.48mm OD x 12.7mm L

2шт.

11

86637001

PLATE

LH, Includes: Ref. 10

1шт.

12

86636772

PLATE

Bearing Mount, LH

1шт.

13

9805963

SHIELD

1шт.

14

86636774

PLATE

1шт.

15

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

3шт.

16

86628105

SUPPORT

Knife

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

18

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

11шт.

19

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

11шт.

20

86622552

SHIELD

2шт.

21

86517336

SUPPORT

Roller

2шт.

22

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

2шт.

23

495-21031

WASHER,1/4"

2шт.

24

832-46406

NUT,M6 x 1, Cl 8

2шт.

25

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

9шт.

26

76028

WASHER,9/32" x 1" x .06" Thk

2шт.

27

87846

HEX SOC SCREW,FLAT, 3/8" - 24 x 1-3/4"

2шт.

28

280760

HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"

2шт.

29

86636722

SPACER,12.62mm ID x 19.05mm OD x 15.75mm L

2шт.

30

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

4шт.

31

280736

NUT,5/16"-18, GC

4шт.

32

61-33148

HEX SOC SCREW,5/16"-18 x 3"

4шт.

33

492-11031

LOCK WASHER,5/16"

6шт.

34

825-1408

NUT,M8, Cl 8

5шт.

35

495-21044

WASHER,3/8"

1шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

232-4146

NUT,3/8"-16, GC

3шт.

38

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

39

86637237

WASHER

1-1/8" OD, .135" Thick

1шт.

40

825-5148

SERRATED NUT,M8, Flg Ser

8шт.

41

412430

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

43

495-21038

WASHER,5/16"

9шт.

44

495-21056

WASHER,1/2"

1шт.

45

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

46

829-1412

NUT,M12, Cl 10.9

3шт.

47

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

48

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

49

825-1406

NUT,M6, Cl 8

19шт.

50

131522

SPACER

Split

1шт.

51

86636876

SHAFT

1шт.

52

794034

WASHER,20.96mm ID x 28.7mm OD x 1.7mm Thk

1шт.
