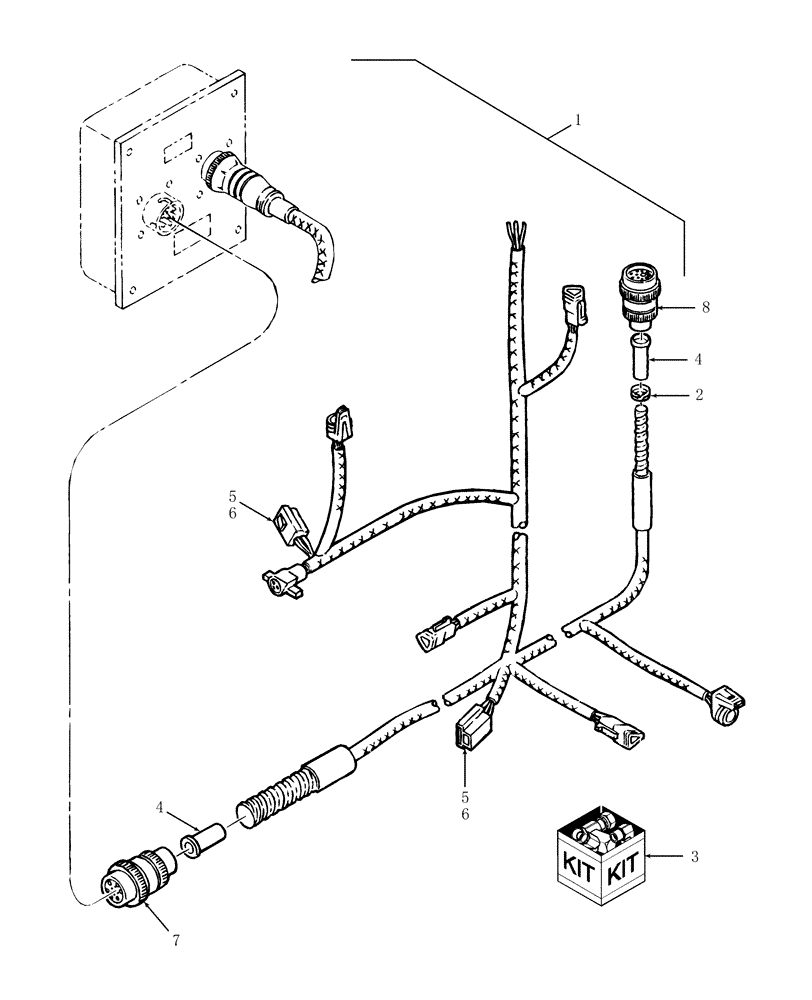

Запчасти Case IH RBX561 (030) - ELECTRICAL, NET-TWINE (68) - TYING/WRAPPING

1

86592582

WIRE HARNESS

Net/Twine

1шт.

2

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

3

9842514

KIT

3DT, Includes: Parts listed below

3шт.

9842513

PLUG

Wedge Lock

1шт.

9842512

ELEC CONNECTOR,Female, 16

3S Plug

1шт.

9611173

PLUG

Wedge

1шт.

9611172

WIRE CONNECTOR,16 SAE

3P Recpetacle

1шт.

4

9619682

BUSHING

MS3420-12

2шт.

5

248712

BODY

2шт.

6

900613

TERMINAL

E18

4шт.

7

86564210

MULTIPOLE CONNECTOR,Female, 19 Pole

DEU Plug, 19 SN

1шт.

900786

ELEC. TERMINAL PIN,Male, 5 - 8 mm2

E8

1шт.

900316

ELEC. TERMINAL PIN,Male, 2 -3.5 mm2

E8

1шт.

900363

TERMINAL

E8

1шт.

8

86520117

ELEC CONNECTOR,Male, 16 - 8 SAE

DEU Plug, 18 Cav Pin

1шт.

900786

ELEC. TERMINAL PIN,Male, 5 - 8 mm2

E18

1шт.

900316

ELEC. TERMINAL PIN,Male, 2 -3.5 mm2

E18

1шт.

900363

TERMINAL

E18

1шт.
