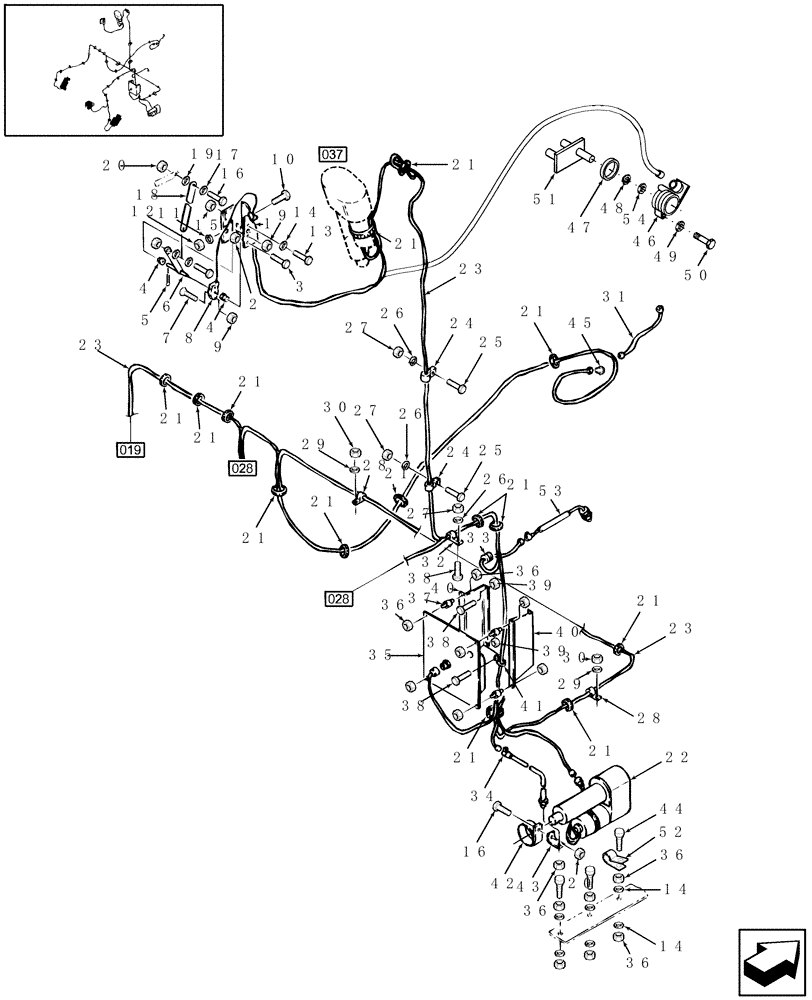

Запчасти Case IH RBX561 (027) - NET-TWINE WRAPPER, BALE SIZE & WRAP ACTUATOR SENSING (68) - TYING/WRAPPING

1

9847465

CHANNEL

1шт.

2

825-1408

NUT,M8, Cl 8

2шт.

3

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

4

9847466

BUSHING,8.25mm ID x 12.75mm OD x 10.26mm L

2шт.

5

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

6

9615829

ARM

1шт.

7

87758

SCREW,Truss HD, #8 - 32 x 1"

2шт.

8

9607595

POTENTIOMETER,5 VDC

Full Bale Sensor

1шт.

9

225-14108

NUT,#8-32

2шт.

10

84821

SCREW,Truss HD, #10 - 24 x 1/2"

1шт.

11

492-11010

LOCK WASHER,#10

1шт.

12

225-14110

NUT,#10-24

1шт.

13

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

14

495-21044

WASHER,3/8"

10шт.

15

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

17

495-21038

WASHER,5/16"

2шт.

18

9822330

BAR

1шт.

19

633492

SPACER

2шт.

20

825-5148

SERRATED NUT,M8, Flg Ser

5шт.

21

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

13шт.

22

9843435

ACTUATOR

Twine

1шт.

9843435R

REMAN-ELECTRIC ACTUATOR

RBX561 (12/01-8/02)

1шт.

9843435C

CORE-ELECTRIC ACTUATOR

Return Number

1шт.

23

86624226

HARNESS

WIRE, Twine Only, Refer to Fig. 029

1шт.

23

86592582

WIRE HARNESS

Net & Twine, Refer to Fig. 030

1шт.

24

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

2шт.

25

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

26

492-11025

LOCK WASHER,1/4"

1шт.

27

825-1406

NUT,M6, Cl 8

3шт.

28

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

29

495-11028

WASHER,1/4", SAE

3шт.

30

832-46406

NUT,M6 x 1, Cl 8

2шт.

31

86517891

WIRE HARNESS

Extension

1шт.

32

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

2шт.

33

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

1шт.

34

9848810

SWITCH

Hall Effect, Twine Sensing

2шт.

35

86625322

CONTROL UNIT

1шт.

35

87035281R

REMAN ELECT CONTROL

Controller ECU

1шт.

35

87035281C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

86625322C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT - for N.A. Only

1шт.

86529089

RELAY

1шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

37

264795

ELECTRIC INSULATION

4шт.

38

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

39

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

40

86509324

PLATE

2шт.

41

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

42

86552546

WIRE CLAMP

2", 5/16" Bolt, Black

1шт.

43

9841747

BRACKET

1шт.

44

694181

MAGNET

4шт.

45

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.

46

86500902

POTENTIOMETER,3000 Ohm, 16 VDC

Duckbill Sensor, Net Only

1шт.

47

86509329

MOUNTING PLATE

Includes: Bushing 86509761, Net Only

1шт.

48

100-3437

SNAP RING,#37, Ext

1шт.

49

493-41020

LOCK WASHER,Ext Tooth, #10

4шт.

50

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

4шт.

51

86619565

SUPPORT

Net Only

1шт.

52

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

1шт.

53

9848810

SWITCH

Hall Effect, Counter Roller, Net Only

1шт.

54

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.
