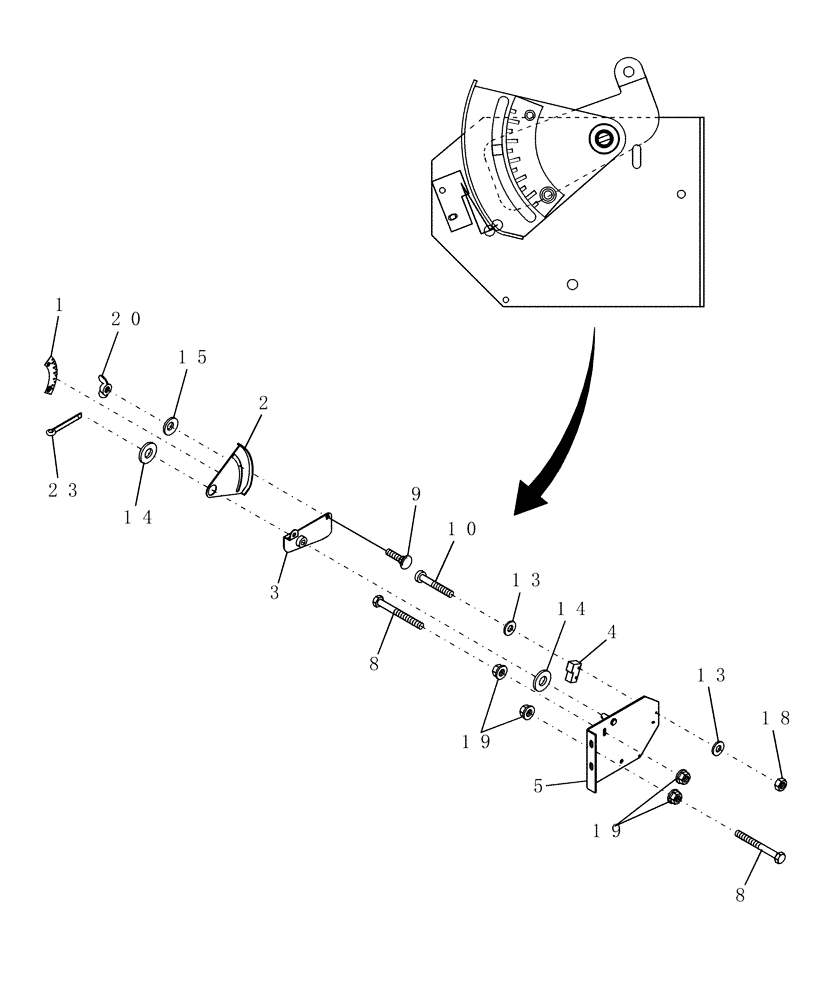

Запчасти Case IH RBX561 (020) - ELECTRIC TWINE WRAP, BALE SIZE SWITCH (68) - TYING/WRAPPING

1

86628305

WARNING SIGN

Bale Size

1шт.

2

86631648

TRIP

1шт.

3

87024454

PIVOT

1шт.

4

783681

SWITCH

Electric Twine Wrap

1шт.

5

86631650

SUPPORT ASSY.

1шт.

8

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

9

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

1шт.

10

88363

SCREW,Fillister Hd, #6 - 32 x 1 1/4"

2шт.

13

495-31016

WASHER,#6

4шт.

14

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

18

193-1003

NUT,Keps, w/LW,#6-32

2шт.

19

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

20

80801

WING NUT

5/16"

1шт.

23

432-816

COTTER PIN,1/8" x 1"

1шт.
