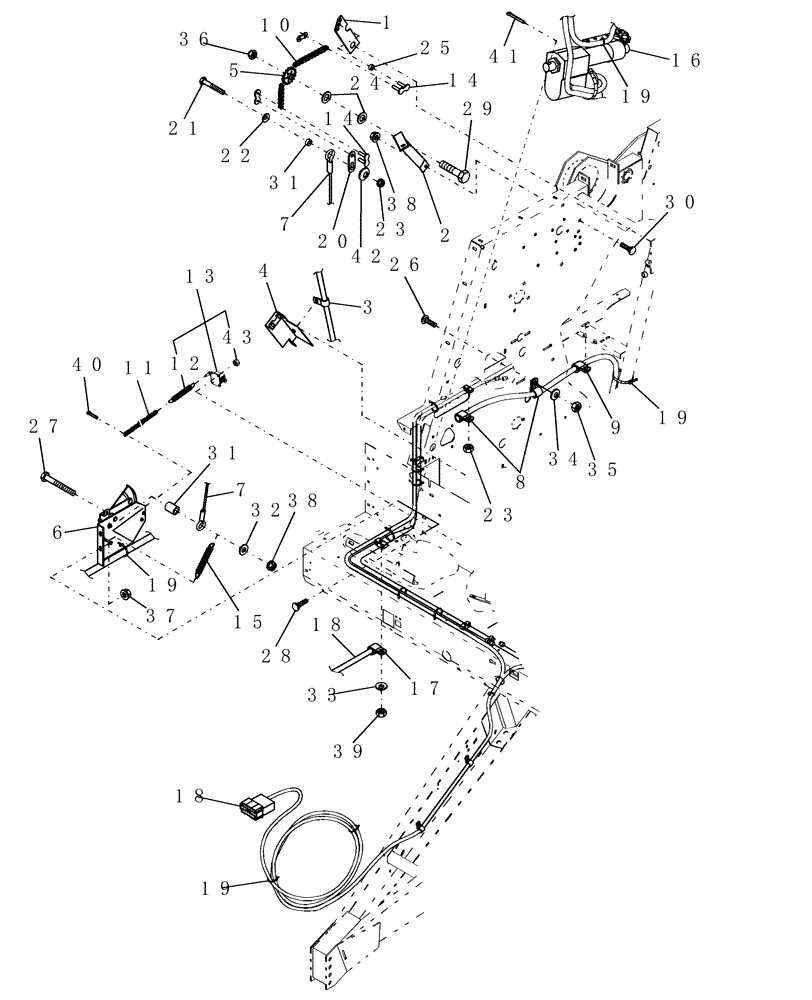

Запчасти Case IH RBX561 (018[1]) - ELECTRIC TWINE WRAP, RH (68) - TYING/WRAPPING

1

86978158

BAR

1шт.

2

86978159

BRACKET

1шт.

3

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

4

86511226

SHIELD

RH

1шт.

5

103243

DRIVEN SPROCKET

Idler, 18T

1шт.

6

NSS

NOT SOLD SEPARAT

Electric Twine Wrap Switch, Refer to Fig. 020

1шт.

Order Components

1шт.

7

86977382

CABLE ASSY.

1шт.

8

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

2шт.

9

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

10

56364

CHAIN

Includes: Ref. 14

1шт.

11

197559

CHAIN,9" L

#16, 9" L

1шт.

12

197717

SPRING

1шт.

13

86608973

BALE COUNTER

Includes: Spring & (2) #5 Nuts

1шт.

14

NSS

NOT SOLD SEPARAT

Connector Link, 2040, Part of Ref. 10

1шт.

15

32306

SPRING

1шт.

16

NSS

NOT SOLD SEPARAT

Actuator, Electric Twine Wrap, Refer to Fig. 018-3

1шт.

Order Components

1шт.

17

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

18

86624226

HARNESS

Main Wiring

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

20

86836922

LINK CHAIN

Strap, Connector

1шт.

21

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

22

76028

WASHER,9/32" x 1" x .06" Thk

1шт.

23

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

24

495-21069

WASHER,5/8"

2шт.

25

86636763

HUB

1шт.

26

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

27

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

28

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

29

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

30

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

31

696365

SPACER

1шт.

32

495-21038

WASHER,5/16"

1шт.

33

495-11028

WASHER,1/4", SAE

1шт.

34

492-11025

LOCK WASHER,1/4"

1шт.

35

825-1406

NUT,M6, Cl 8

1шт.

36

231-41410

NUT,5/8"-11, GB

1шт.

37

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

38

832-46408

NUT,M8 x 1.25, Cl 8

3шт.

39

832-46406

NUT,M6 x 1, Cl 8

1шт.

40

432-88

COTTER PIN,1/8" x 1/2"

1шт.

41

432-816

COTTER PIN,1/8" x 1"

3шт.

42

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

43

225-14105

NUT,#5-40

2шт.
