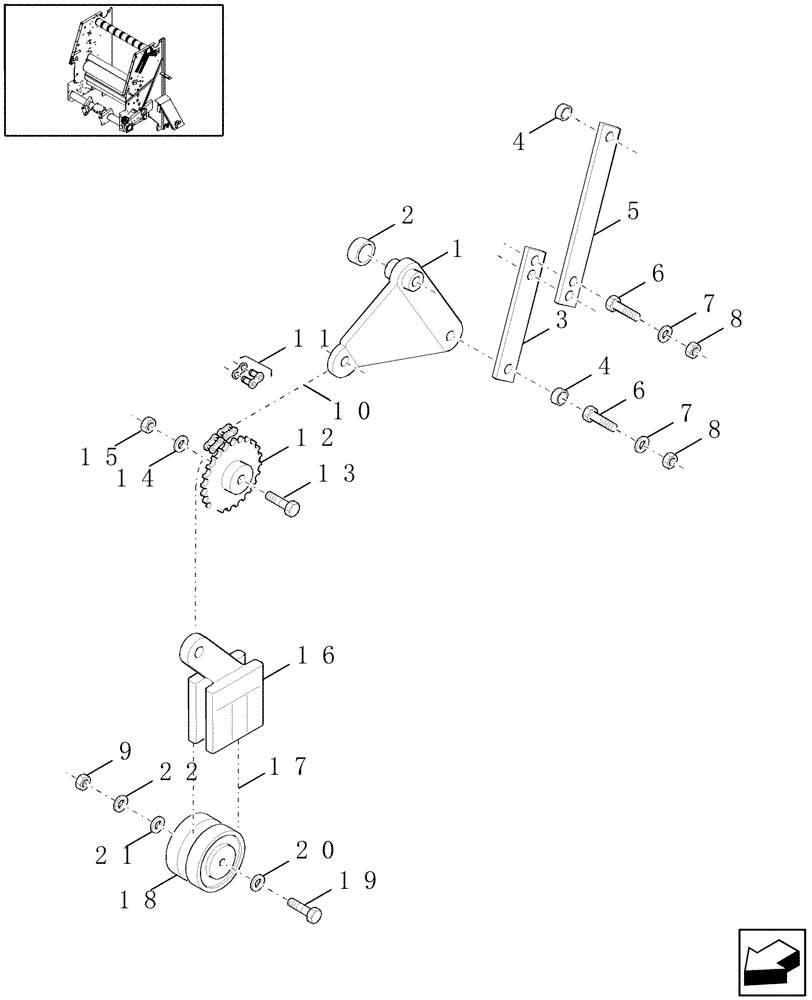

Запчасти Case IH RBX561 (015[2]) - DECLUTCH LINKAGE (62) - PRESSING - BALE FORMATION

1

86637016

LINK CONROD

1шт.

2

9822495

BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L

2шт.

3

86636886

BAR

1шт.

4

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

4шт.

5

86636884

BAR

1шт.

6

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

7

495-21044

WASHER,3/8"

2шт.

8

825-1410

NUT,M10, Cl 8

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

1шт.

10

9617629

CHAIN,41 Links x 12.7mm Pitch = 520.7mm L

ISO 1275, Riveted-Type, 41 Pitches, Includes: (2) Connector, Includes: Ref. 11, 40 ASA

1шт.

11

9828102

CONNECTING LINK

2040

1шт.

12

103243

DRIVEN SPROCKET

18 T

1шт.

13

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

14

492-11062

BEARING WASHER,5/8"

1шт.

15

425-1010

NUT,5/8"-11, G5

1шт.

16

86636998

BLOCK

1шт.

17

9803024

CHAIN

Includes: Ref. 11

1шт.

18

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

19

280436

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

20

26312

WASHER

1шт.

21

495-21056

WASHER,1/2"

1шт.

22

492-11056

LOCK WASHER,9/16"

1шт.
