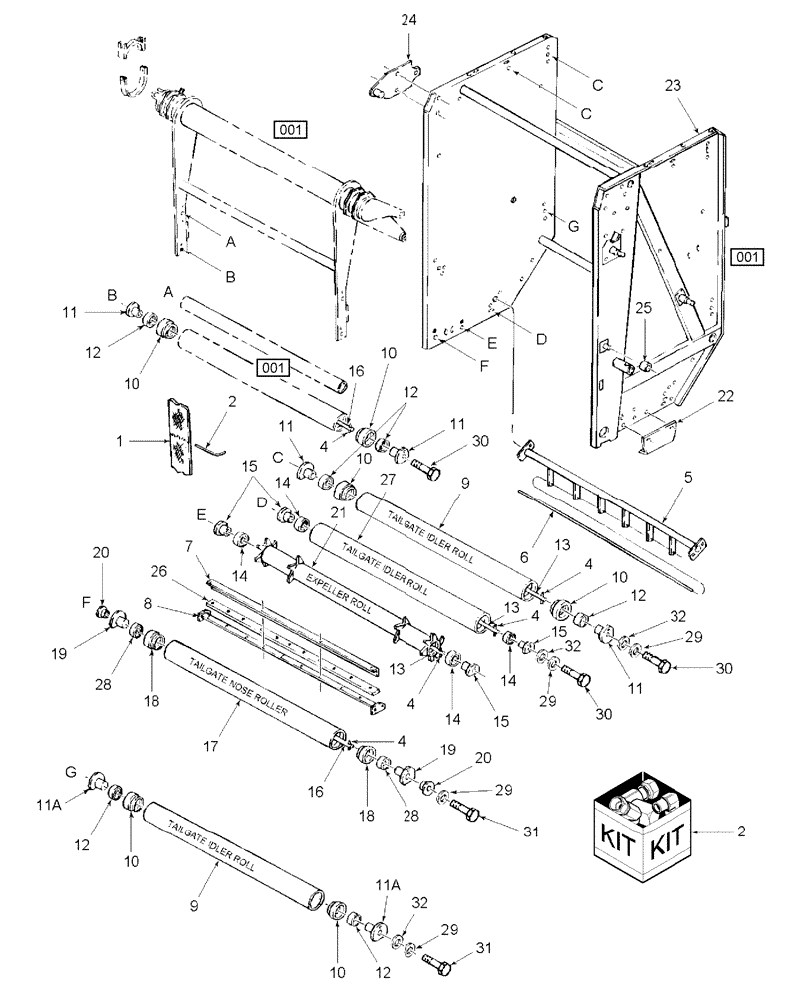

Запчасти Case IH RBX561 (005) - TAILGATE & BELTS (62) - PRESSING - BALE FORMATION

1

86616066

BELT,177.80 mm W x 10681.00 mm L

Baler, Laced

8шт.

1

87032888

BELT,7.00" W x 420.50" L

Baler, Endless

8шт.

2

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

Services 1 Baler, 9843257 Lacing Cables, (8), & 9843258 Cable Tubes, (18) Components of Lacing Cable Kit 86625980, are available separately if needed.

1шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

4

838-5526

LOCK PIN,M5 x 26, Slotted

12шт.

5

86626133

GUIDE

Belt, Rear

1шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

6

9621329

ROD

1шт.

432-816

COTTER PIN,1/8" x 1"

2шт.

7

86628016

ANGLE

1шт.

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

10шт.

8

86626134

SUPPORT

1шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

9

86502853

ROLLER

4-1/2", Includes: Tube, (2) Bearings & (2) Housings

3шт.

Rollers at location C on the art page MUST use Ref. 13, Shaft 9608117; roller at location G on the art page does NOT use Ref. 13 Shaft 9608117.

1шт.

10

86500662

BEARING ASSY

Includes: Ref. 12

6шт.

11

86516322

SUPPORT

No Threads

6шт.

On the art page, refer to (*) Ref. C, this location only. Ref.11 Support 86501067 should be used; Ref. 13 Shaft 9608117 should Not be used.

1шт.

11

86501067

SUPPORT

Threads

2шт.

On the art page, refer to (*) Ref. C, this location only. Ref.11 Support 86501067 should be used; Ref. 13 Shaft 9608117 should Not be used.

1шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

6шт.

13

9608117

SHAFT

6шт.

Each 9608117 Shaft includes (2) 130045 Pins.

1шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

8шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

14

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

15

86521602

SUPPORT

8шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

16

9608250

SHAFT

1шт.

Each 9608250 Shaft includes (1) 130045 Pin.

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

17

86502839

ROLLER

5.56, Includes: Tube, (2) Bearings & (2) Housings

1шт.

18

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

Includes: (2) Ref. 12

2шт.

19

86521601

SUPPORT

2шт.

20

9614071

CAP COVER

2шт.

21

86637216

ROLLER

Expeller, Includes: (2) Ref. 12

1шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

22

86637219

SHIELD

2шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

23

86631520

TAILGATE

Endless Belt

1шт.

Includes Decals, 86631519 & 86631516, & 86547711 SMV Emblem

1шт.

23

86637213

TAILGATE

Laced Belts

1шт.

Includes Decals, 86631519 & 86631516, & 86547711 SMV Emblem

1шт.

495-11053

WASHER,1/2", SAE

2шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

24

86637243

PLATE ASSY.

2шт.

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

10шт.

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

10шт.

25

9829271

SPACER

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

26

86636769

SCRAPER BLADE

1шт.

Component of Expeller Roller Kit, Refer to Fig. 041

1шт.

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

10шт.

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

825-1408

NUT,M8, Cl 8

4шт.

27

9842173

ROLLER

3-1/2", Includes: (2) Ref. 28

1шт.

28

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

29

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

30

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

31

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.

32

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

6шт.

33

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

34

86643786

DIA KIT, HARVESTER

Expeller Roller, Refer to Fig. 041

1шт.
