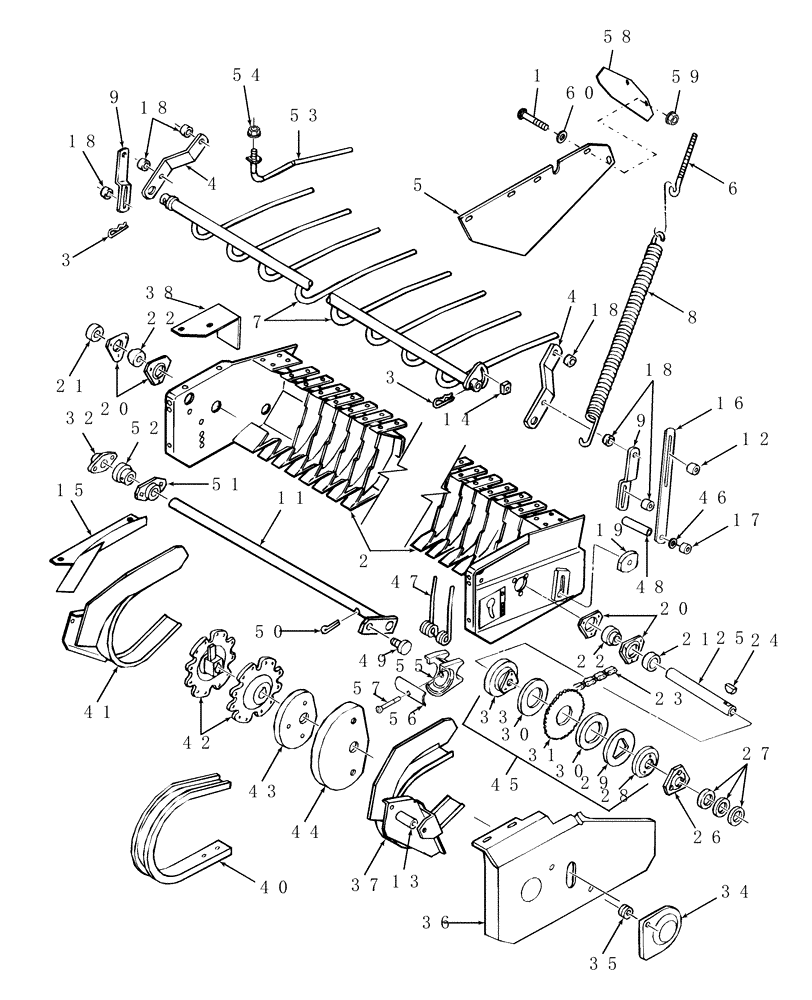

Запчасти Case IH RBX561 (007) - PICKUP (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
4шт.
2
86637195
FRAME ASSY
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
412093
SELF-TAP SCREW
M6 x 1 x 12
12шт.
614-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
2шт.
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
4шт.
495-21038
WASHER,5/16"
3шт.
4
86636887
BAR
2шт.
9827956
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
4шт.
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
2шт.
495-21044
WASHER,3/8"
2шт.
832-46410
NUT,M10 x 1.5, Cl 8
2шт.
5
86515944
SIDE PANEL
2шт.
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
8шт.
80577826
WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk
SAE, 5/16"
8шт.
832-46408
NUT,M8 x 1.25, Cl 8
8шт.
6
86628567
EYEBOLT
G2, 3/8"-16 x 8-3/4"
2шт.
9827956
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
Heat Treated
2шт.
7
86636997
GUARD ASSY.
1шт.
86636750
TINE
Windguard
12шт.
Welding Required
1шт.
832-46410
NUT,M10 x 1.5, Cl 8
2шт.
8
86553570
SPRING
Extension
2шт.
9
86636888
CONNECTING LINK
2шт.
213404
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
3/16" x 13/32" ID x 1-1/2" OD
4шт.
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
2шт.
825-51410
FLANGE NUT,M10, Flg Ser
4шт.
495-21056
WASHER,1/2"
2шт.
11
86637197
PIPE ASSY.
Tooth
6шт.
832-46410
NUT,M10 x 1.5, Cl 8
12шт.
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
6шт.
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
6шт.
9618968
WASHER,0.41" ID x 0.78" OD x 0.1" Thk
6шт.
12
748303
SPACER
1шт.
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
1шт.
58225
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
Special, 1-1/4" OD
1шт.
832-46410
NUT,M10 x 1.5, Cl 8
1шт.
13
86636721
SPACER
1шт.
14
44612
SPACER
Washer
2шт.
15
86636752
SHIELD
1шт.
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
2шт.
832-46408
NUT,M8 x 1.25, Cl 8
2шт.
16
86636630
CONNECTING LINK
1шт.
232-4146
NUT,3/8"-16, GC
2шт.
433-672
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5
1шт.
495-21044
WASHER,3/8"
1шт.
17
646056
SPACER,13/32” ID x .750” OD x .338” Tk.
1шт.
18
698748
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
Spacer
6шт.
19
86584050
IDLER
Plastic
1шт.
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
811-12080
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8
1шт.
495-21056
WASHER,1/2"
2шт.
829-1412
NUT,M12, Cl 10.9
1шт.
20
662649R1
RETAINER
4шт.
905-10020
BOLT,Hex Flg, M10 x 20mm
6шт.
21
557115R11
COLLAR
2шт.
22
455959R92
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
2шт.
23
9828289
CHAIN,A2050, 48 Links x 31.75mm = 1524mm
50 Pitches, Pickup Drive, Includes: (1) 25193 Coupler Link, Cotter Pin Type
1шт.
24
126-32
WOODRUFF KEY,#21, 1/4" x 1 1/4"
1шт.
25
86512181
SHAFT
Pickup
1шт.
432-1224
COTTER PIN,3/16" x 1-1/2"
1шт.
26
86636168
BRACKET
1шт.
905-10020
BOLT,Hex Flg, M10 x 20mm
6шт.
27
673
WASHER,29mm ID x 41mm OD x 1.52mm Thk
6шт.
28
121092
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
1шт.
29
86627129
CLUTCH PLATE
1шт.
31
86637250
DRIVEN SPROCKET
48T, Includes: 49686 Bushing
1шт.
Standard-speed Sprocket comes as standard equipment.
1шт.
31
86536130
DRIVEN SPROCKET
44T, Includes: 49686 Bushing
1шт.
Used to speed up the Pickup, Optional
1шт.
32
638025
FLANGE
6шт.
33
86635141
HUB
Clutch
1шт.
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
3шт.
34
86619617
SHIELD
1шт.
614-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
1шт.
495-11034
WASHER,5/16", SAE
1шт.
832-46408
NUT,M8 x 1.25, Cl 8
1шт.
35
29840
SPRING,Compression, 11.91mm OD x 25.4mm L
1шт.
36
86618401
SHIELD
Pickup
1шт.
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
1шт.
37
86637155
PLATE ASSY.
Transition, LH
1шт.
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
825-51410
FLANGE NUT,M10, Flg Ser
2шт.
38
86637163
SHIELD
1шт.
412093
SELF-TAP SCREW
M6 x 1 x 12
12шт.
40
86637150
GUARD
Pickup, 46.7"
23шт.
412093
SELF-TAP SCREW
M6 x 1 x 12
56шт.
41
86637153
PLATE ASSY.
Transition, RH
1шт.
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
825-51410
FLANGE NUT,M10, Flg Ser
2шт.
42
86635065
DISC
Finger
3шт.
832-46410
NUT,M10 x 1.5, Cl 8
2шт.
120071
BOLT,Hex, M10 x 65, 8.8
1шт.
88682
CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5
24шт.
231-5146
FLANGE NUT,3/8"-16
24шт.
836-80110
WOODRUFF KEY,M8 x8 11 x 27.35
3шт.
43
86636873
CAM
Inner
1шт.
825-51410
FLANGE NUT,M10, Flg Ser
2шт.
905-10025
BOLT,Hex Flg, M10 x 25mm
3шт.
44
86636761
CAM
Outer
1шт.
45
86635138
SLIP CLUTCH
Includes: Refs. 28 - 31 & 33
1шт.
46
58225
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
Special, 1-1/4" OD
1шт.
47
87394242
TORSION SPRING,Coiled, 2 Prong, 186.5mm L
Pickup, Curved, Premium, Standard
72шт.
47
87607074
TINE
Pickup, Curved, Economy, Optional
72шт.
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
66шт.
9618968
WASHER,0.41" ID x 0.78" OD x 0.1" Thk
66шт.
832-46410
NUT,M10 x 1.5, Cl 8
66шт.
48
86636721
SPACER
1шт.
49
84350126
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
6шт.
50
136521
COTTER PIN,5.7mm OD x 44.45mm L
1/4" x 1-1/2"
6шт.
52
54770
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
6шт.
905-10020
BOLT,Hex Flg, M10 x 20mm
12шт.
825-51410
FLANGE NUT,M10, Flg Ser
12шт.
53
86636902
REEL TINE
11шт.
54
232-4146
NUT,3/8"-16, GC
11шт.
55
86627654
TINE BAR
Tooth
72шт.
56
134921
BRACKET
Pickup Tooth
72шт.
57
130891
BOLT,Tine, 5/16" - 18 x 2"
Special, Pickup Finger
72шт.
280736
NUT,5/16"-18, GC
72шт.
425-106
NUT,3/8"-16, Cl 5
4шт.
58
86619299
FILLER
2шт.
59
832-46408
NUT,M8 x 1.25, Cl 8
4шт.
60
80577826
WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk
SAE, 5/16"
4шт.
Выбрано товаров: 129
