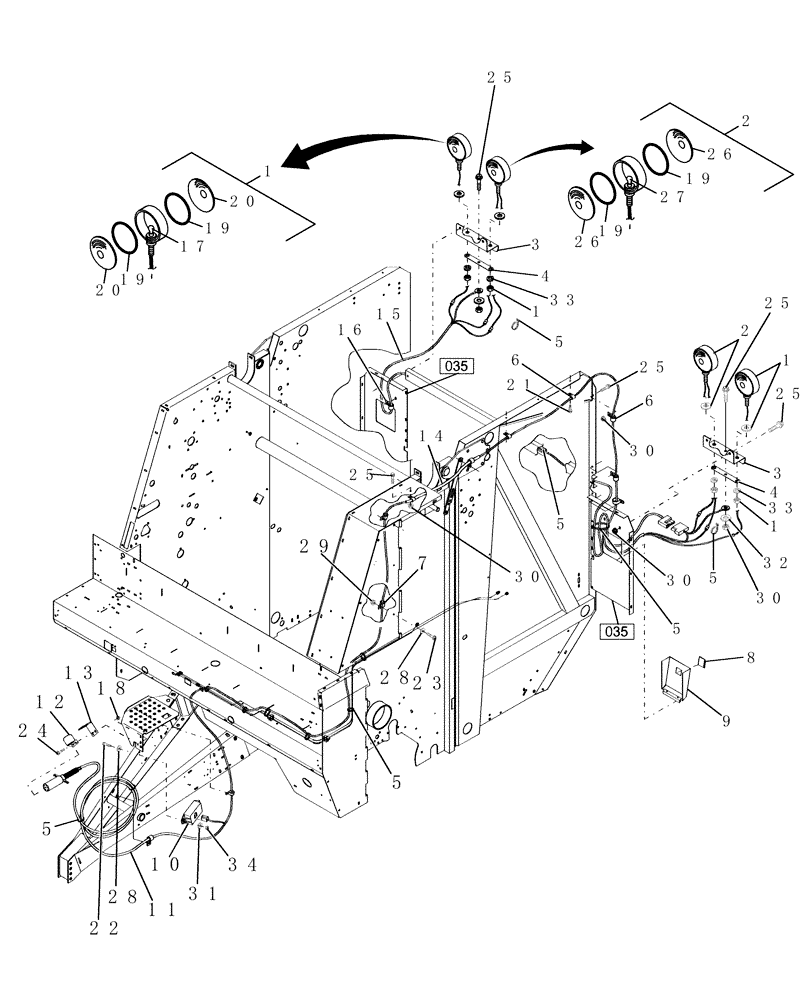

Запчасти Case IH RBX561 (033) - LIGHTING (55) - ELECTRICAL SYSTEMS

1

86621618

WARNING LIGHT

Amber

2шт.

Includes: Ref. 17, 19, & 20

1шт.

2

NSS

NOT SOLD SEPARAT

Red

2шт.

Includes: Ref. 26 & 27

1шт.

3

86620253

SUPPORT ASSY.

2шт.

4

86619701

PLATE ASSY.

2шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

15шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

8шт.

7

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

1шт.

8

632732

LATCH

2шт.

9

86630948

COVER ASSY

2шт.

10

86561136

MODULE

1шт.

11

86559102

WIRE HARNESS

1шт.

12

9611467

HOLDER

Plug

1шт.

13

86533245

BRACKET

1шт.

14

86632155

GROMMET

Split Conduit

1шт.

15

86559462

WIRE HARNESS

1шт.

16

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

17

A41264

BULB,#1156, 12V

2шт.

18

832-46406

NUT,M6 x 1, Cl 8

2шт.

19

86627435

O-RING,3.484" ID x 0.139" Width

6шт.

20

86622240

LENS

Amber

4шт.

21

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

2шт.

22

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

23

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

24

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

25

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

11шт.

26

86622241

LENS

Red

2шт.

27

T34857

BULB,C6, #1157, 12.8V

2шт.

28

495-21031

WASHER,1/4"

3шт.

29

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

30

825-5148

SERRATED NUT,M8, Flg Ser

11шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

34

425-104

NUT,1/4"-20, Cl 5

2шт.
