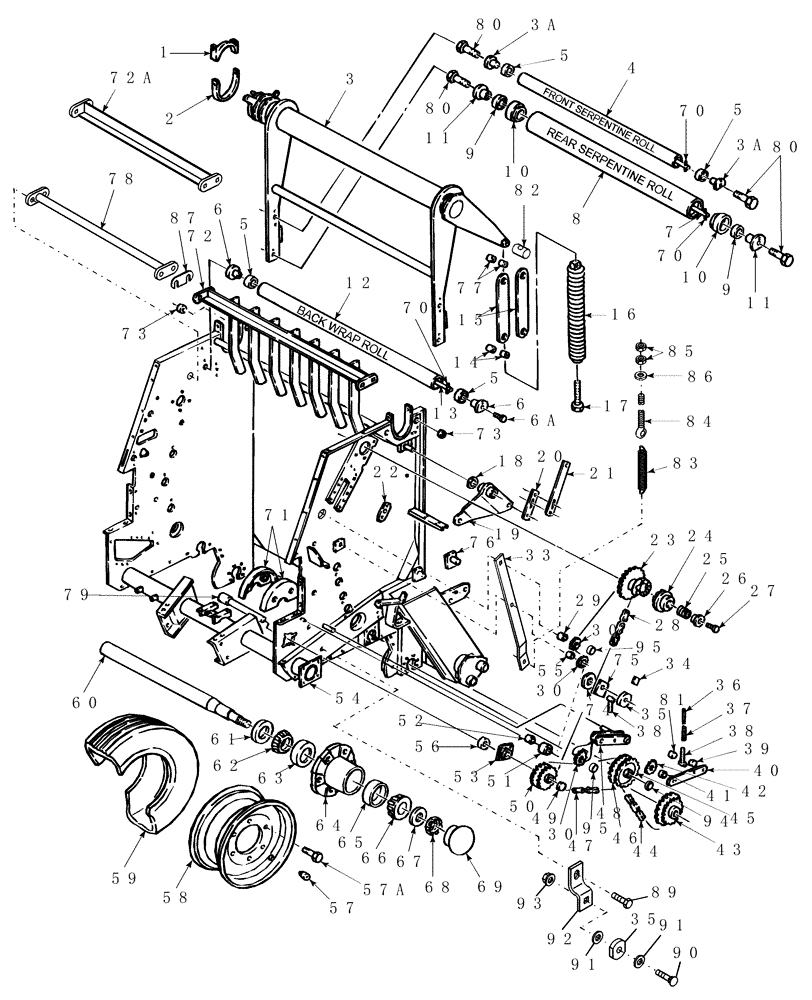

Запчасти Case IH RBX561 (001) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

86636552

BEARING CAP

2шт.

2

9617265

BAND

2шт.

3

86637225

LIFT ARM

Take Up

1шт.

495-11053

WASHER,1/2", SAE

8шт.

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

495-11106

WASHER,1", SAE

2шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

3a

86516321

SUPPORT

2шт.

4

9842174

ROLLER

3-1/2", Includes: (2) 9845576 Bearings

1шт.

5

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

4шт.

6

86521602

SUPPORT

2шт.

6a

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

7

9608250

SHAFT

2шт.

Shafts 9608250 & 9608117 each include (2) pins 130045.

1шт.

8

86500664

ROLLER

4-1/2", Includes: Tube, (2) Bearings & (2) Housings, Must use Shaft 9608250

1шт.

9

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

10

86500662

BEARING ASSY

Includes: Bearing Ref. 9

2шт.

11

86516322

SUPPORT

2шт.

12

9842173

ROLLER

3-1/2", Back Wrap, Steel, Includes: (2) Ref. 5

2шт.

12

86536001

ROLLER

3-1/2", Back Wrap, Rubber, Includes: (2) Ref. 5

1шт.

13

9608117

SHAFT

2шт.

Shafts 9608250 & 9608117 each include (2) pins 130045.

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

14

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

2шт.

15

86637229

LINK,489mm L

4шт.

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

16

NSS

NOT SOLD SEPARAT

Spring, Refer Fig. 006

2шт.

17

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

495-21081

WASHER,3/4"

2шт.

18

134463

WASHER,.030" Thk

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

19

86637016

LINK CONROD

1шт.

9822495

BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L

2шт.

9805684

SPACER

1шт.

86636763

HUB

Chain Connector, 4mm ID x 12.7mm

1шт.

20

86636886

BAR

1шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

495-21044

WASHER,3/8"

1шт.

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

1шт.

825-1410

NUT,M10, Cl 8

1шт.

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

1шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

829-1412

NUT,M12, Cl 10.9

1шт.

21

86636884

BAR

1шт.

495-21044

WASHER,3/8"

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

1шт.

829-1412

NUT,M12, Cl 10.9

2шт.

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

1шт.

825-1410

NUT,M10, Cl 8

1шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

22

86636891

PLATE

1шт.

412093

SELF-TAP SCREW

M6 x 1 x 12

2шт.

23

87032323

SPROCKET

Sprocket, 22T

1шт.

86601368

BUSHING

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

2шт.

100-11162

SNAP RING,#162, Ext

1шт.

24

87028608

CLUTCH

Half

1шт.

25

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

26

9829364

CAP COVER

End

1шт.

27

9849862

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-1/2"

1шт.

28

9804060

CHAIN,80, 158 Links x 25.4mm = 4013.2mm

Roller, #80, Riveted Type, 158 Pitches, Includes: (1) Connector Link 140776, Cotter Pin Type & (1) Connector Link 9620569, 80K

1шт.

29

86634530

HUB

1шт.

30

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

3шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

30

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only, Includes: Bearing 144819C91

3шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

434-1044

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

1шт.

280656

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 3 1/4", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

2шт.

825-1416

NUT,M16, Cl 8

2шт.

27367

WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk

1шт.

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

1шт.

33

86624825

ARM

1шт.

34

86636768

PLATE

2шт.

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

829-1412

NUT,M12, Cl 10.9

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

86584050

IDLER

Plastic

2шт.

495-21069

WASHER,5/8"

1шт.

606271

SPACER

1шт.

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

495-21056

WASHER,1/2"

6шт.

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

36

86637258

TUBE,19.05 mm OD x 228.60 mm L

2шт.

37

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression

3шт.

38

86637254

ROD

2шт.

829-1412

NUT,M12, Cl 10.9

6шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

39

76615

SPACER

1шт.

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

1шт.

33298

WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

495-11066

WASHER,5/8", SAE

1шт.

40

86637277

ARM

1шт.

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

2шт.

825-1416

NUT,M16, Cl 8

1шт.

41

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

42

86627639

SPROCKET,15T

15T

1шт.

43

86637249

DRIVING SPROCKET

Double 35T/35T

1шт.

44

86518073

CHAIN,60H, 82 Links x 19.05mm = 1562.1mm

#60, 82 Pitches, Drive

1шт.

45

86637392

DRIVEN SPROCKET

20T, Includes: 46962 Bushing

1шт.

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

829-1412

NUT,M12, Cl 10.9

4шт.

66849

WASHER,51.59mm ID x 76.2mm OD x 3.17mm Thk

Nylon, 2"

1шт.

46

86637256

DRIVING SPROCKET

Includes: Ref. 94

1шт.

47

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

#80, 84 Pitches, Includes: (1) Connecting Link, Semi-press Fit, Cotter Pin Type

1шт.

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

80K

1шт.

48

86636671

PLATE

1шт.

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

Hardened

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

492-11044

LOCK WASHER,7/16"

1шт.

495-21044

WASHER,3/8"

1шт.

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

825-1416

NUT,M16, Cl 8

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

49

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Hardened, 1/2"

4шт.

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

492-11044

LOCK WASHER,7/16"

1шт.

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

50

86637248

DRIVEN SPROCKET

18T

1шт.

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

4шт.

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

51

86514717

IDLER WHEEL

2шт.

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

1шт.

495-21056

WASHER,1/2"

1шт.

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

433-844

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

2шт.

52

86636635

SPACER

1шт.

53

9807783

BEARING ASSY,3.238" ID x 3.73" OD x 1"

Includes: Bearing which is NSS

1шт.

Bearing & Housing are Select-Fit

1шт.

829-1412

NUT,M12, Cl 10.9

4шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

54

86631521

FRAME ASSY

1шт.

55

681659

SPACER

1шт.

56

131377

COLLAR

& Ring

1шт.

57

387897R91

VALVE STEM

2шт.

57a

198056

WHEEL BOLT,1/2" - 20 x 1.031"

G5

12шт.

58

86616344

WHEEL

2шт.

59

621531

TYRE/TIRE

14L-16.1 - 8 Ply

2шт.

60

9617263

SPINDLE

2шт.

9802018

SPACER

2шт.

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

4шт.

61

788367

SEAL

2шт.

62

G15215

ROLLER BEARING

Tapered, Roller

2шт.

63

619387R1

BEARING CUP

2шт.

64

86635391

HUB

2шт.

65

H433209

BEARING CUP

2шт.

66

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

2шт.

67

116150

WASHER,23.81mm ID x 50.8mm OD x 4.76mm Thk

7/8"

2шт.

68

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

69

249128

HUB CAP

2шт.

70

838-5526

LOCK PIN,M5 x 26, Slotted

10шт.

71

86637198

HALF-DISC

2шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

72

86977995

GUIDE

Belt, Front, Optional

1шт.

72a

86636897

TUBE,1562 mm L

Angle

1шт.

73

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

(1) used in each corner of Main Frame

2шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

74

39856

WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk

1/2"

1шт.

75

9845608

BLOCK

1шт.

76

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

77

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

2шт.

495-11106

WASHER,1", SAE

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

78

86636897

TUBE,1562 mm L

1шт.

79

86636751

SHAFT

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

80

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

Cap, HH, CL 8.8, M12 x 30, 6.5 Head Height

4шт.

81

86637291

SPACER

2шт.

82

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

2шт.

83

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

84

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

85

425-106

NUT,3/8"-16, Cl 5

2шт.

86

495-21044

WASHER,3/8"

1шт.

87

86575783

SHIM

1шт.

89

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.

90

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

91

495-21056

WASHER,1/2"

2шт.

92

86637304

BRACKET

1шт.

93

232-4148

NUT,1/2"-13, GC

1шт.

94

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

1шт.

95

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.
