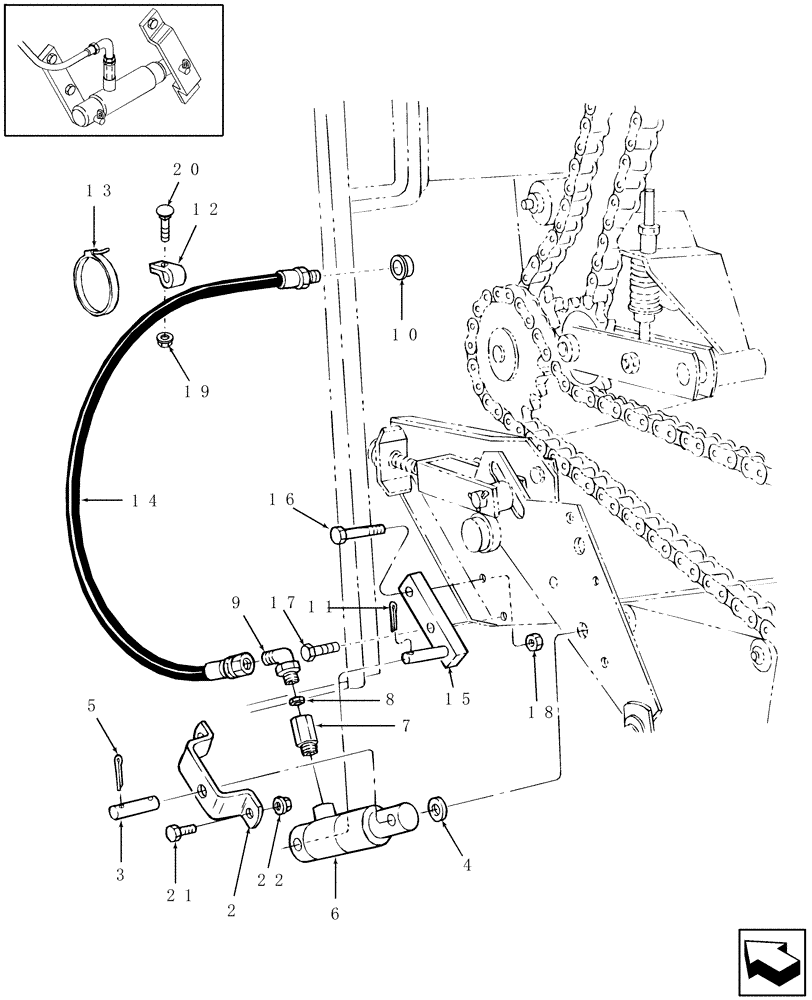

Запчасти Case IH RBX561 (017[6]) - HYDRAULIC PICKUP LIFT (35) - HYDRAULIC SYSTEMS

2

9829485

SUPPORT

1шт.

3

142823

CLEVIS PIN

5/8" x 2-5/16"

1шт.

4

495-11066

WASHER,5/8", SAE

1шт.

5

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

6

849372

CYLINDER

Pickup Lift, Refer to Fig. 017-7

2шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

6

87027465

HYDRAULIC CYLINDER,28.57mm Rod, 76.2mm Stroke

Pickup Lift, Refer to Fig. 017-7

2шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

7

86504974

HYD CONNECTOR

Includes: 237-6006 O-Ring

1шт.

8

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube

1шт.

10

116070

CAP

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1шт.

12

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

3шт.

13

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

14

795480

FLEXIBLE HOSE,0.38" ID x 184.00", SAE 100R1

1шт.

15

9843116

BLOCK

1шт.

16

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

17

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

18

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

22

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
