Запчасти Case IH RBX561 (017[4]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 86637318 (35) - HYDRAULIC SYSTEMS

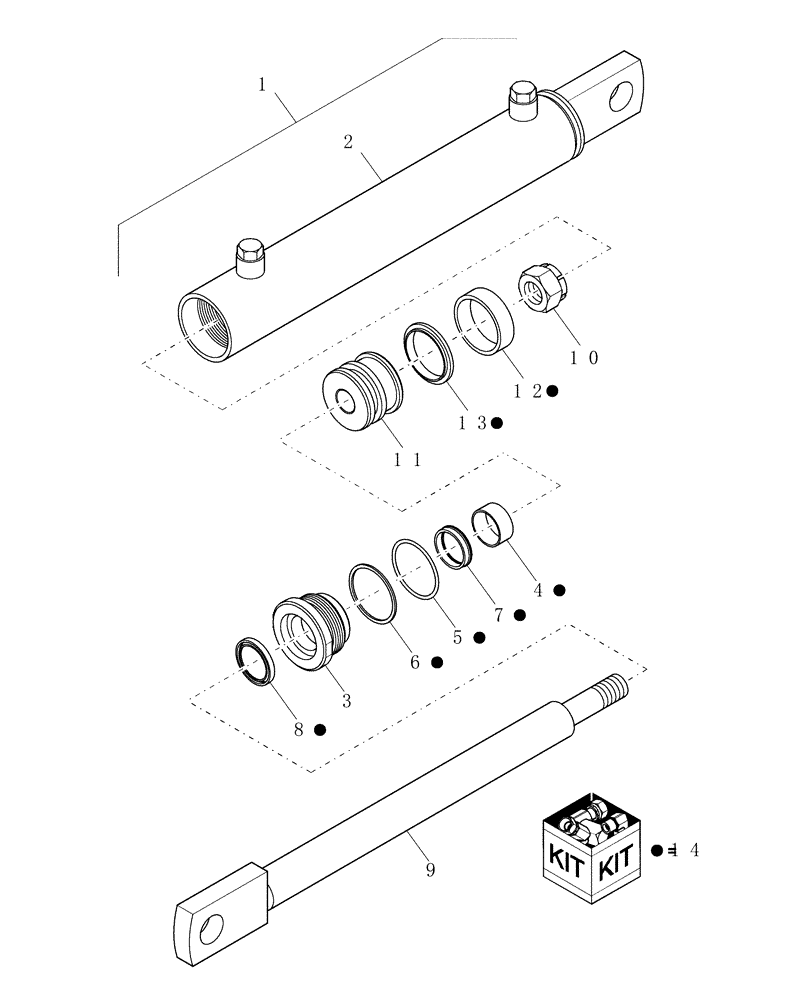

Схема запчастей Case IH RBX561 - (017[4]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 86637318 (35) - HYDRAULIC SYSTEMS
6
8
3
11
2
12
4
9
5
7
13
10
14
1

Артикул

Название

Примечание

Количество

1

86637318

HYDRAULIC CYLINDER

Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel {86609947}

1шт.

Plug is for Shipping Only

1шт.

3

86580770

CYLINDER END CAP

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

Wear, 1.250" ID x .50" Thick

1шт.

5

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

6

86565440

SEALING WASHER

Backup

1шт.

7

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

8

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

9

86609949

ROD

1шт.

10

280724

LOCK NUT,3/4" - 16

1шт.

11

592950

SPARE PART

1шт.

12

771705

RING

Wear, 2.004" ID x .50" Thick

1шт.

13

86553483

SEAL

3 Piece, Piston

1шт.

14

86586336

SEAL KIT

1шт.

Выбрано товаров: 16
