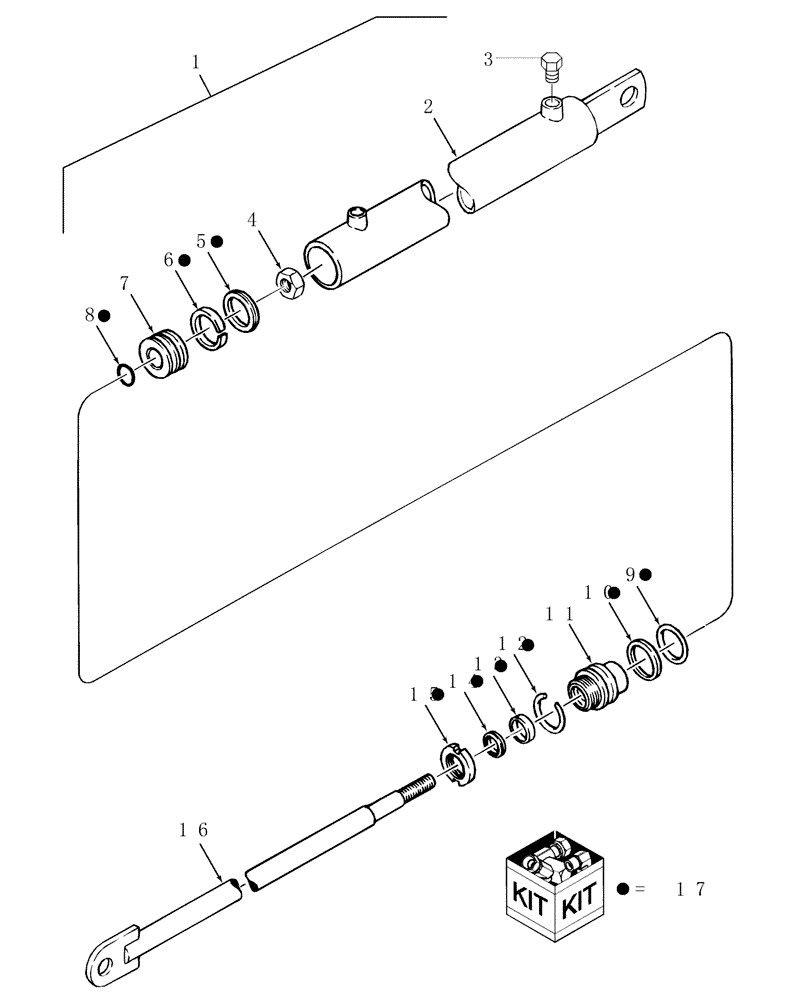

Запчасти Case IH RBX561 (017[3]) - HYDRAULIC CYLINDER, LH BALE TENSION (35) - HYDRAULIC SYSTEMS

1

86637002

HYDRAULIC CYLINDER

LH Bale Tension

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

76349

PLUG,9/16" - 18 ORB

2шт.

4

9602227

LOCK NUT,5/8"-18, GC

1шт.

5

86553483

SEAL

3 Piece, Piston

1шт.

6

771705

RING

Wear, 2.004" ID x .50" Thick

1шт.

7

786002

PISTON

1шт.

8

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

9

238-5326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

1шт.

10

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

1.638" ID x .064" Thick

1шт.

11

86520002

CYLINDER HEAD

1шт.

12

512016

SNAP RING

Int, 2.125"

1шт.

13

9616363

SEAL,25.4mm ID x 31.5mm OD x 6.35mm Thk

1шт.

14

121189

OIL SEAL

Wiper, 1-1/4" OD x 1/8" Thick

1шт.

15

86634531

BEARING LOCK NUT

Bearing, 1-3/4"-16

1шт.

16

86518722

ROD

1шт.

17

86605351

SEAL KIT

2шт.
