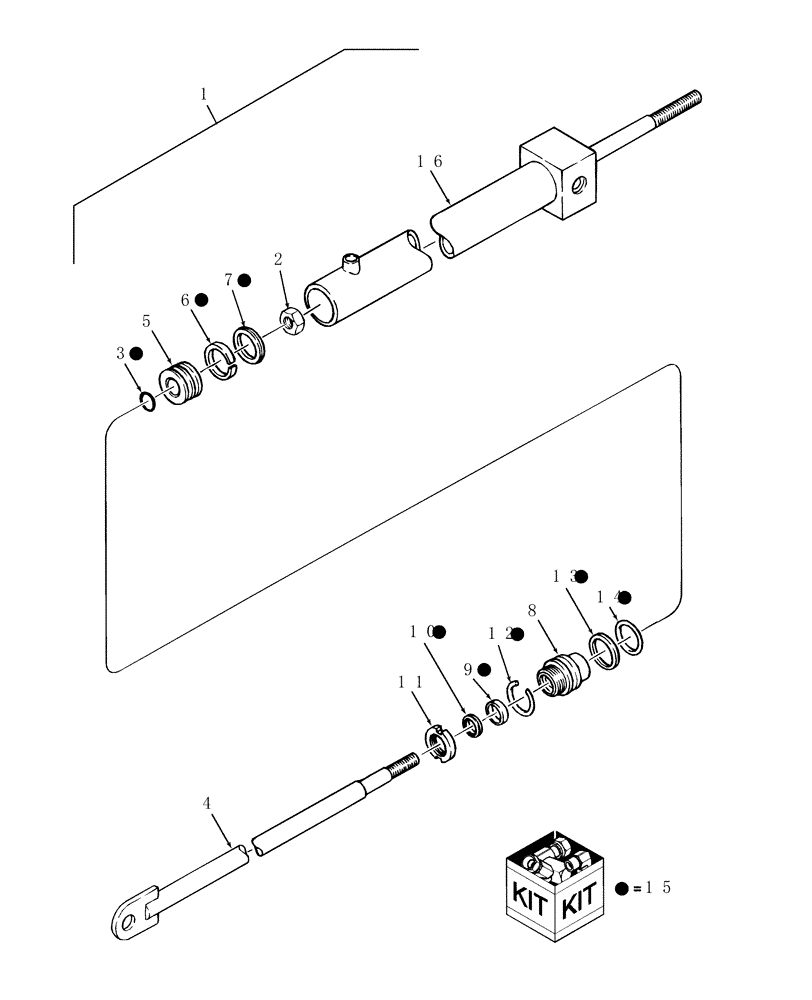

Запчасти Case IH RBX561 (017[2]) - HYDRAULIC CYLINDER, RH BALE TENSION (35) - HYDRAULIC SYSTEMS

1

86637315

CYLINDER

Hydraulic, RH Bale Tension

1шт.

2

9602227

LOCK NUT,5/8"-18, GC

2шт.

3

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

4

86518722

ROD

2шт.

5

786002

PISTON

2шт.

6

771705

RING

Wear, 2.004" ID x .50" Thick

2шт.

7

86553483

SEAL

3 Piece, Piston

2шт.

8

86520002

CYLINDER HEAD

2шт.

9

9616363

SEAL,25.4mm ID x 31.5mm OD x 6.35mm Thk

2шт.

10

121189

OIL SEAL

Wiper, 1-1/4" OD x 1/8" Thick

2шт.

11

86634531

BEARING LOCK NUT

Bearing, 1-3/4"-16

2шт.

12

512016

SNAP RING

Int, 2.125"

2шт.

13

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

1.638" ID x .064" Thick

2шт.

14

238-5326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

2шт.

15

86605351

SEAL KIT

Includes: (2) Ref. 3 & 6, 7, 9, 10 & 12 - 14

2шт.

16

NSS

NOT SOLD SEPARAT

Barrel

1шт.
