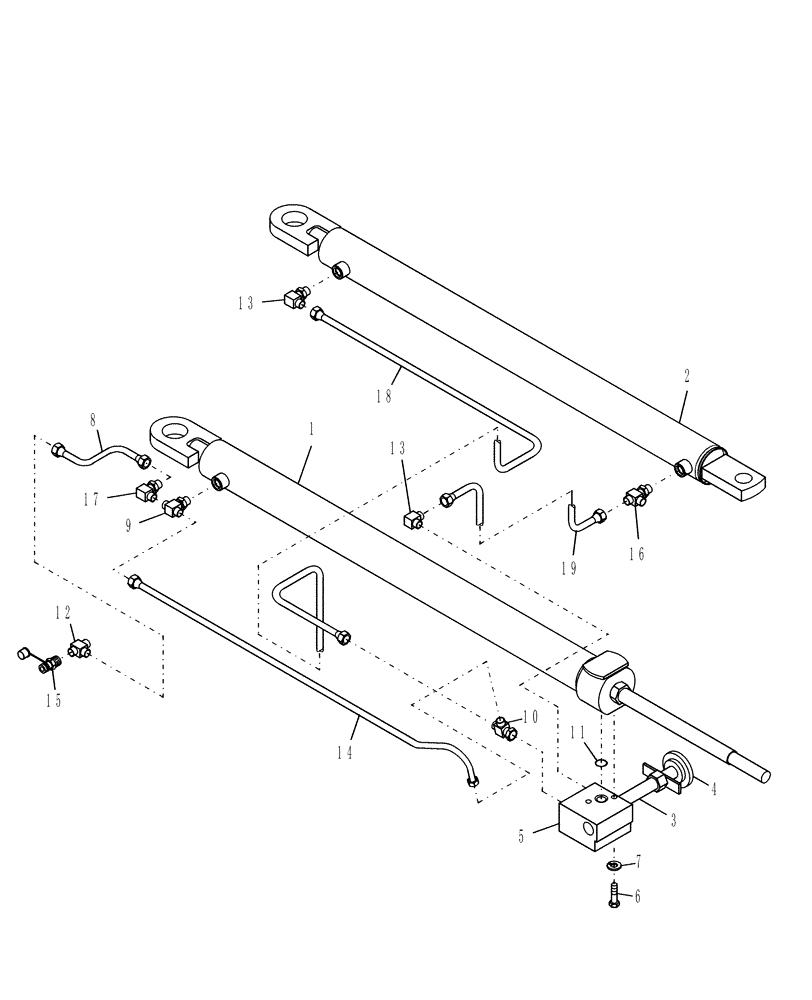

Запчасти Case IH RBX561 (017[1]) - HYDRAULIC CYLINDERS, BALE TENSION (35) - HYDRAULIC SYSTEMS

1

86637315

CYLINDER

Hydraulic, RH Bale Tension, Serial Range: Refer-Fig.017-2

1шт.

2

86637002

HYDRAULIC CYLINDER

LH Bale Tension, Serial Range: Refer-Fig.017-3

1шт.

3

86520937

VALVE PRESSURE RELIE

1шт.

4

86505699

KNOB

1шт.

5

86601286

EXCHANGE VALVE PLATE

1шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

9847200

HOSE,6.35mm ID x 2184.4mm L, SAE 100R1

1шт.

9

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

10

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

11

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

12

9845229

COUPLING

Male

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube

2шт.

14

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

15

9845231

COUPLING, QUICK, FEM

E

1шт.

16

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

18

86521507

FLEXIBLE HOSE

1шт.

19

86521508

FLEXIBLE HOSE

1шт.
