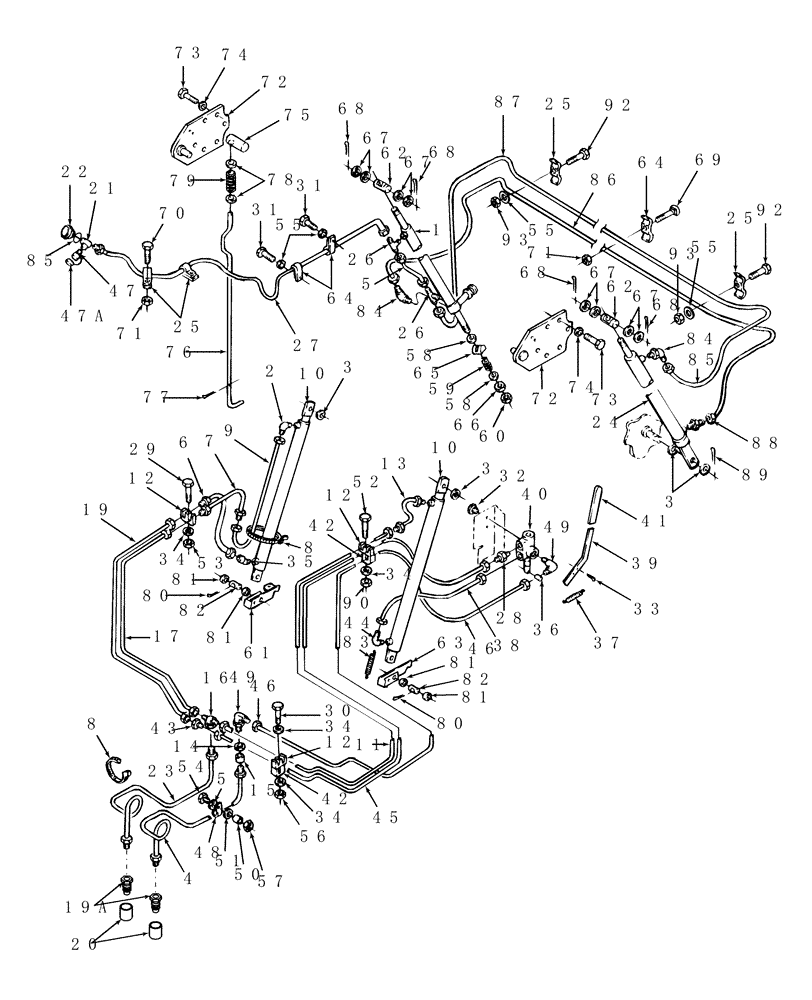

Запчасти Case IH RBX561 (016) - HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

86637315

CYLINDER

Hydraulic, Bale Tension, RH, Serial Range: Refer-Fig.017-2

1шт.

2

222-2129

ELBOW,90 Degree, Flareless, 9/16"-18

1шт.

3

495-11106

WASHER,1", SAE

2шт.

4

86568342

HOSE,12.7mm ID x 3098.8mm L

1шт.

5

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

6

86621185

HOSE

1шт.

7

781617

FLEXIBLE HOSE

1шт.

8

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

9

647624

TUBE,0.375" OD, 24.25" Length

1шт.

10

86637318

HYDRAULIC CYLINDER

Tailgate Lift, Refer to Fig. 017-4

2шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

10

87019624

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 685.8mm Stroke

Hydraulic, Tailgate Lift, Refer to Fig. 017-7

2шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

11

9843290

HYD TUBE

LH

1шт.

12

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

7шт.

13

86621186

HOSE

1шт.

14

86630002

ORIFICE,15.88mm OD x 5.08mm Thk

1шт.

15

86635143

COUPLING,3/4" - 16, 1-9/64" L

Straight Thread

1шт.

16

593930

NUT

Swivel Nut Branch

1шт.

17

9615956

TUBE

RH

1шт.

19

9846267

TUBE

1шт.

19a

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

1шт.

20

86532892

DUST CAP

Oil Drain

2шт.

21

86627339

HYD CONNECTOR

-04, Female, NPTF

1шт.

22

857072

GAUGE

3,000 PSI

1шт.

23

86568341

HOSE,9.53mm ID x 3225.8mm L

1шт.

24

86637002

HYDRAULIC CYLINDER

Bale Tension, LH, Refer to Fig. 017-3

1шт.

25

86637242

CLAMP

2шт.

26

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Pipe

1шт.

27

9847200

HOSE,6.35mm ID x 2184.4mm L, SAE 100R1

1шт.

28

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Straight

1шт.

29

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

3шт.

30

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

31

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

3шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

33

432-1212

COTTER PIN,3/16" x 3/4"

1шт.

34

495-21031

WASHER,1/4"

10шт.

35

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube w/ O-Ring

1шт.

36

435-1614

GROOVED PIN,3/16" x 7/8", Type A

1шт.

37

217465

SPRING

Extension

1шт.

38

9826735

FLEXIBLE HOSE

1шт.

39

86637307

HANDLE

1шт.

40

9822383

HYDRAULIC VALVE

1шт.

9848054

SEAL KIT

1шт.

41

9822419

HANDLE

1шт.

42

604900

CLAMP

Single, 1/2" Tubing

4шт.

43

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

(Union)

1шт.

44

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube

1шт.

45

86505103

HYD TUBE

LH

1шт.

514926

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

222-1584

FERRULE,Flareless, 3/8" Tube

2шт.

46

86505102

HYD TUBE

LH

1шт.

47

9845229

COUPLING

Male, Includes: Ref. 30

1шт.

47a

9845230

DUST CAP

1шт.

48

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

3шт.

49

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

50

86500987

SPACER

1шт.

51

495-21044

WASHER,3/8"

2шт.

52

433-436

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/4", Gr 5

5шт.

53

832-46406

NUT,M6 x 1, Cl 8

3шт.

54

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

55

495-21038

WASHER,5/16"

4шт.

56

280129

NUT,1/4"-20

6шт.

57

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

58

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

59

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

60

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

61

86637320

LATCH

RH

1шт.

62

86637228

PIN,38.1mm OD x 91.5mm L

2шт.

63

86637323

LATCH

LH

1шт.

64

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

6шт.

65

226131

PIVOT

Pivot

1шт.

66

425-1014

NUT,7/8"-9, G5

1шт.

67

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

8шт.

68

432-1232

COTTER PIN,3/16" OD x 2" L

4шт.

69

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

1шт.

70

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

71

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

72

86637243

PLATE ASSY.

2шт.

73

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

10шт.

74

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

10шт.

75

9845448

PIN,31.7mm OD x 83.7mm L

1шт.

76

86637214

ROD

1шт.

77

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

78

495-21044

WASHER,3/8"

2шт.

79

86628108

SPRING

1шт.

80

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.

81

9829271

SPACER

2шт.

82

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

83

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

2шт.

84

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube

2шт.

85

86546256

WASHER,64.29mm ID x 82.55mm OD x 1.7mm Thk

Black

1шт.

86

86521508

FLEXIBLE HOSE

1шт.

87

86521507

FLEXIBLE HOSE

Upper

1шт.

88

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Hydraulic Run

1шт.

218-754

CAP,37 Degree, 9/16"-18

6, Hex

1шт.

89

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

90

280129

NUT,1/4"-20

6шт.

92

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

93

832-46408

NUT,M8 x 1.25, Cl 8

2шт.
