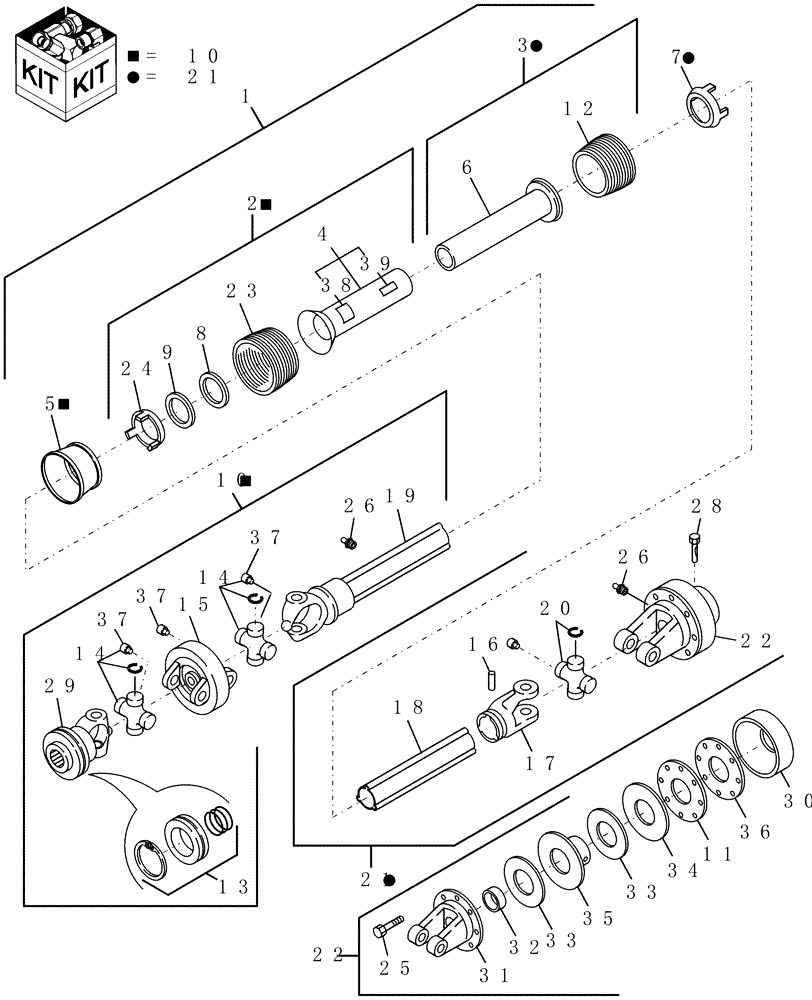

Запчасти Case IH RBX561 (013) - POWER TAKE OFF, 540 RPM, W/ SLIP CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

NSS

NOT SOLD SEPARAT

Power Take Off, 540 RPM W/ Slip Clutch {86616327}

1шт.

Order Components

1шт.

2

86625858

KIT

1шт.

3

86625859

KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Outer Cone with Tube, Includes: Ref. 38 & 39

1шт.

5

NSS

NOT SOLD SEPARAT

Shield

1шт.

6

NSS

NOT SOLD SEPARAT

Inner Cone with Tube

1шт.

7

86625852

RING NUT

1шт.

8

86625851

RING NUT

1шт.

9

NSS

NOT SOLD SEPARAT

Cone

1шт.

10

86625856

PTO SHAFT

1шт.

11

86625868

SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

13

86625855

KIT

1шт.

14

86625850

U-JOINT SPIDER

2шт.

15

86625844

BODY

1шт.

16

86625846

PIN

1шт.

17

86625848

YOKE

1шт.

18

86625845

TUBE,962 mm L

1шт.

19

86625847

TUBE,967.50 mm L

1шт.

20

86625842

BEARING ASSY

1шт.

21

86625872

JOINT

W/ Clutch

1шт.

22

86625849

PTO CLUTCH

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

86625854

RING NUT

1шт.

25

87012736

BOLT AND NUT

Includes: Nut

8шт.

26

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

28

86625865

KIT

Tapered

1шт.

29

86625841

YOKE

1шт.

30

86625869

SPACER

1шт.

31

86625860

CLUTCH PLATE

1шт.

32

86625861

BUSHING

1шт.

33

86625862

DISC

2шт.

34

86625863

THRUST PLATE

1шт.

35

86625864

HUB

1шт.

Ref. 28 Included

1шт.

36

86625867

SPRING

1шт.

37

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

38

849471

DANGER DECAL

English

1шт.

38

849482

DANGER DECAL

French

1шт.

39

849472

DANGER DECAL

English

1шт.

39

849483

DANGER DECAL

French

1шт.
