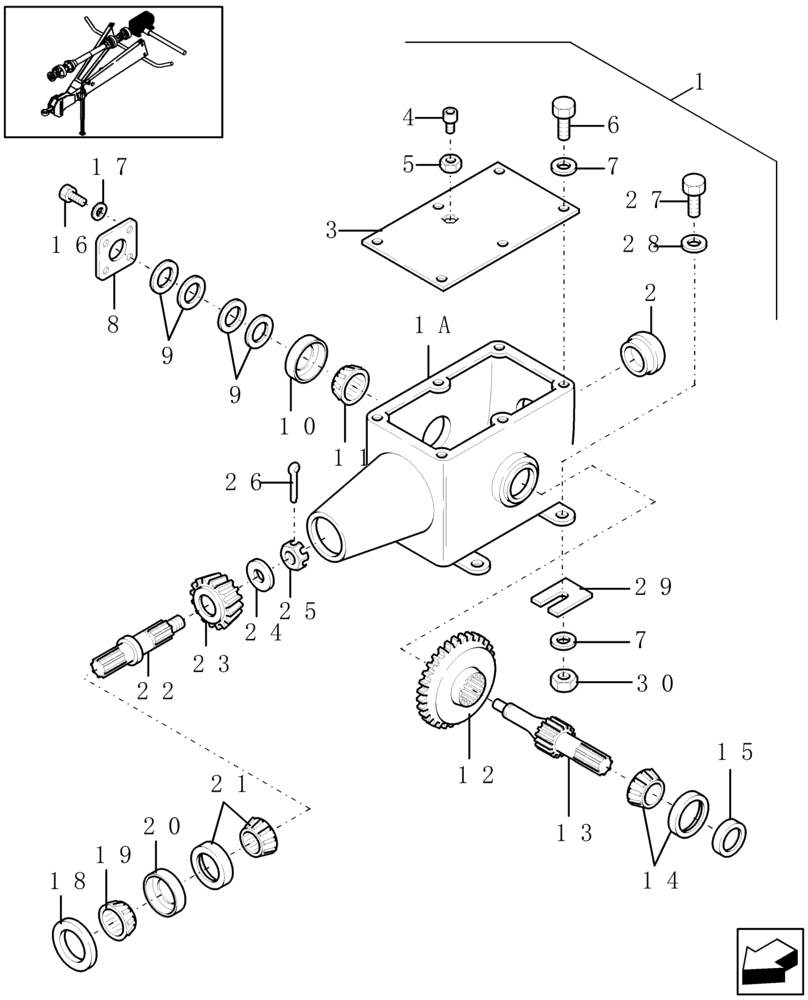

Запчасти Case IH RBX561 (003) - GEARBOX, MAIN DRIVE, 540 RPM (14) - MAIN GEARBOX & DRIVE

1

86636907

GEARBOX

Main Drive, 540 RPM

1шт.

1a

86636905

CASE

Housing

1шт.

2

249129

DUST CAP

1шт.

3

86636748

LID

1шт.

4

572820

BREATHER

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

495-21038

WASHER,5/16"

6шт.

8

86636798

COVER

1шт.

9

855606

KIT

Shim

1шт.

10

651814R1

BEARING CUP

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

787113

GEAR

36T

1шт.

13

787117

SHAFT

1шт.

14

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

Tapered

1шт.

15

634036

OIL SEAL

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

495-21038

WASHER,5/16"

4шт.

18

9829219

SEAL

Double Lip

1шт.

19

41480

BEARING CONE,38.11mm ID x 25.65mm W

1шт.

20

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

Tapered Roller

1шт.

21

9829250

BEARING ASSY,38.1mm ID x 85.72mm OD x 30.16mm W

1шт.

22

9842028

SHAFT

Input

1шт.

23

787112

BEVEL PINION

20T

1шт.

24

86635013

WASHER

1-7/8" OD

1шт.

25

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

26

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

27

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

4шт.

28

55-2065

LOCK WASHER,Type TW-065

1-3/8" OD

4шт.

29

163962

SHIM,.015" Thk

1шт.

30

825-1416

NUT,M16, Cl 8

4шт.
