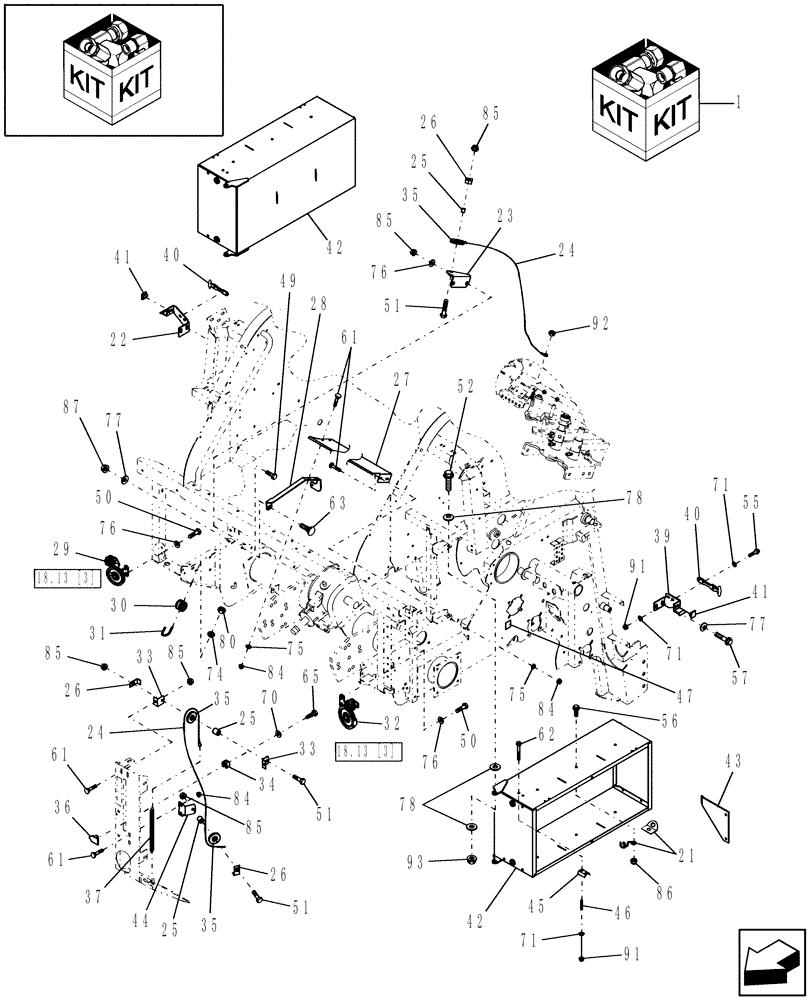

Запчасти Case IH RBX553 (18.17[2]) - TWINE CONVERSION KIT (18) - ACCESSORIES

1

87692774

CONVERSION KIT

Twine Conversion, Includes: Ref. 22 - 93 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

21

86618572

GUIDE

Twine, Spring Steel

6шт.

21

86637283

GUIDE

Twine, Formed Style

2шт.

Optional

1шт.

22

87025227

BRACKET

RH

1шт.

23

86629572

ANGLE

1шт.

24

86629733

CABLE

1шт.

25

696365

SPACER

3шт.

26

689987

ANGLE

3шт.

27

86632714

SHIELD

1шт.

28

87015063

BRACKET

1шт.

29

0C

ORDER COMPONENTS

Spinner Plate, RH

1шт.

30

86543545

GUIDE

2шт.

31

28114

U-BOLT

#10-24 x 1-15/16"

2шт.

32

0C

ORDER COMPONENTS

Spinner Plate, LH

1шт.

33

689986

ANGLE

2шт.

34

9619090

CAP COVER

1шт.

35

510932

PULLEY,50.01mm OD

3шт.

36

9612212

INDICATOR

Pointer

1шт.

37

217208

SPRING

Extension

1шт.

38

86629573

ANGLE

1шт.

39

86705178

BRACKET

1шт.

40

86000448

LATCH

Rubber

2шт.

41

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

2шт.

42

87036863

TWINE BOX

LH, Red

1шт.

North America

1шт.

Not Included in Kit. Shown for Reference Only.

1шт.

42

87036864

TWINE BOX

LH, Dk. Gray

1шт.

Europe & R.O.W.

1шт.

Included in Ref. 1 Kit

1шт.

43

86551339

DIVIDER

4шт.

44

87597244

ANGLE

1шт.

45

9820171

BRACKET

2шт.

46

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

15/32" OD, 1" Free Length

4шт.

47

165109

DECAL

Lube Fitting

3шт.

48

87036861

TWINE BOX

RH, Red

1шт.

North America

1шт.

Not Included in Kit. Shown for Reference Only.

1шт.

48

87036862

TWINE BOX

RH, Dk. Gray

1шт.

Europe & R.O.W.

1шт.

Included in Ref. 1 Kit

1шт.

49

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

50

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

51

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

52

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

55

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

56

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

6шт.

57

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

61

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

62

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

4шт.

63

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

65

281020

SELF-TAP SCREW,Pan HD, #8 - 18 x 3/4"

1шт.

70

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

1шт.

71

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

12шт.

74

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

6шт.

75

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

76

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

77

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

78

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

80

87304

NUT,#10-24

4шт.

84

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

85

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

86

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

87

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

91

353308

NUT,M6 x 1.0, Cl 8

8шт.

92

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

93

100038

NUT,M12 x 1.75, Cl 8

6шт.
