(15.05[1]) - ELECTRIC TWINE WRAP, SHIELDS, PRIOR TO P.I.N. Y6N016413

Запчасти Case IH RBX553 (15.05[1]) - ELECTRIC TWINE WRAP, SHIELDS, PRIOR TO P.I.N. Y6N016413 (15) - KNOTTER /WRAPPER

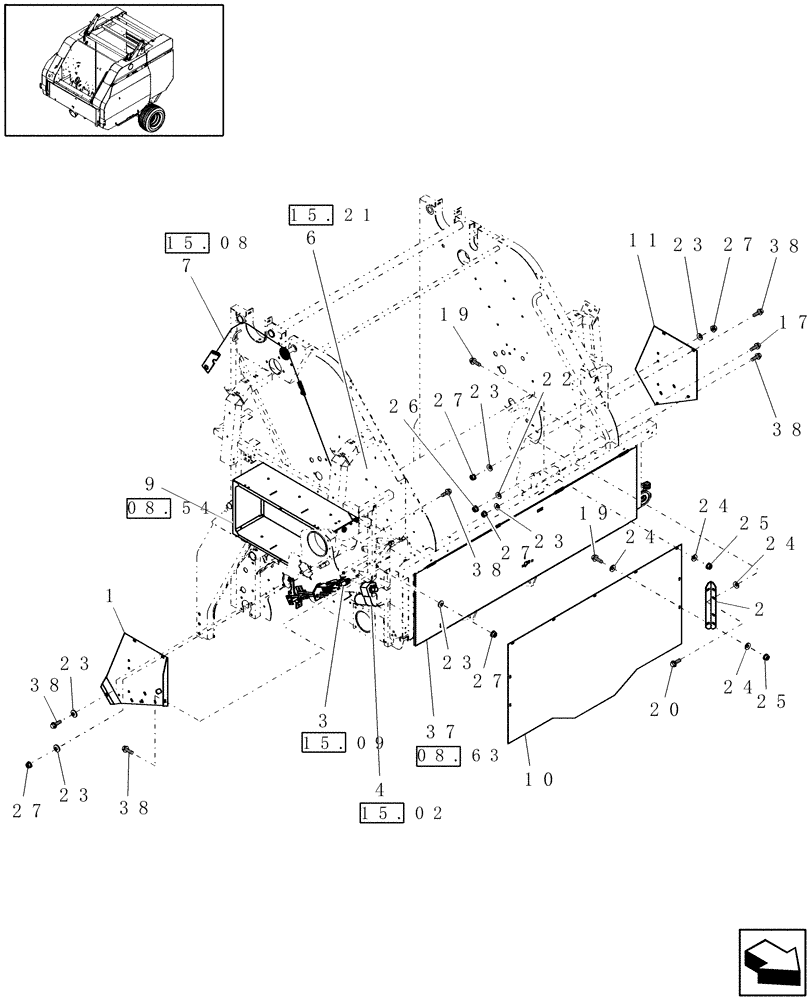

Схема запчастей Case IH RBX553 - (15.05[1]) - ELECTRIC TWINE WRAP, SHIELDS, PRIOR TO P.I.N. Y6N016413 (15) - KNOTTER /WRAPPER
19
23
38
20
17
23
15.08
15.21
15.09
15.02
08.63
08.54
38
27
38
27
24
7
24
38
23
22
6
25
24
24
3
26
19
1
23
27
25
11
2
23
27
38
10
27
23
37
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87054829

SHEET ASSY.

RH

1шт.

2

87046080

ANGLE

2шт.

3

0C

ORDER COMPONENTS

Counter, Electric Twine Wrap

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

0C

ORDER COMPONENTS

Trip, Electric Twine Wrap

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

87046106

SHIELD

Rubber

1шт.

11

87054828

SHEET ASSY.

LH

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

9шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

24

495-21038

WASHER,5/16"

16шт.

25

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

37

87014359

DOOR ASSY.

Twine Wrap, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
