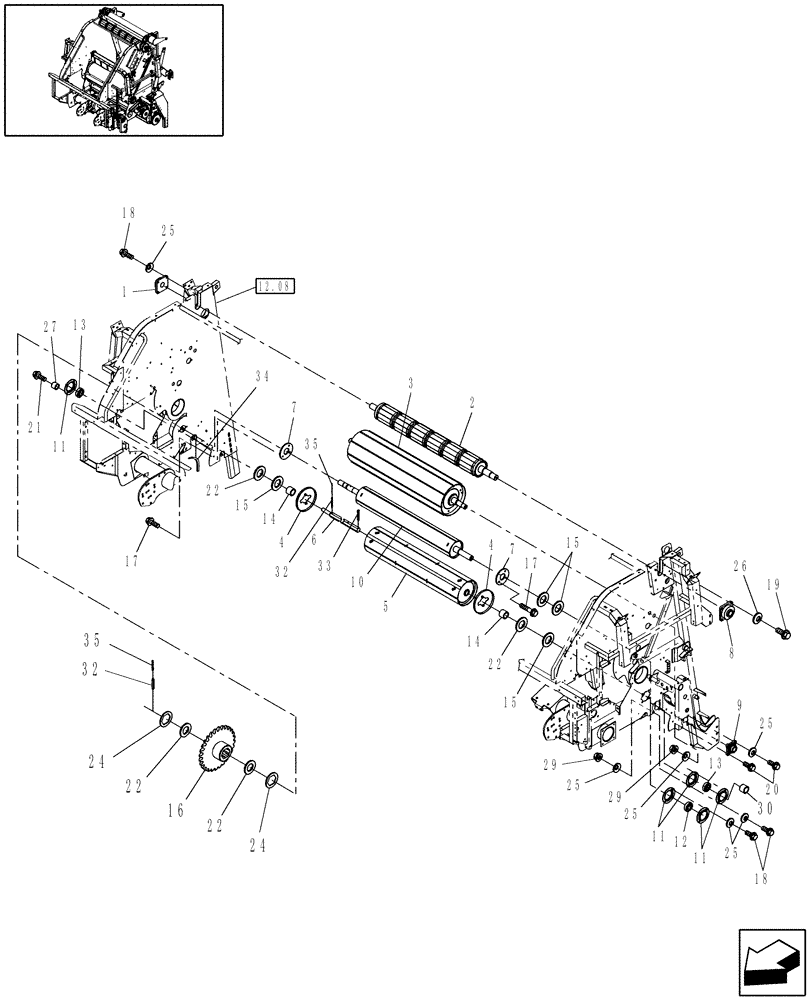

Запчасти Case IH RBX553 (14.54) - MAIN FRAME & ROLLS (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1шт.

2

87027871

ROLL

Drive

1шт.

3

86600450

ROLLER

Floor, Includes: Round Rods

1шт.

3

86628106

SHIELD

14 mm Flange

2шт.

4

87025815

SHIELD

18 mm Flange

2шт.

5

86615686

ROLL

Fixed, Includes: Round Rods

1шт.

6

86615691

SHAFT

1шт.

7

86636760

RING

2шт.

8

86978595

BEARING ASSY

Endless Belt

1шт.

9

86590753

BEARING ASSY

2шт.

Prior to P.I.N. Y6N016413

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

P.I.N. Y6N016414 & After

1шт.

10

86624773

ROLL

Starter, Includes: Round Rods

1шт.

11

86837676

FLANGED BEARING

8шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

2шт.

13

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

87056511

SPROCKET

28T, RC60

1шт.

17

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

8шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

20шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

4шт.

24

87056525

WASHER

2шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

43414

SPACER

2шт.

29

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

30

86976003

SPACER

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

34

87039466

STRIPPER

2шт.

Welding Required

1шт.

35

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 35 Inside Ref. 32

1шт.

36

86602047

PIVOT PLATE

1шт.

37

86602143

WEAR PLATE

4шт.
