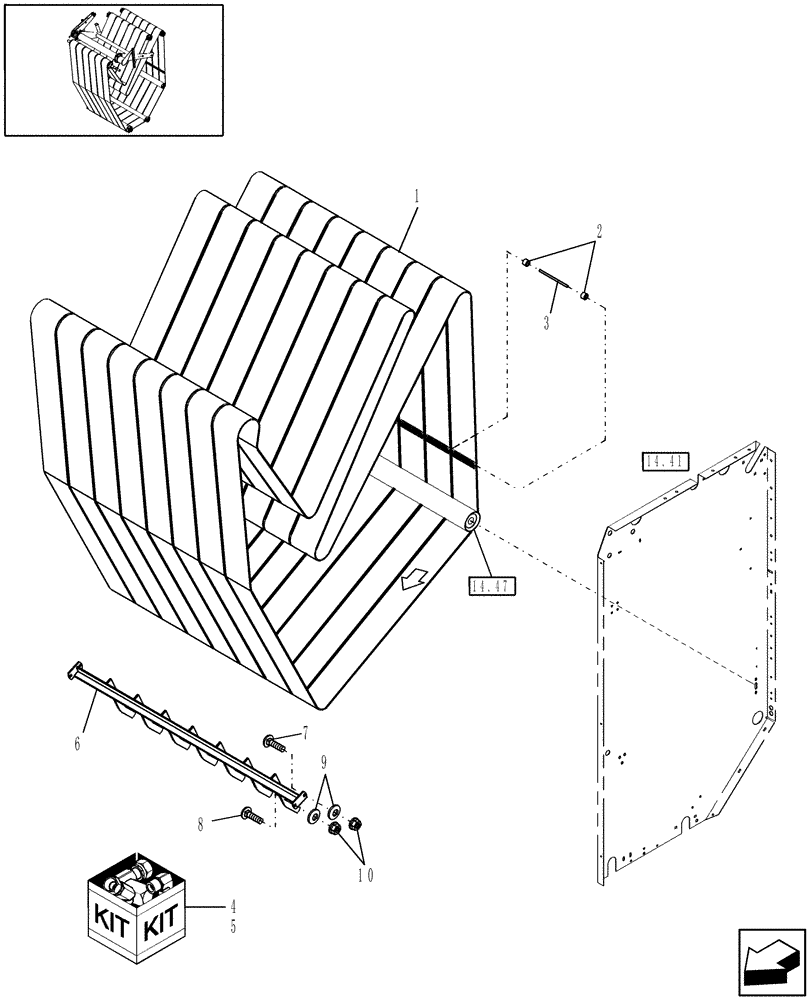

Запчасти Case IH RBX553 (14.03) - LACED CHEVRON BELT (14) - BALE CHAMBER

1

87056534

BELT,177.80 mm W x 8712.20 mm L

Laced Chevron

8шт.

2

9843258

TUBE

Lacing

16шт.

3

9843257

CABLE

Lacing

8шт.

4

86625980

DIA KIT, HARVESTER

Lacing Cable, Standard Duty, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

5

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

6

86977995

GUIDE

Belt, Front, Optional

1шт.

7

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.
