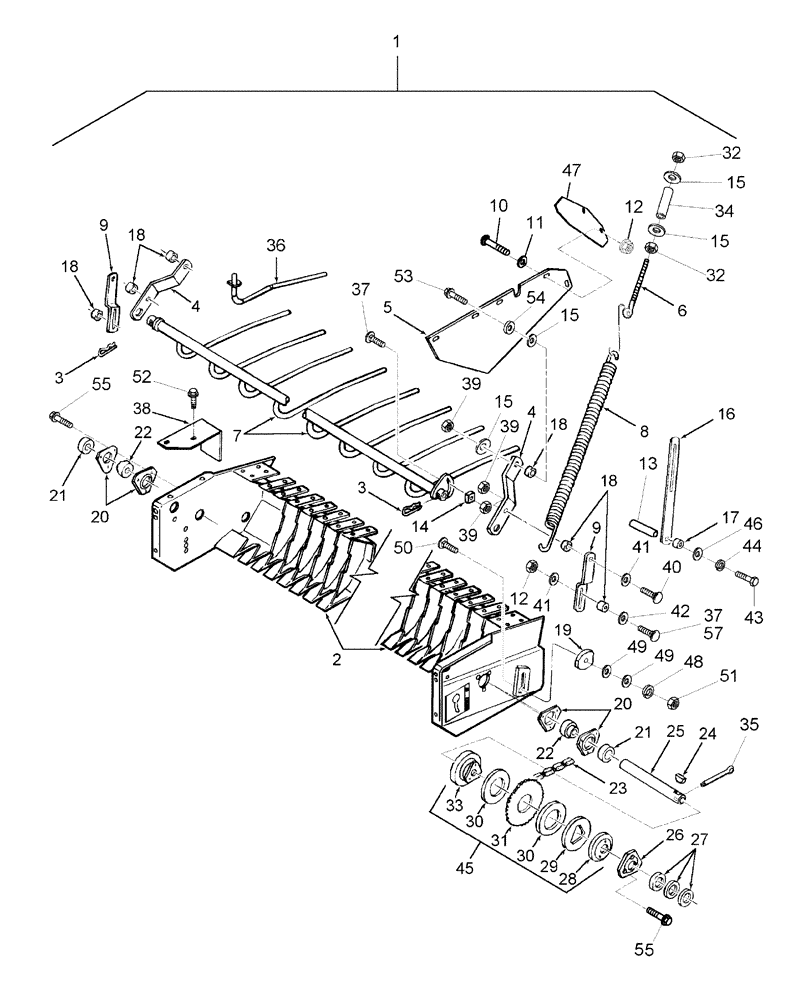

Запчасти Case IH RBX553 (13.140) - STANDARD PICKUP, FRAME, WINDGUARD & SLIP CLUTCH (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
87037383
PICK-UP
Standard, Includes: Fig. 13.140 & 13.145
1шт.
2
86633885
PICK-UP
Frame
1шт.
Prior to P.I.N. HBJ039346
1шт.
2
87041204
FRAME
Pickup
1шт.
P.I.N. HBJ039347 & After
1шт.
3
86000109
COTTER PIN
1/8" x 3-1/4"
2шт.
4
86636887
BAR
2шт.
5
86621364
SHIELD
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
6
708460
EYEBOLT
3/8"-16 x 7"
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
7
86636997
GUARD ASSY.
Windguard
1шт.
8
86553570
SPRING
Extension
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
9
86636888
CONNECTING LINK
2шт.
11
235126
WASHER,10.3mm ID x 38mm OD x 1.7mm Thk
Special
8шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
12
832-46410
NUT,M10 x 1.5, Cl 8
8шт.
13
86636721
SPACER
1шт.
14
44612
SPACER
Washer
2шт.
15
9827956
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
Hardened, 3/8"
4шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
16
86631192
ANGLE
1шт.
17
646056
SPACER,13/32” ID x .750” OD x .338” Tk.
1шт.
18
698748
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
6шт.
19
86584050
IDLER
Nylon
1шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
20
662649R1
RETAINER
Bearing
4шт.
21
557115R11
COLLAR
2шт.
22
455960R92
BEARING, BALL,1.1255" ID x 2.4409" OD x 0.9375"
2шт.
23
9828289
CHAIN,A2050, 48 Links x 31.75mm = 1524mm
#2050, 48 Pitches, Drive, Includes: (1) 25193 Connector Link
1шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
24
126-32
WOODRUFF KEY,#21, 1/4" x 1 1/4"
1шт.
25
86512181
SHAFT
Pickup
1шт.
26
80707372
BRACKET
1шт.
27
673
WASHER,29mm ID x 41mm OD x 1.52mm Thk
6шт.
28
121092
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
1шт.
29
86627129
CLUTCH PLATE
1шт.
31
86536128
DRIVEN SPROCKET
& Bushing, 48T, Includes: Ref. 56
1шт.
32
425-106
NUT,3/8"-16, Cl 5
4шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
33
86635141
HUB
Clutch
1шт.
34
647474
SPACER
2-1/4"
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
35
432-1224
COTTER PIN,3/16" x 1-1/2"
1шт.
36
86636750
TINE
12шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
Welding Required
1шт.
Prior to P.I.N. HBJ039346
1шт.
P.I.N. HBJ039347 & After
1шт.
38
86637163
SHIELD
1шт.
39
832-46410
NUT,M10 x 1.5, Cl 8
4шт.
40
811-10040
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
2шт.
41
213404
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
3/16" x 13/32" ID x 1-1/2" OD
4шт.
42
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
1шт.
43
413-672
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
1шт.
44
492-11038
LOCK WASHER,3/8"
1шт.
45
86635138
SLIP CLUTCH
1шт.
46
58225
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
Special, 1-1/4" OD
1шт.
47
86621363
PLATE
1шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
48
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
49
495-21056
WASHER,1/2"
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
50
811-12080
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8
1шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
51
825-1412
NUT,M12, Cl 8
1шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
52
677808
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
HWH, 1/4"-20 x 5/8"
1шт.
53
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
54
86643939
SPACER
5/8" Thk
2шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
55
905-10020
BOLT,Hex Flg, M10 x 20mm
4шт.
Prior to P.I.N. HBJ039346
1шт.
55
905-10020
BOLT,Hex Flg, M10 x 20mm
2шт.
P.I.N. HBJ039347 & After
1шт.
56
49686
BUSHING,76mm ID x 82.68mm OD x 7.62mm L
1шт.
Shown for Reference Only. Not Included with Ref. 1
1шт.
Not Illustrated
1шт.
57
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
2шт.
P.I.N. HBJ039347 & After
1шт.
Выбрано товаров: 86
