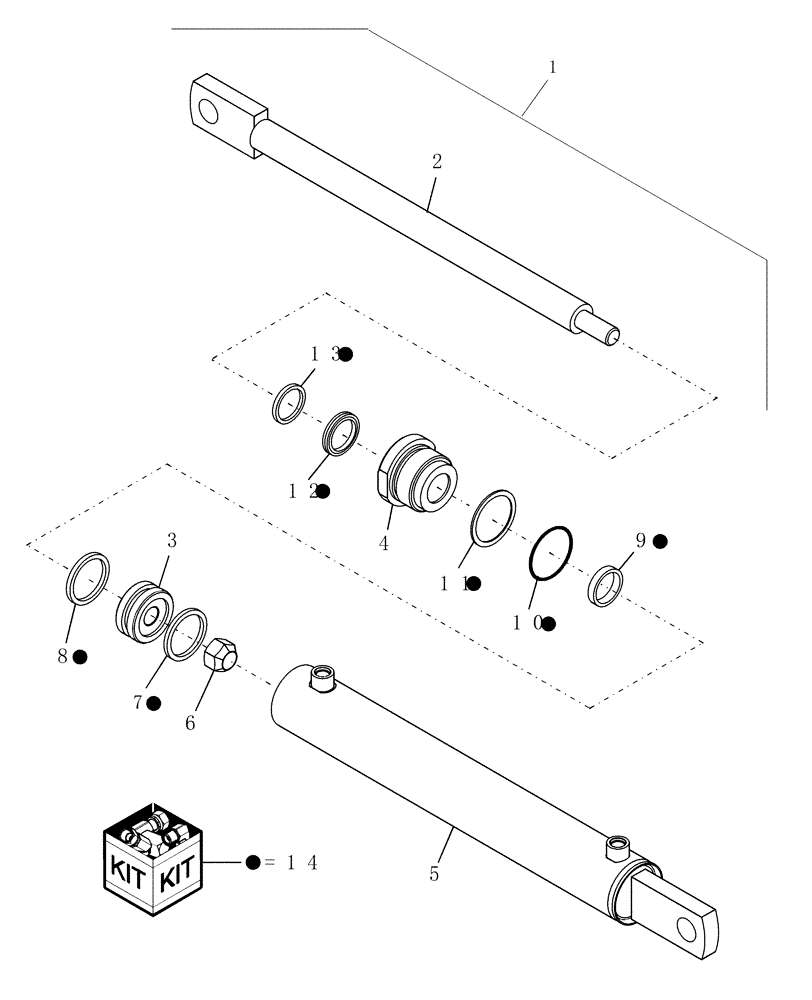

Запчасти Case IH RBX553 (07.32) - HYDRAULIC CYLINDER, TAILGATE LIFT (07) - HYDRAULIC SYSTEM

1

87020744

HYDRAULIC CYLINDER

Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

87025722

PISTON ROD

1шт.

3

87027474

PISTON

1шт.

4

87027467

HEAD

Cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

Barrel

1шт.

6

280724

LOCK NUT,3/4" - 16

1шт.

7

771701

WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk

1шт.

8

86570920

SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk

3 Pc. Seal, 2.25" Piston

1шт.

Components are N.S.S.

1шт.

9

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1.250" ID x .50" Thk.

1шт.

10

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

1шт.

11

86502705

SEAL,50.9mm ID x 56.74mm OD x 1.27mm Thk

Back-Up, 2.147" ID x .040" Thk.

1шт.

12

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

13

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

14

87027479

SEAL KIT

1шт.
