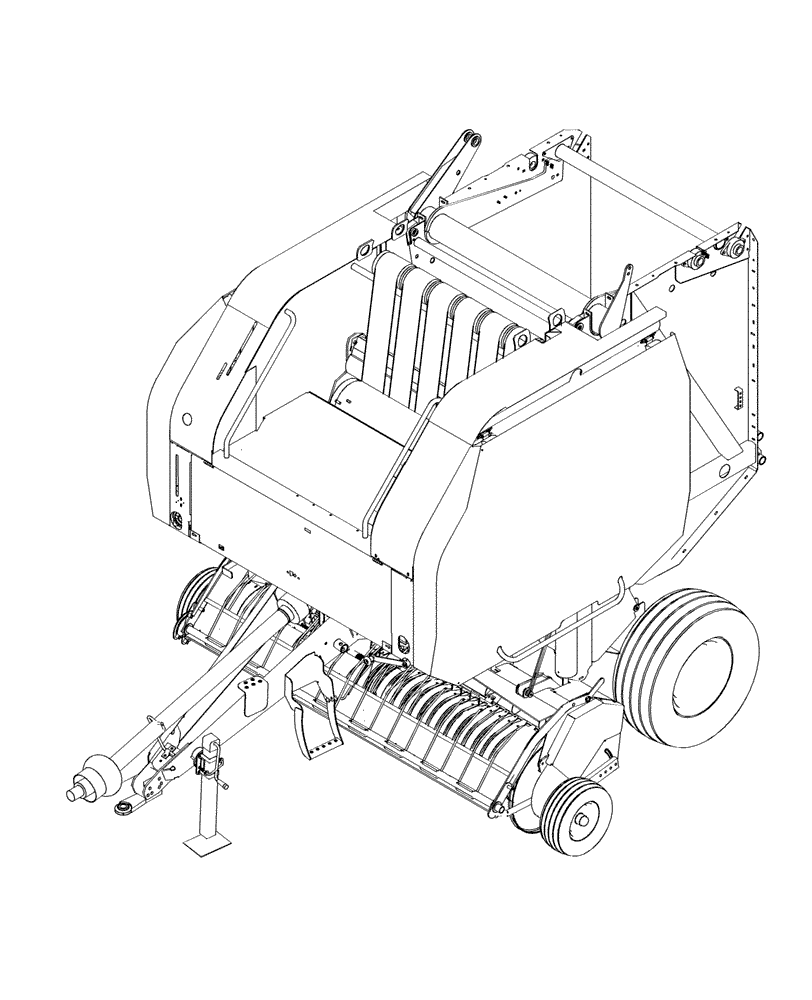

Запчасти Case IH RBX553 (PARTS[RBX553]) - DEALER PARTS STOCKING LIST FOR 5 MACHINES (00) - GENERAL

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

Net Wrap Units

6шт.

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

1шт.

66614

SPROCKET,RC80, 13T

13T, Includes: Bearing 144819C91

1шт.

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Sledge Roll Drive Slip Clutch

2шт.

617945

KNIFE SECTION

Twine Cutting

2шт.

857072

GAUGE

3,000 PSI, Bale Density

1шт.

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

Tailgate Idler Roll

4шт.

9803325

SUPPORT

Dimple Roll

1шт.

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

Net Wrap

4шт.

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive

1шт.

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

2шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

2шт.

84015292

LATCH

Front & Side Door Latch

1шт.

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Follower Roll

2шт.

86570919

SEAL KIT

Tailgate Lift Cylinder

1шт.

86590751

BEARING ASSY,40mm ID

Tailgate & Backwrap Rolls, Includes: 563733 Lock Collar

4шт.

86590753

BEARING ASSY

2шт.

86594422

SENSOR

Tailgate & Rotor Knife

1шт.

86605351

SEAL KIT

1шт.

86609558

BEARING ASSY,45mm ID

3шт.

86614686

GEAR

24T, Sledge Roll

1шт.

86625862

DISC

PTO Slip Clutch

2шт.

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions, NA & AUS Units

5шт.

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

86978595

BEARING ASSY

Endless Belt

1шт.

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

86984909

BUSHING

PTO Slip Clutch

1шт.

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

1шт.

87019854

SWITCH

Hall Effect

1шт.

87030468

HUB

Dimple Roll

2шт.

86632007

FINGER

36шт.

87041202

GUARD ASSY.

5шт.

87056534

BELT,177.80 mm W x 8712.20 mm L

Laced Chevron

8шт.

87056536

LACING, BELT

X Chevron, Repair Section, 72"

2шт.
