Запчасти Case IH RBX552 (15.05) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER

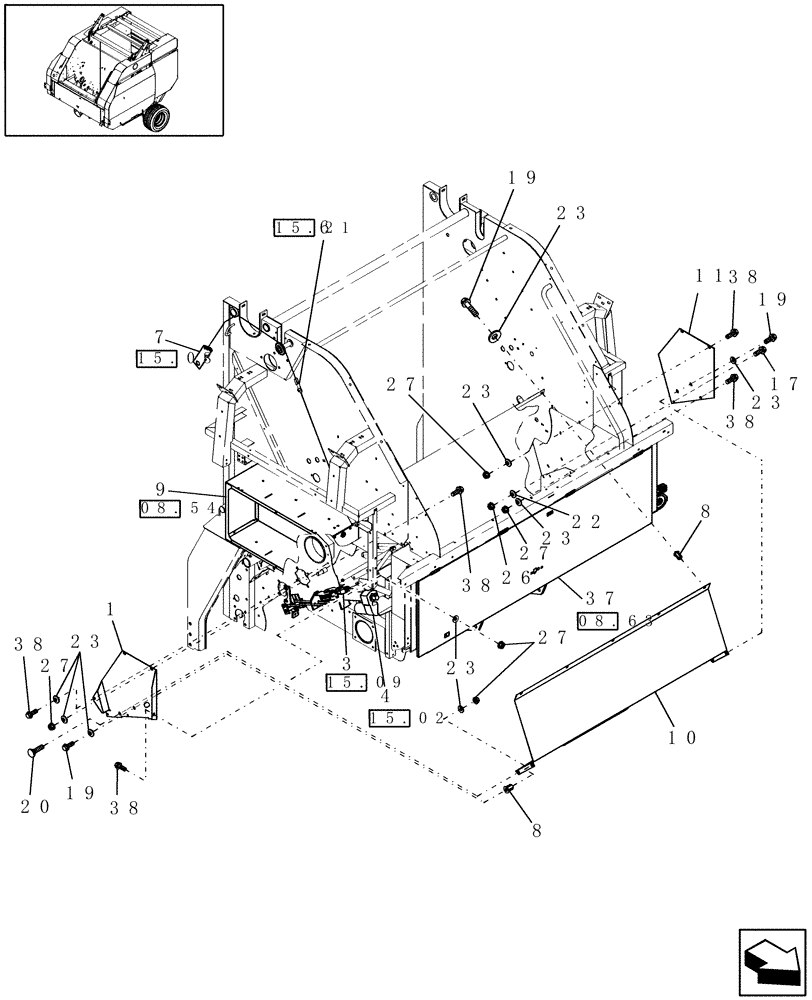

Схема запчастей Case IH RBX552 - (15.05) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER
19
26
23
38
10
15.09
15.08
27
17
6
27
23
27
23
23
20
1
23
7
8
9
11
08.54
8
3
15.02
23
19
22
27
38
38
08.63
37
38
4
38
15.21
19

Артикул

Название

Примечание

Количество

1

86632619

SHEET

RH

1шт.

3

0C

ORDER COMPONENTS

Counter, Electric Twine Wrap

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

NSS

NOT SOLD SEPARAT

Trip, Electric Twine Wrap

1шт.

8

86610200

THREADED INSERT,M8 x 1.25

M8

8шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

86900410

SHIELD

1шт.

11

86632618

SHEET

LH

1шт.

13

NSS

NOT SOLD SEPARAT

Wire Harness, Electric Twine Wrap

1шт.

Not Illustrated

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

9шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

37

87014359

DOOR ASSY.

Twine Wrap, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.

Выбрано товаров: 21
