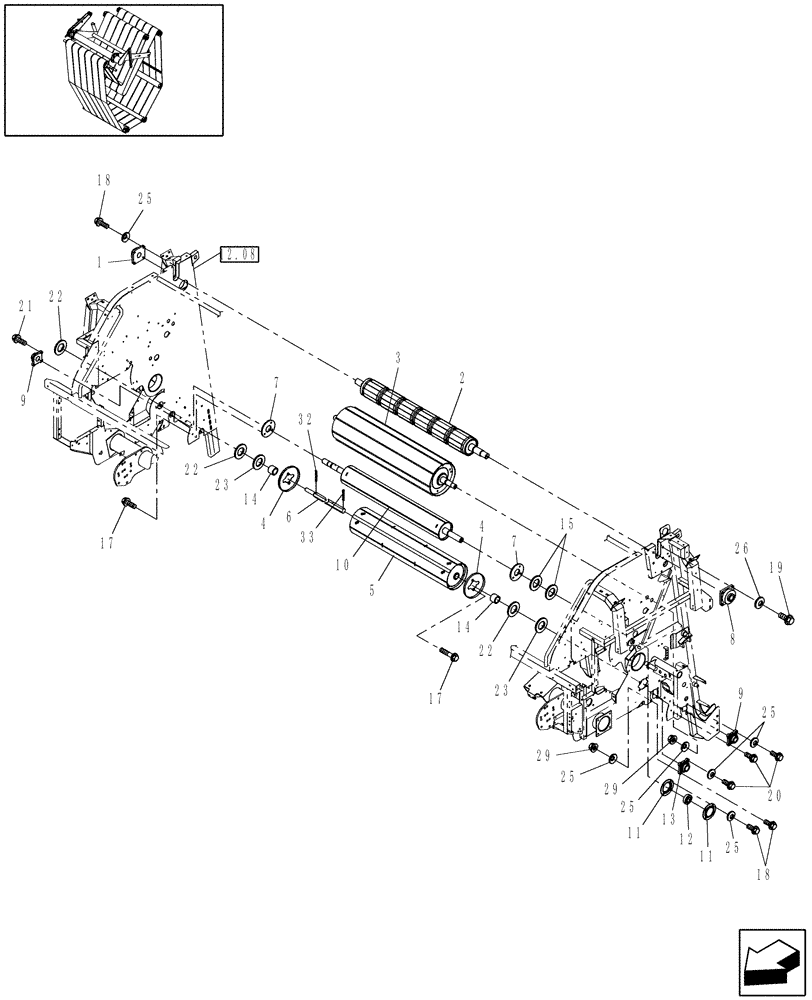

Запчасти Case IH RBX552 (14.54[1]) - MAIN FRAME & ROLLS, PRIOR TO P.I.N. HBJ039044 (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1шт.

2

86599042

ROLLER

Drive

1шт.

3

86600450

ROLLER

Floor, Includes: Round Rods

1шт.

4

86628106

SHIELD

2шт.

5

86615686

ROLL

Fixed, Includes: Round Rods

1шт.

6

86615691

SHAFT

1шт.

7

86636760

RING

2шт.

8

86978595

BEARING ASSY

Endless Belt

1шт.

9

86590753

BEARING ASSY

2шт.

10

86624773

ROLL

Starter, Includes: Round Rods

1шт.

11

86837676

FLANGED BEARING

4шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

2шт.

13

86610638

BEARING ASSY,45mm ID

2шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

17

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

8шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

20шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

1шт.

23

238113

WASHER

1.8" ID x .036" Thk

1шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

29

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

31

219-417

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.
