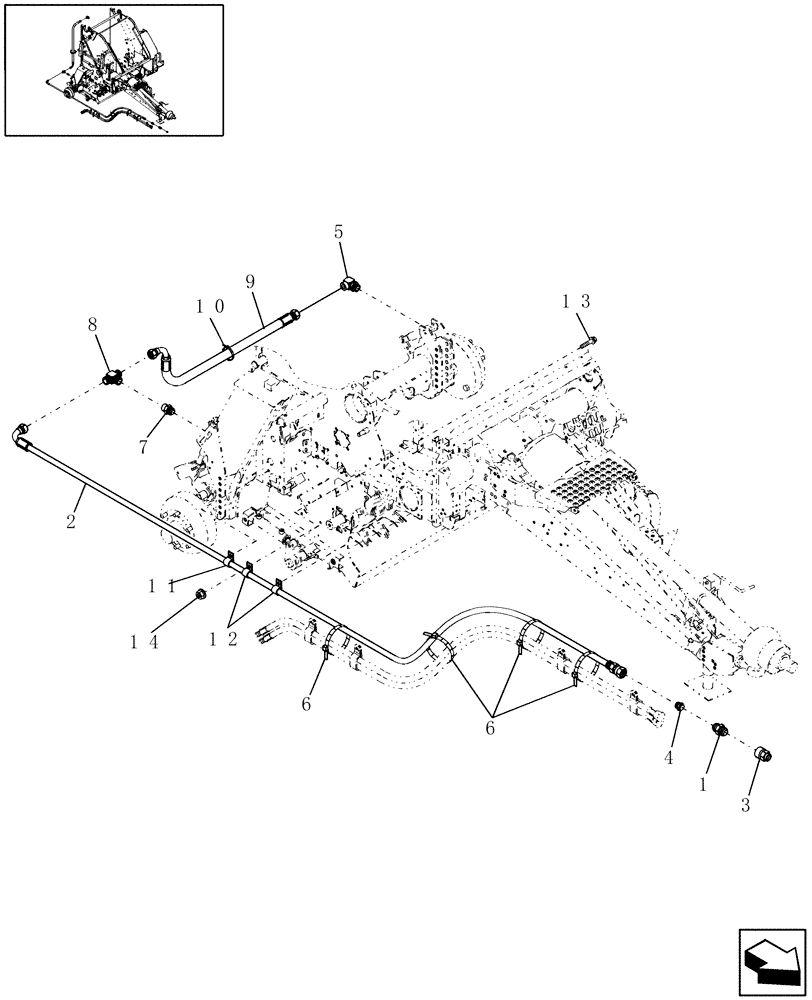

Запчасти Case IH RBX463 (11.35) - SAFETY BRAKE, HYDRAULIC (11) - WHEELS

1

9839028

HYD CONNECTOR,M18 x 1.5

Female

1шт.

2

87026874

HOSE,7.92mm ID x 129mm L, SAE 100R1

1шт.

3

395019

HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB

Male

1шт.

4

84078124

HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5

1шт.

5

9837647

ELBOW,90 Degree - 9/16" - 18 JIC 37 Degree x 3/8" BSPP

1шт.

6

249730

SECURING STRAP,8" L

1/8" x 8"

1шт.

7

9837622

HYD CONNECTOR,9/16" JIC x 3/8" BSPP

1шт.

8

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

9

87019827

HOSE,0.38" ID x 79.00", SAE 100R1

1шт.

10

594116

CABLE TIE,5/16" W x 21.5" L

CABLE STRAP 5/16" x 21-1/2"

4шт.

11

620019

CLAMP

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

13

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

14

832-46410

NUT,M10 x 1.5, Cl 8

1шт.
