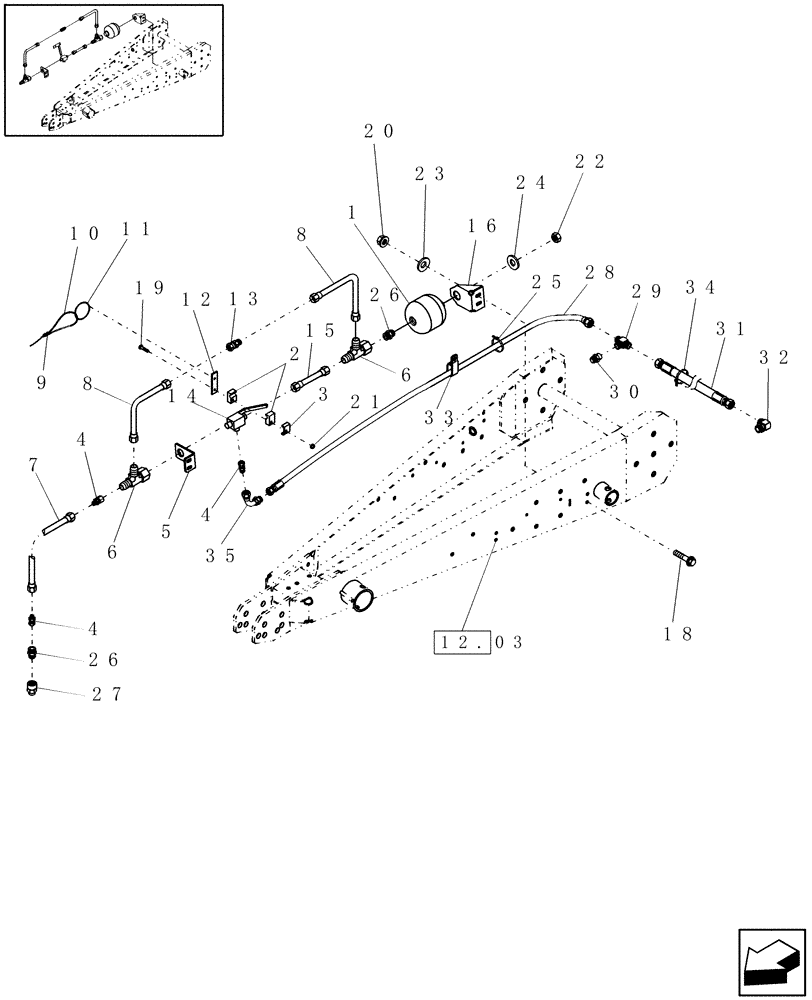

Запчасти Case IH RBX463 (11.30) - SAFETY BRAKE (11) - WHEELS

1

84018412

ACCUMULATOR,0.5L

1шт.

2

433008

CLAMP

2шт.

3

87016345

SUPPORT

Single

1шт.

4

84078124

HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5

3шт.

5

87018976

ANGLE

1шт.

6

734031

HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female

Swivel Tee

2шт.

7

87019858

HOSE,0.38" ID x 67.00", SAE 100R1, SAE 100R17

1шт.

8

87026853

HYD TUBE,9.52 mm DIA x 69, 69 mm L

2шт.

9

84607248

WIRE CLAMP

1шт.

10

9839198

CABLE

1шт.

11

84078105

RING

1шт.

12

921153

PLATE

1шт.

13

84078038

VALVE,M16 x 1.5 x M16 x 1.5

Non Return

1шт.

14

84320121

DRAINCOCK/TAP SUPPLY,M16 x 1.5 x M16 x 1.5

1шт.

15

PL

PROCURE LOCALLY

Tube, Hydraulic

1шт.

84100003

1шт.

16

87020352

SUPPORT

1шт.

18

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

19

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

20

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

21

832-46406

NUT,M6 x 1, Cl 8

1шт.

22

308823

NUT,M28 x 1.5, Cl 8

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

140110

WASHER,31mm ID x 40mm OD x 3mm Thk

1шт.

25

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

26

395019

HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB

Male

2шт.

27

9839028

HYD CONNECTOR,M18 x 1.5

Female

1шт.

28

87026874

HOSE,7.92mm ID x 129mm L, SAE 100R1

1шт.

29

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

1шт.

30

9837622

HYD CONNECTOR,9/16" JIC x 3/8" BSPP

1шт.

31

87019827

HOSE,0.38" ID x 79.00", SAE 100R1

1шт.

32

9837647

ELBOW,90 Degree - 9/16" - 18 JIC 37 Degree x 3/8" BSPP

1шт.

33

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3/4", 13/32" Bolt

1шт.

34

594116

CABLE TIE,5/16" W x 21.5" L

CABLE STRAP 5/16" x 21-1/2"

3шт.

35

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.
