Запчасти Case IH RBX463 (08.36) - SHIELDS, RH (08) - SHEET METAL/DECALS

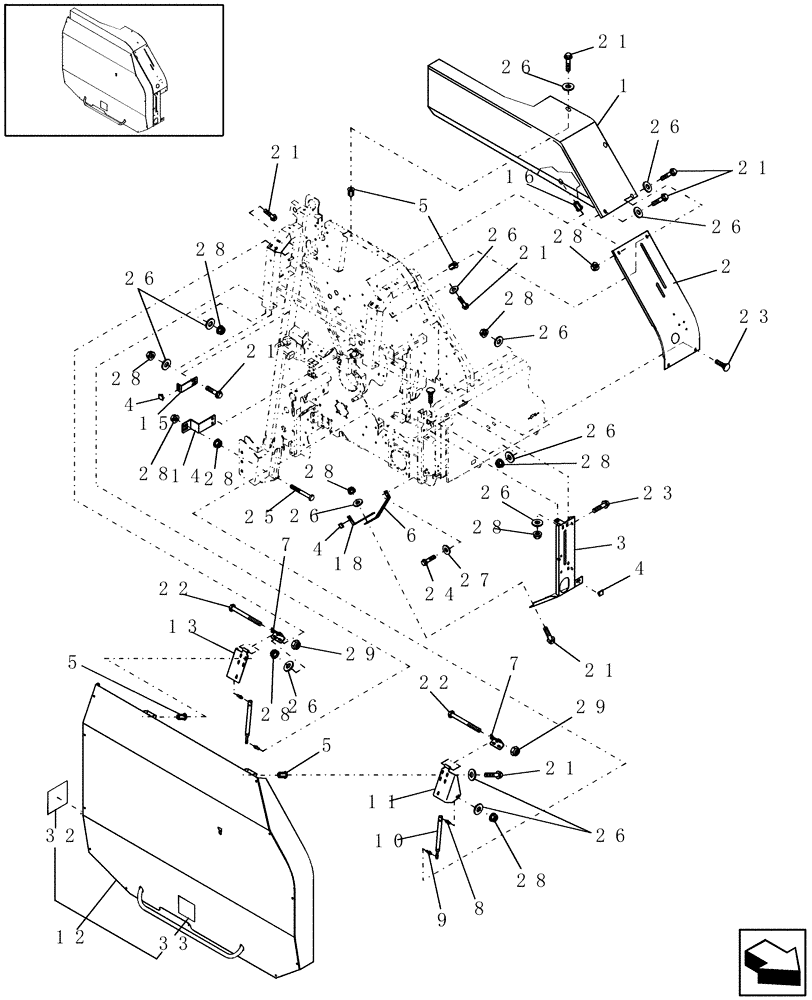

Схема запчастей Case IH RBX463 - (08.36) - SHIELDS, RH (08) - SHEET METAL/DECALS
16
13
23
6
26
21
14
10
3
24
21
21
18
28
12
28
28
21
26
26
28
28
23
5
4
29
26
1
32
33
28
25
28
4
4
11
26
21
26
26
26
27
8
21
22
26
28
28
26
26
15
9
21
7
28
7
22
29
5
28
5
2

Артикул

Название

Примечание

Количество

1

86629171

SHIELD

1шт.

2

86620776

SHIELD

RH, Corner

1шт.

3

86629129

SHIELD

RH

1шт.

4

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

Rubber, 3/16" Thk

3шт.

5

86610200

THREADED INSERT,M8 x 1.25

M8

15шт.

6

86637008

ANGLE

1шт.

7

87037410

HINGE

Lower, Square-Shaped

2шт.

8

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

Long, Ball End

2шт.

9

86634307

STUD

Short, Ball End

2шт.

10

86628348

GAS STRUT

2шт.

11

86837233

HINGE

1шт.

12

87041544

DOOR ASSY.

RH, North America, Includes: Ref. 32 & 33

1шт.

12

87041540

DOOR ASSY.

RH, Europe & R.O.W., Decals Ref. 32 & 33 are Not Included.

1шт.

13

86837232

HINGE

1шт.

14

87038687

ANGLE

168mm Lg.

1шт.

15

87037609

ANGLE

145mm Lg.

1шт.

16

86610198

INSERT,M6 x 1

2шт.

20

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

22шт.

22

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

23

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

24

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

2шт.

25

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

35шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

22шт.

29

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

32

86631518

DANGER DECAL

English

1шт.

32

86632801

DECAL

DANGER, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

33

86626958

WARNING DECAL

English

1шт.

33

86626961

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

Выбрано товаров: 33
