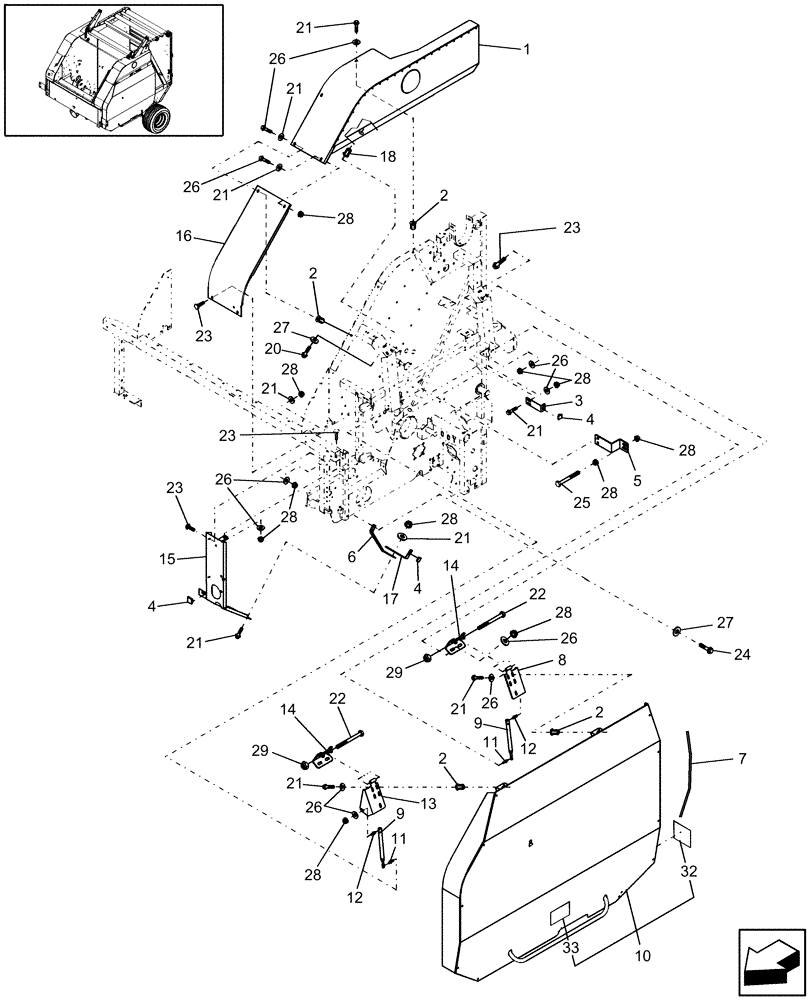

Запчасти Case IH RBX463 (08.32) - SHIELDS, LH (08) - SHEET METAL/DECALS

1

86629168

SHIELD

1шт.

2

86610200

THREADED INSERT,M8 x 1.25

M8

13шт.

3

87037609

ANGLE

145mm Lg.

1шт.

4

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

Rubber, 3/16" Thk

3шт.

5

87037610

ANGLE

168mm Lg.

1шт.

6

86637008

ANGLE

1шт.

7

86516805

SOFT TRIM,31-3/4" L

Edging

1шт.

8

86837233

HINGE

1шт.

9

86628348

GAS STRUT

2шт.

10

87041542

DOOR ASSY.

LH, North America, Includes: Ref. 32 & 33

1шт.

10

87041538

DOOR ASSY.

LH, Europe & R.O.W., Decals Ref. 32 & 33 are Not Included.

1шт.

11

86634307

STUD

Short, Ball End

2шт.

12

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

Long, Ball End

2шт.

13

86837232

HINGE

1шт.

14

87037410

HINGE

Lower, Square-Shaped

2шт.

15

86629127

SHIELD

LH

1шт.

16

86620774

SHIELD

LH, Corner

1шт.

18

86610198

INSERT,M6 x 1

2шт.

20

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

20шт.

22

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

23

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

24

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

2шт.

25

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

33шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

22шт.

32

86631518

DANGER DECAL

English

1шт.

32

86632801

DECAL

DANGER, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

33

86626958

WARNING DECAL

English

1шт.

33

86626961

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.
