(06.36) - ELECTRONIC CONTROL UNIT, ELECTRIC WRAP, EUROPE & R.O.W.

Запчасти Case IH RBX463 (06.36) - ELECTRONIC CONTROL UNIT, ELECTRIC WRAP, EUROPE & R.O.W. (06) - ELECTRICAL SYSTEMS

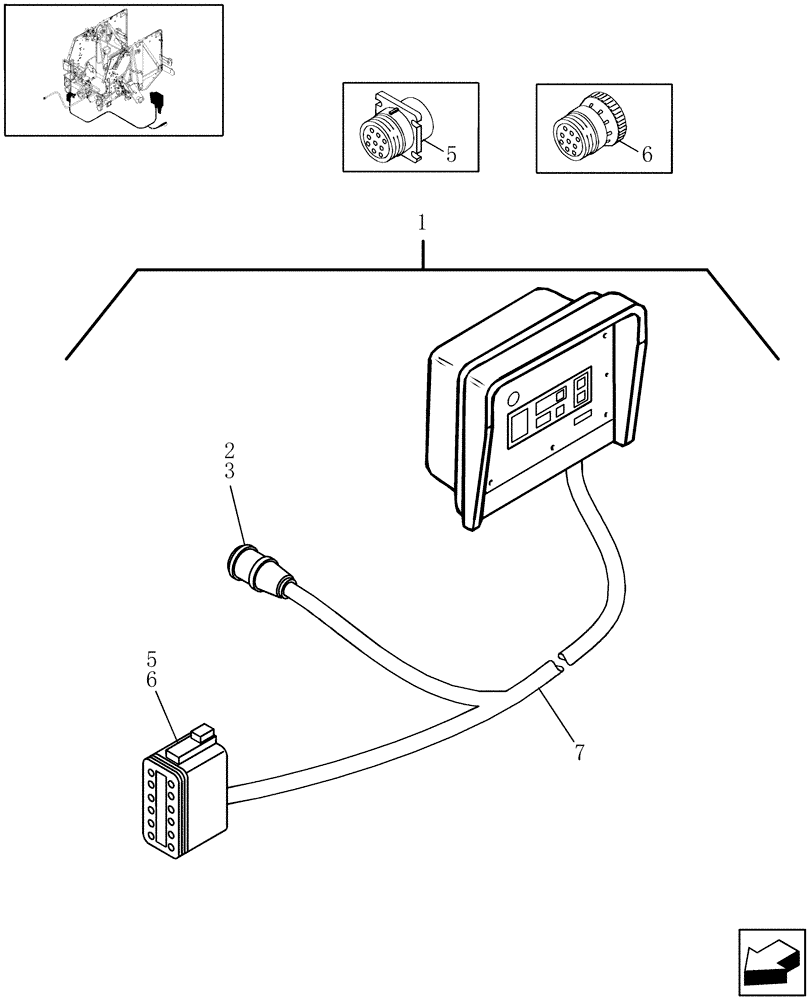

Схема запчастей Case IH RBX463 - (06.36) - ELECTRONIC CONTROL UNIT, ELECTRIC WRAP, EUROPE & R.O.W. (06) - ELECTRICAL SYSTEMS
2
5
7
6
5
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87035275

ECU

Electric Wrap, Europe & R.O.W.

1шт.

Refer to Repair Manual for Service Instructions

1шт.

2

86624245

CONNECTOR, ELEC

CONNECTOR Power

1шт.

3

86624246

CONNECTOR, ELEC

CONNECTOR Cable Clamp

1шт.

4

900401

TERMINAL

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Tractor, DEU DT06-12SA-P012

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Secondary Lock, DEU W12S-P012

1шт.

7

86622164

HARNESS

Wire

1шт.

Refer to Repair Manual for Service Instructions

1шт.

8

86521580

WIRE HARNESS

Power Adapter, Serial Range: 3-Prong-4-Prong

1шт.
